VIEWSONIC

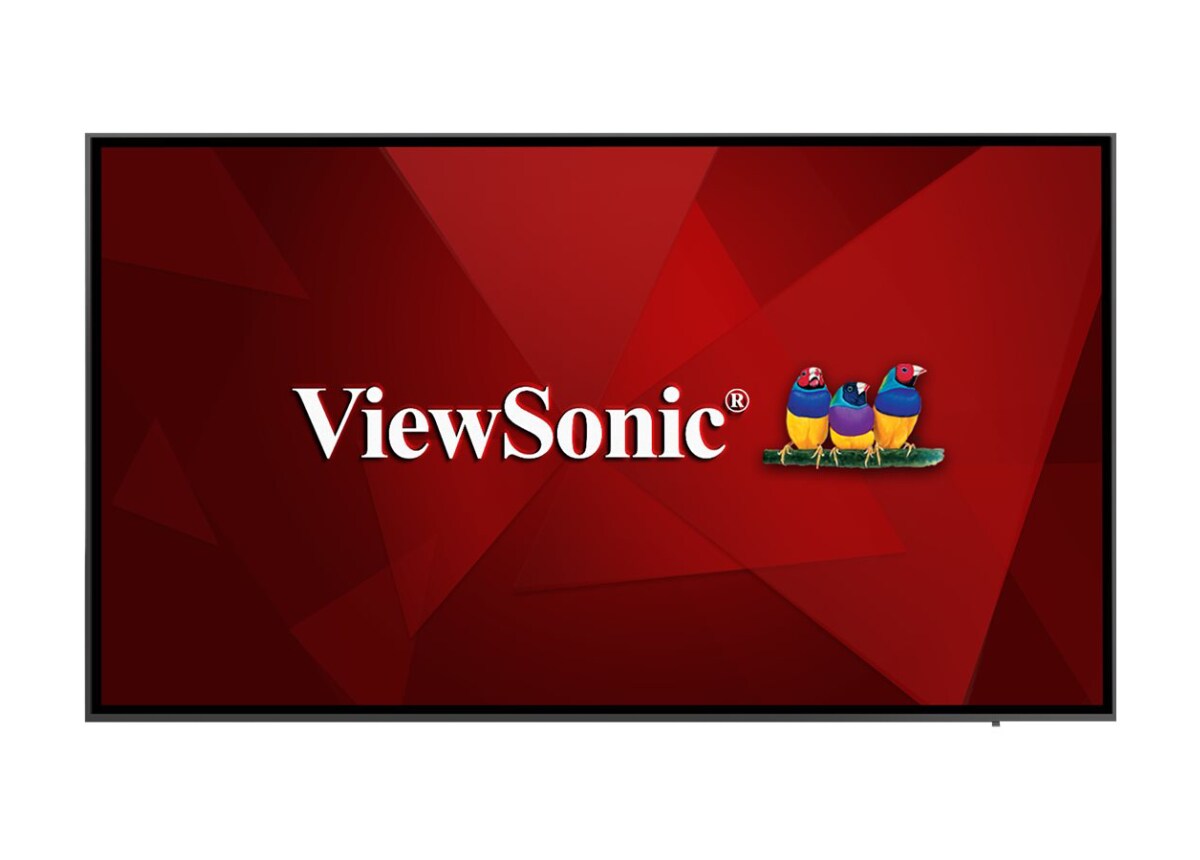

ViewSonic CDE7520-W Digital Signage Display (CDE7520-W)
Item model number: CDE7520-W
- Ultra HD Resolution
- Free ViewBoard Cast Content Sharing Software
- AV Control System Certified
- Powerful All-in-One SoC Platform
- Integrated Content Management System
The ViewSonic® CDE7520-W is a 75" premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 16W speakers, and wireless screen sharing, the CDE7520-W transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE7520-W can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE7520-W is also suitable for a wide array of diverse signage applications.
*Chrome, Android, Windows, Mac OS, and iOS compliant
OVERVIEW | |||
Brand | ViewSonic | Model | CDE7520-W |
Manufacturer | ViewSonic Corporation | ||
PROCESSOR | |||
Cores | Dual-core (2 Core) | Processor Type | Cortex A73 |
CONNECTIVITY | |||
Ethernet | Yes | HDMI | Yes |
HDMI Inputs | 2 | HDMI Outputs | 1 |
Serial | Yes | Total DisplayPorts | 1 |
USB | Yes | USB 2.0 Ports | 2 |
USB 3.0 Ports | 1 | ||
DISPLAY & GRAPHICS | |||
Backlight Technology | Direct LED | Display Resolution | 3840 x 2160 |
Screen Size | 75 inch | ||
POWER | |||
Input Voltage | 120 V AC, 230 V AC | ||
PRODUCT INFORMATION | |||
Product Type | Digital Signage Display | VESA Mount Standard | 400 x 200 |
Wireless LAN | Yes | ||
DIMENSIONS & WEIGHT | |||
Height | 37.60 inch | Weight | 64.60 lb |
Width | 65.83 inch | Depth | 2.76 inch |
CERTIFICATIONS & LISTINGS | |||
ENERGY STAR Certified | Yes | Environmentally Friendly | Yes |
SERVICE & SUPPORT | |||
Limited Warranty | 3 Year |
