Ubiquiti Networks
Ubiquiti NBE-5AC-Gen2 airMAX ac CPE with Dedicated Management Radio (NBE-5AC-GEN2)
$149.99 CAD
/
Shipping calculated at checkout.
Item model number: NBE-5AC-GEN2

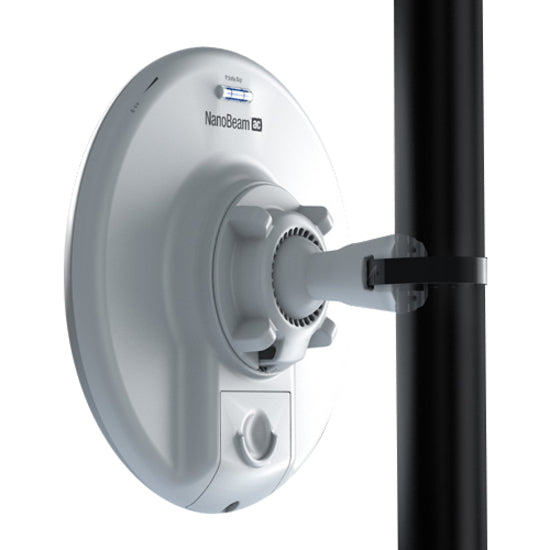

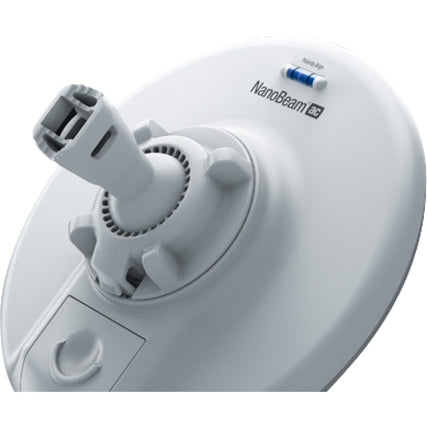

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
Features:
- New antenna
- Improved radio design
- Improved surge protection
- Management WiFi Radio/UNMS mobile app
- AirOS 8
- UNMS mobile app for Android and IOS
Specifications:
| MECHANICAL | |||

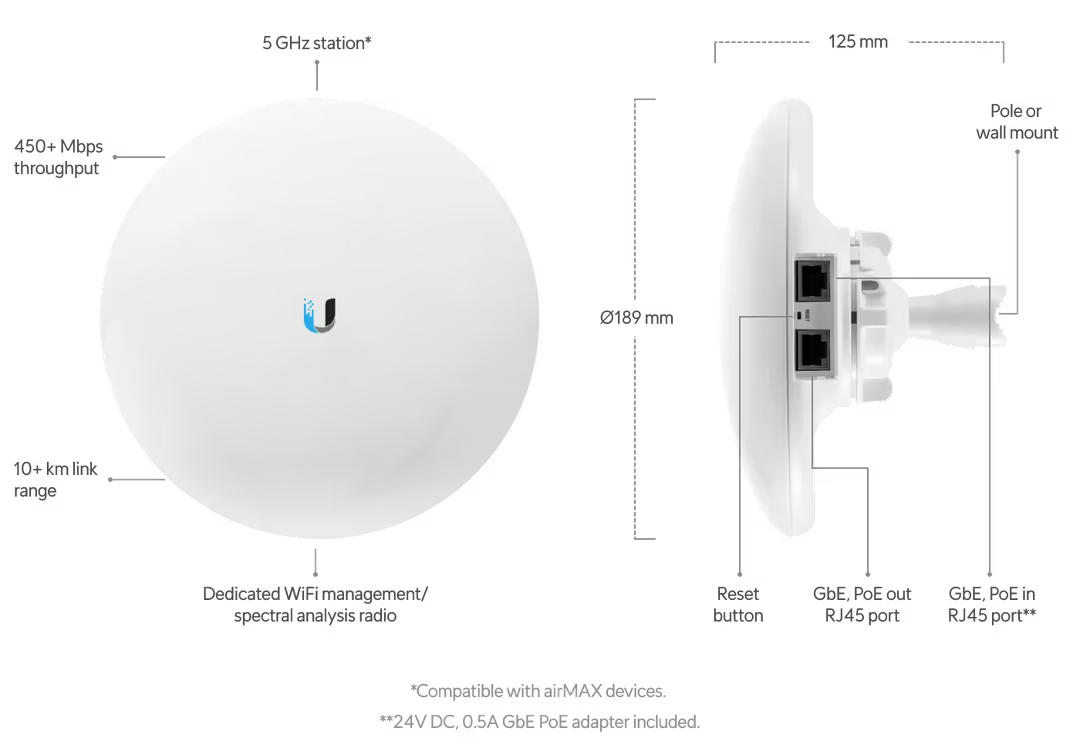

| Dimensions | 189 × 189 × 125 mm (7.44 × 7.44 × 4.92″) | Weight | 530 g (1.17 lb) |

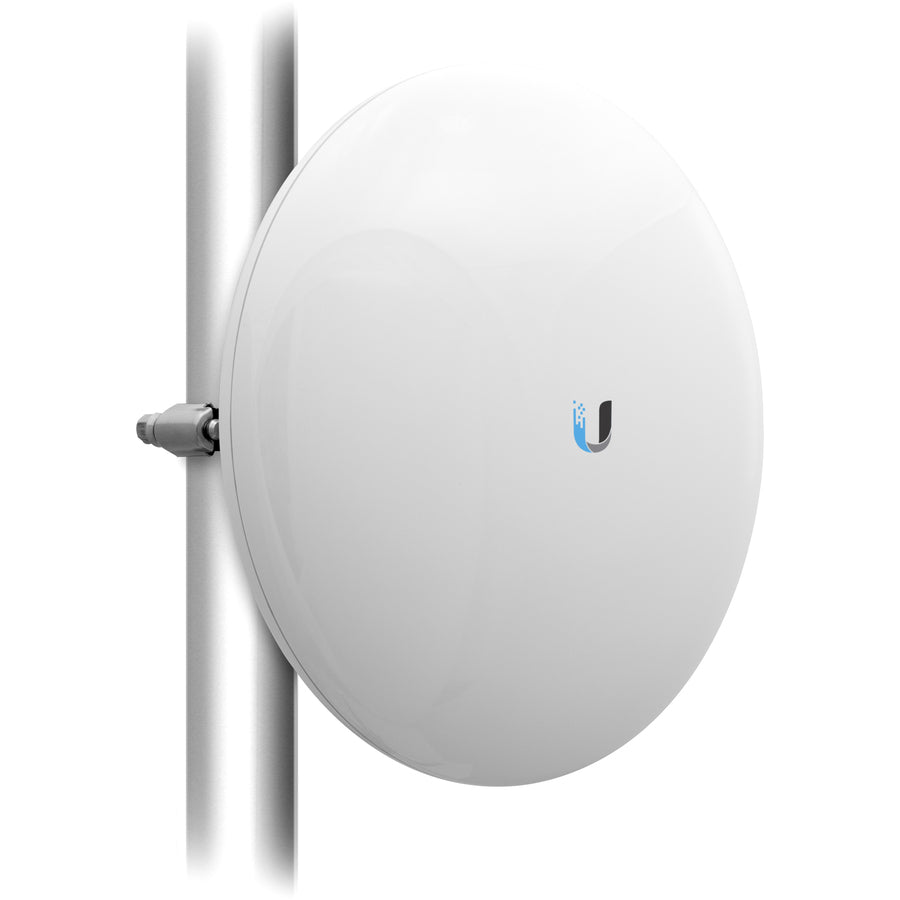

| Enclosure material | UV-stabilized plastic | Mounting | Pole mount kit (Included); Wall mount (Not included) |
| Wind loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) | Wind survivability | 200 km/h (125 mph) |
| HARDWARE | |||
| Networking interface | (2) GbE RJ45 ports | Power method | Passive PoE 2-pair (4,5+; 7,8 return) |
| Power supply | 24 V, 0.5 A gigabit PoE adapter (Included) | Supported voltage range | 20–27 V DC |
| Max. power consumption | 8.5 W | ESD/EMP protection | Air/contact: ± 24 kV |

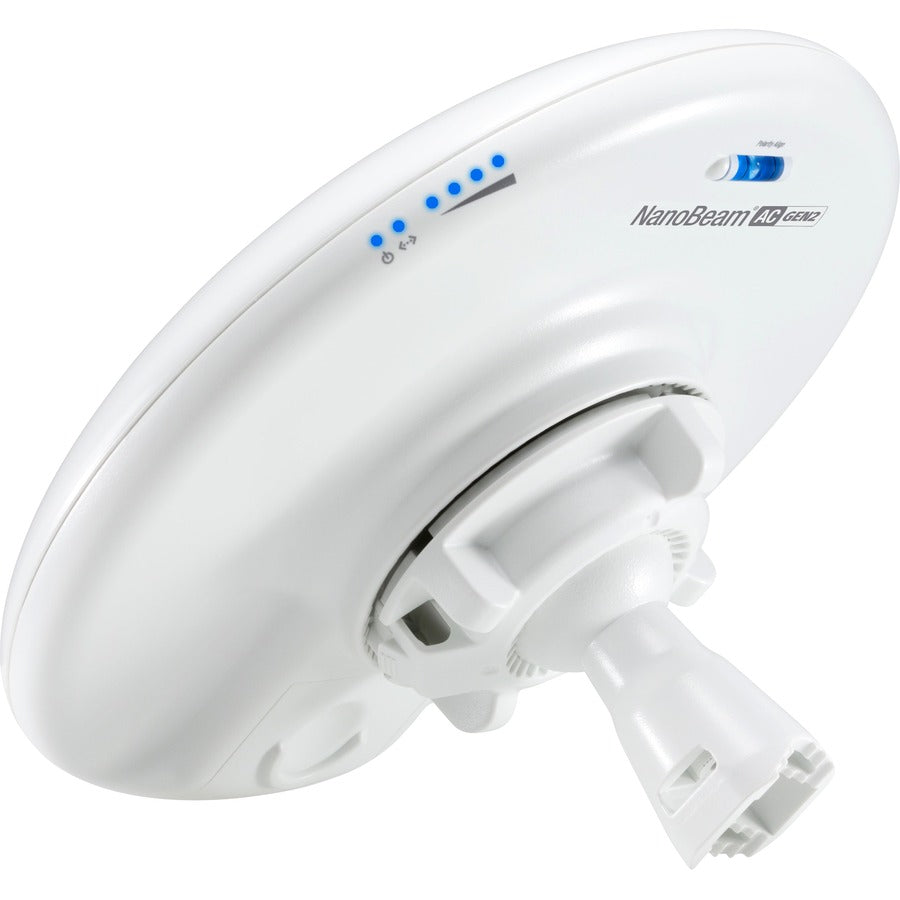

| LEDs | Power, Ethernet, (4) Signal strength | Certifications | CE, FCC, IC |
| Salt fog test | IEC 68-2-11 (ASTM B117); MIL-STD-810 G method 509.5 | Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 | UV test | IEC 68-2-5 at 40 °C (104 °F); ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4; MIL-STD-810 G method 506.5 | Ambient operating temperature | –40 to 80 °C (–40 to 176 °F) |
| Ambient operating humidity | 5–95 % noncondensing | NDAA Compliant | Yes |
| SYSTEM | |||
| Gain | 19 dBi | Max. VSWR | 1.5:1 |
| Polarization | Dual linear | Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz; PtPM Mode: 10/20/30/40 MHz |
| Operating Frequency (Worldwide) | 5150–5875 MHz | U-NII-1 | 5150–5250 MHz |
| U-NII-2A | 5250–5350 MHz | U-NII-2C | 5240–5725 MHz |
| U-NII-3 | 5725–5850 MHz | ||
