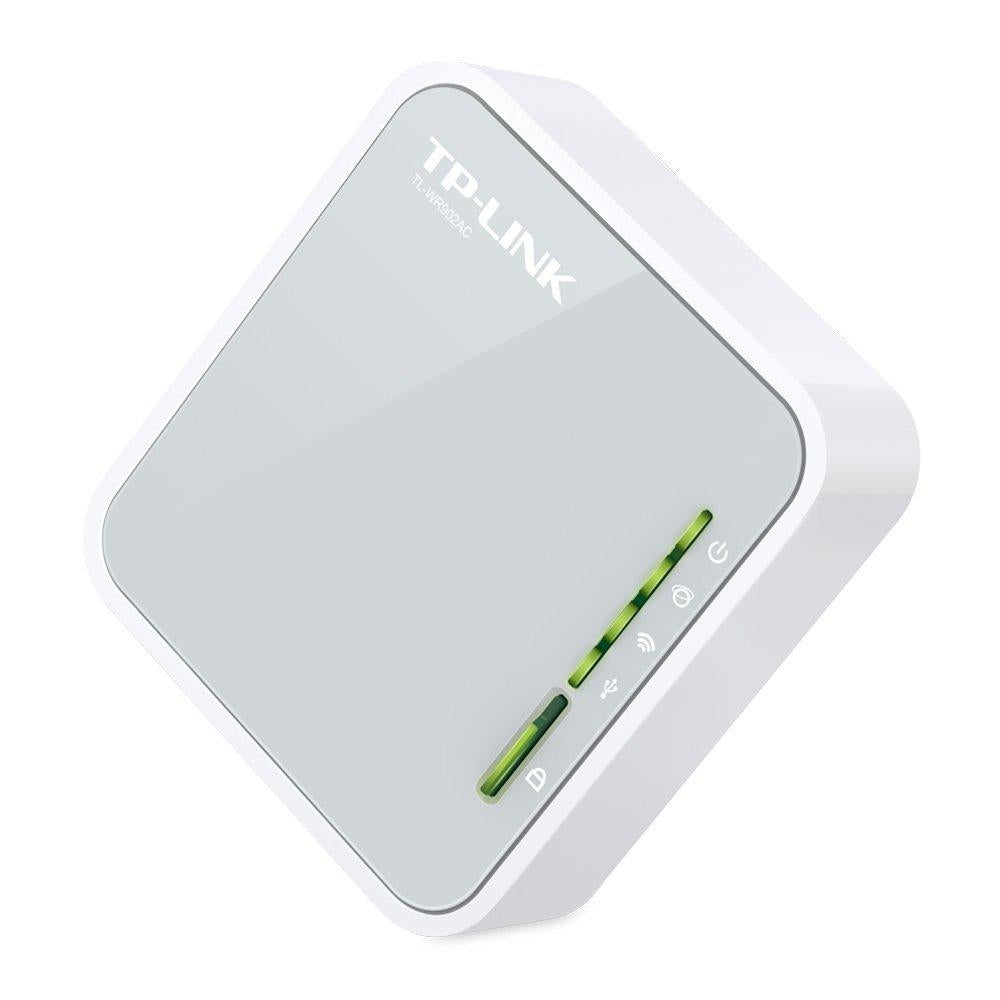

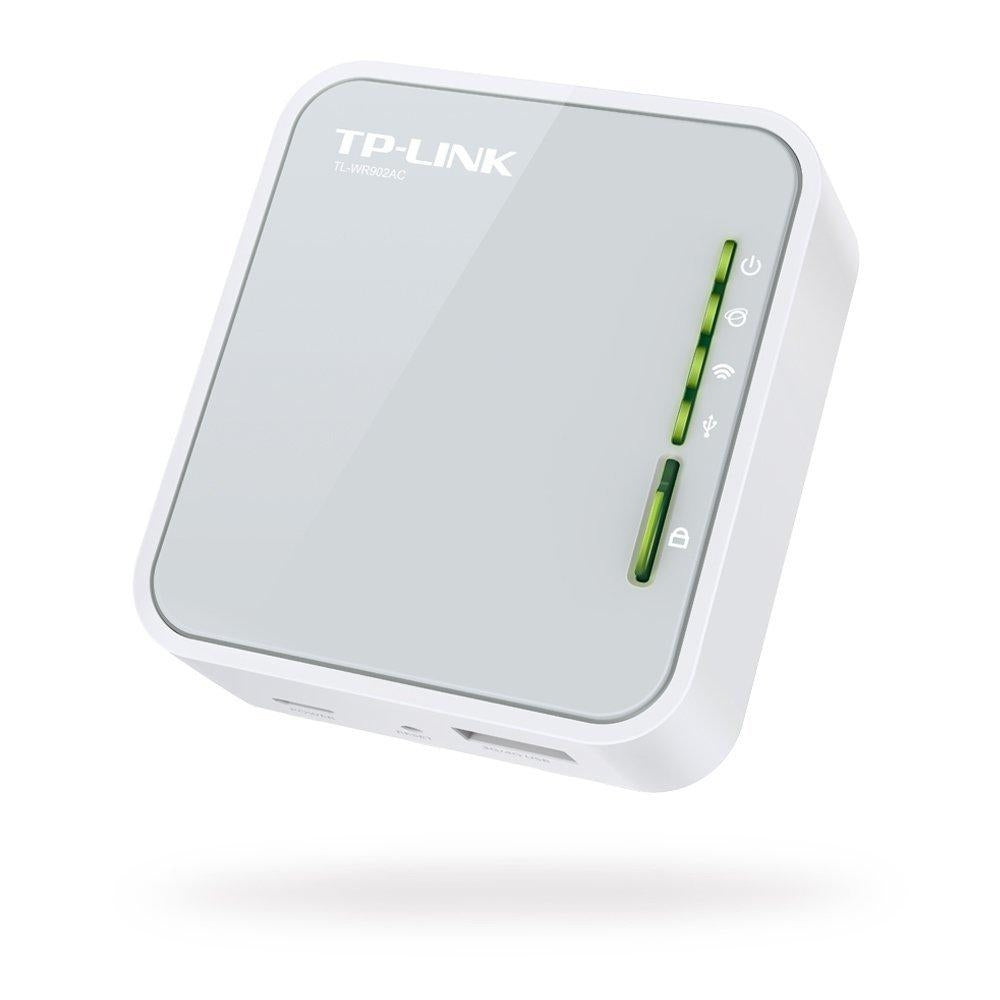

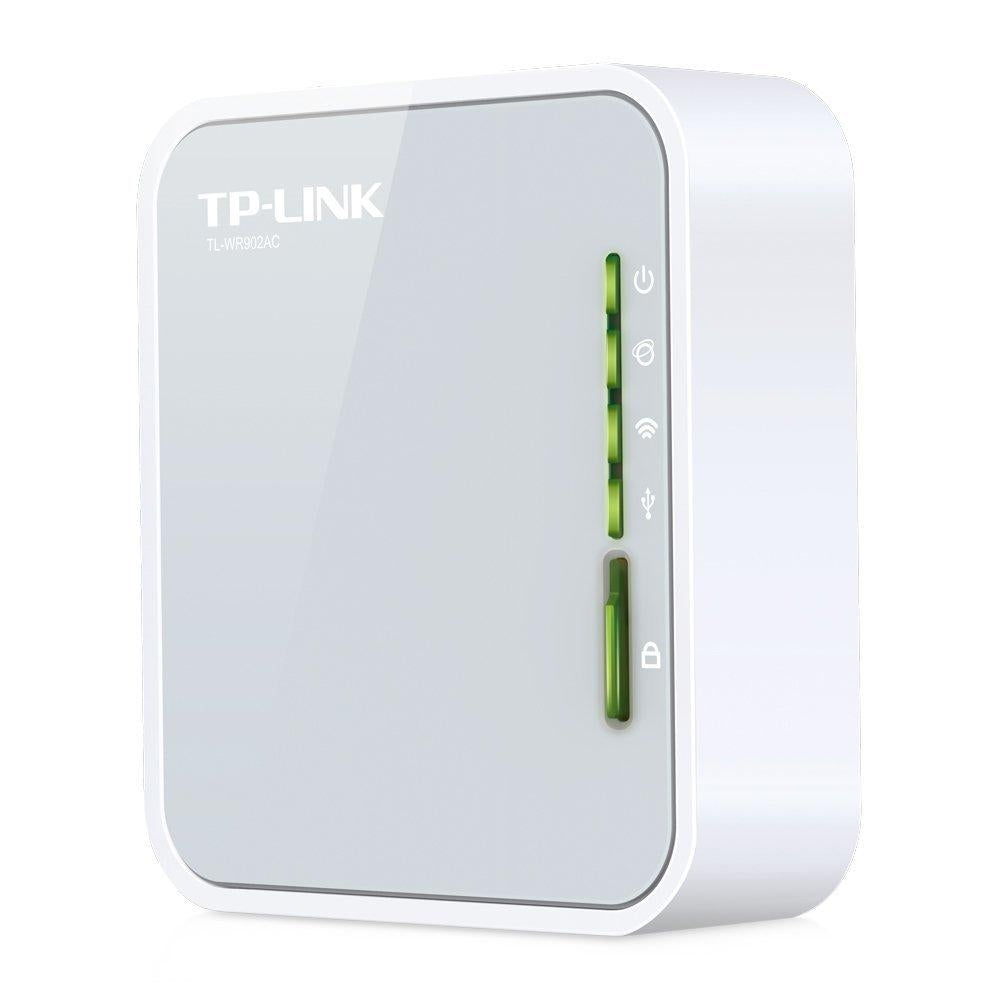

Item model number: TL-WR902AC
  • Travel-Sized Design - Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet, 3G/4G USB modem or WISP
  • Dual Band AC750 Wi-Fi - Strong, fast connection for HD streaming on all your devices
  • One Switch for Multiple Modes - Perfect for Wi-Fi at home, your hotel room or on the road
  • Flexible Power - Micro USB port to an adapter, portable charger or laptop
  • Versatile USB - For file sharing or internet access from a 3G/4G USB modem




WAN connection
DSL WAN No 3G/4G USB modem compatibility Yes
SIM card slot No Ethernet WAN Yes
Wireless LAN features
WLAN data transfer rate (second band) 433 Mbit/s Wi-Fi standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g
Wi-Fi band Dual-band (2.4 GHz / 5 GHz) WLAN data transfer rate (max) 733 Mbit/s
Top Wi-Fi standard IEEE 802.11ac WLAN data transfer rate (first band) 300 Mbit/s
Ethernet LAN features
Cabling technology 10/100Base-T(X) Ethernet LAN Yes
Ethernet LAN interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s

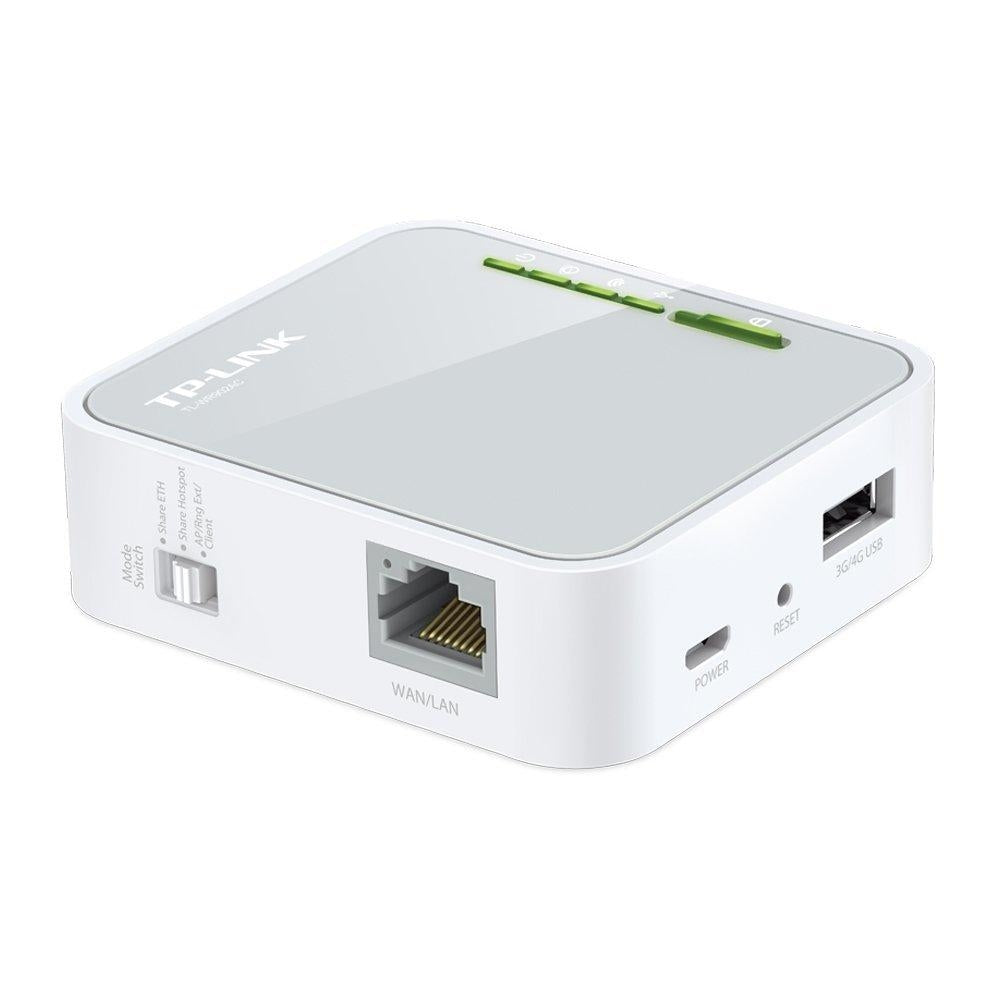

Ports & interfaces
USB port Yes USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 1
Mobile networking
3G Yes 4G Yes
Networking
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u Guest access Yes
Receiver sensitivity 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm
Protocols
Supported network protocols -40 - 70 DHCP client Yes
DMZ support Yes DHCP server Yes
Antenna
Antenna type Internal
Management features
Reset button Yes Quality of Service (QoS) support Yes
Management features
Universal Plug and Play (UPnP) Yes WPS push button Yes
Security
Firewall Yes URL filtering Yes
VPN support PPTP, L2TP, IPSec Filtering Yes
Firewall security SPI Security algorithms 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK,WPS
DoS attack prevention Yes IP address filtering Yes
Design
Product type Portable router Colour of product White
Performance
Memory card slot(s) No
Power
Output current 2 A Output voltage 5 V
Power source type AC
Weight & dimensions
Width 74 mm Height 22 mm
Depth 67 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Certificates
Certification CE, FCC, RoHS
Packaging content
AC adapter included Yes Cables included LAN (RJ-45), USB
Quick start guide Yes
Software
Mac operating systems supported Yes Linux operating systems supported Yes
Mac compatibility Yes Windows operating systems supported Yes
