Item model number: TL-WR802N

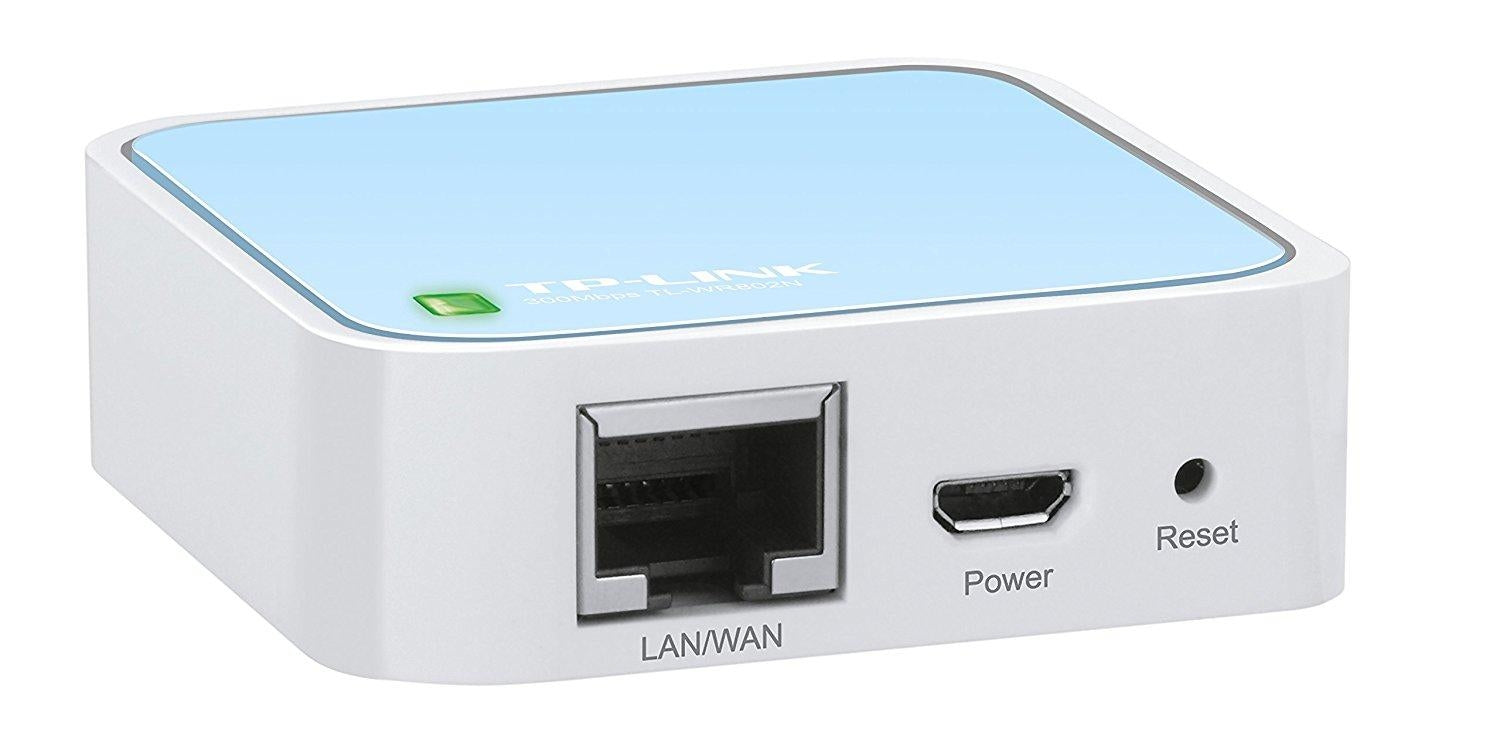

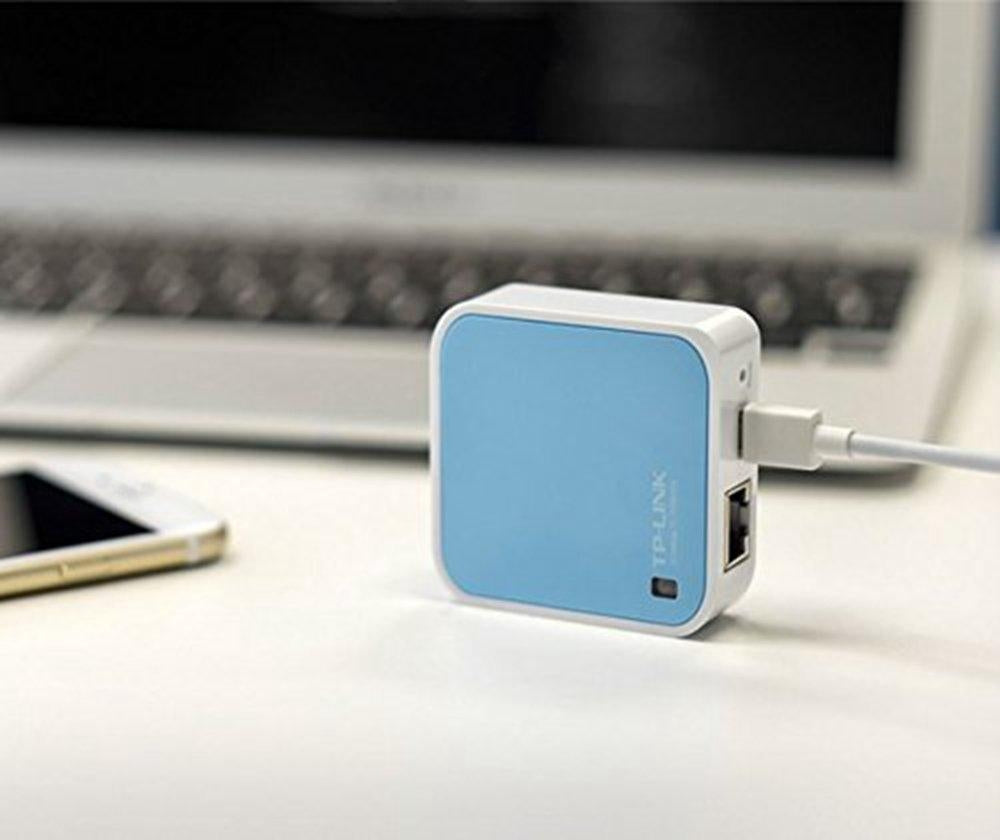

  • Pocket-sized Wireless N router travels effortlessly; Micro-USB port for powering via an external adapter or USB port.
  • 300Mbps Wi-Fi speed on 2.4GHz band for lag-free video streaming and online gaming.
  • Quickly create a secure Wi-Fi hotspot to share with family and friends; Compatible with Chrome cast.
  • Supports Router, AP, Client, Repeater and WISP operation modes; Pre-Encryption function sets initial SSID and password protection.
  • Industry-leading 2-year warranty and unlimited technical support. Technical Support: +1 866 225 8139; Hotline en Français: +1 855 987 5465.




WAN connection
Ethernet WAN Yes
Wireless LAN features
Wi-Fi standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Wi-Fi band Single-band (2.4 GHz)
WLAN data transfer rate (max) 300 Mbit/s Top Wi-Fi standard IEEE 802.11n
Ethernet LAN features
Cabling technology 10/100Base-T(X) Ethernet LAN Yes
Ethernet LAN interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s
Ports & interfaces
USB port Yes Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Mobile networking
3G No 4G No
Networking
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Protocols
DHCP client Yes DMZ support Yes
DHCP server Yes
Antenna
Antenna type Internal
Management features
Web-based management Yes Reset button Yes
Universal Plug and Play (UPnP) Yes
Security
Firewall security DoS, SPI Firewall Yes
MAC address filtering Yes Security algorithms 128-bit WEP,152-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Security
VPN support PPTP, L2TP, IPSec IP address filtering Yes
Design
LED indicators Yes Colour of product Blue, White
On/off switch Yes
Weight & dimensions
Width 57 mm Height 18 mm
Depth 57 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Certificates
Certification CE, FCC, RoHS
Packaging content
Manual Yes
Software
Mac operating systems supported Yes Linux operating systems supported Yes
Windows operating systems supported Windows 2000,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows NT,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Other features
Supported WAN type IP, Static IP, PPPoE, PPTP, L2TP Frequency range 2.4 - 2.4835 GHz
Rack mounting No USB ports quantity 1
WLAN data transfer rates supported 11,54,300 Mbit/s Frequency band 2.4
xDSL connection No Mobile network connection No
