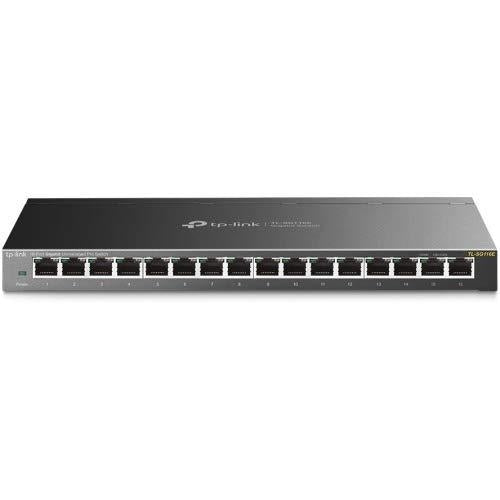

TL-SG116E

Item model number: TL-SG116E
VLSKU: 105254

  • 16 10/100/1000Mbps RJ45 Ports
  • Plug and play, with No configuration required
  • Durable metal casing of superior quality and Professional appearance
  • Intelligent management via a web user interface and downloadable Utility
  • Green technology reduces power consumption




Management Features
Quality of Service (QoS) support Yes Switch type Unmanaged
Ports & interfaces
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T Basic switching RJ-45 Ethernet ports quantity 16
Gigabit Ethernet (copper) ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking
Cable length detection Yes Full duplex Yes
Port mirroring Yes Auto MDI/MDI-X Yes
Network standard IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u Flow control support Yes
Broadcast storm control Yes Link aggregation Yes
10G support No Cable types supported Cat3,Cat4,Cat5,Cat5e,Cat6
Rate limiting Yes
Data Transmission
Number of queues 4 Jumbo Frames support Yes
Store-and-forward Yes Jumbo frames 9000
Switching capacity 32 Gbit/s MAC address table 8000 entries
Forwarding rate 23.81 Mpps
Virtual LAN features
VLAN support Yes Tagged VLAN Yes
Number of VLANs 32
Virtual LAN features
Protocol-based VLAN Yes
Security
Loop protection Yes IGMP snooping Yes
Design
Wall mountable Yes Certification FCC, CE, RoHS
Rack mounting No Product colour Black
Housing material Metal LED indicators Yes
Performance
Plug and Play Yes Auto-negotiation Yes
Energy Management
Power consumption (max) 9.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Support No
Operational Conditions
Operating relative humidity range 10 - 90% Storage relative humidity range 5 - 90%
Storage temperature range (T-T) -40 - 70 °C Operating temperature range (T-T) 0 - 40 °C
Weight & Dimensions
Height 25.4 mm Width 286 mm
Depth 111.7 mm
Packaging Content
Cables included AC Rubber feet Yes
AC adapter bundled Yes Quick start guide Yes
