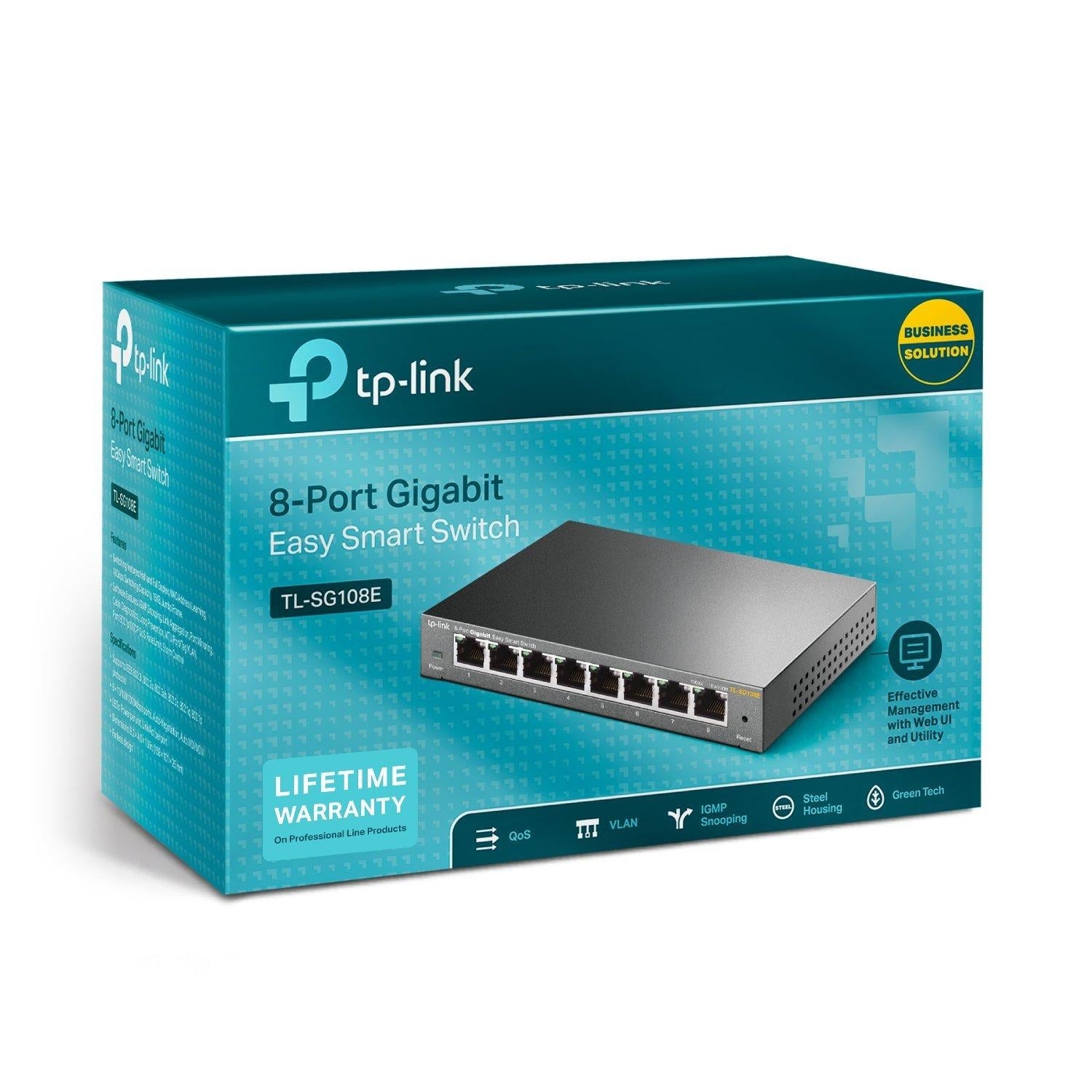

Item model number: TL-SG108E
  • 8 10/100/1000Mbps RJ45 ports provide instant large file transfers.
  • Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility; Abundant VLAN features improve network security.
  • Port and Tag-based QoS enable smooth running of latency-sensitive applications; IGMP Snooping optimizes multicast applications.
  • Effective network monitoring via Port Mirroring, Loop Prevention, and Cable Diagnostics.
  • Industry-leading 5-year warranty and unlimited technical support. Technical Support: +1 866 225 8139; Hotline en Français: +1 855 987 5465.




Management features
Quality of Service (QoS) support Yes Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 8
Networking
VLAN support Yes Rate limiting Yes
Broadcast storm control Yes Networking standards IEEE 802.1ab,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Port mirroring Yes Auto MDI/MDI-X Yes
Link aggregation Yes
Data transmission
Throughput 11.9 Mpps Number of queues 4
Store-and-forward Yes MAC address table 8000 entries
Switching capacity 16 Gbit/s Number of VLANs 32
Number of multicast groups filtered 128
Data transmission
Jumbo frames support Yes
Security
IGMP snooping Yes
Design
Certification FCC, CE, RoHS LED indicators Yes
Colour of product Black
Performance
Packet buffer memory 2 MB
Power
AC input frequency 50/60 AC input voltage 100-240
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 158 mm Height 25 mm
Depth 101 mm
Packaging content
Cables included AC Quick start guide Yes
