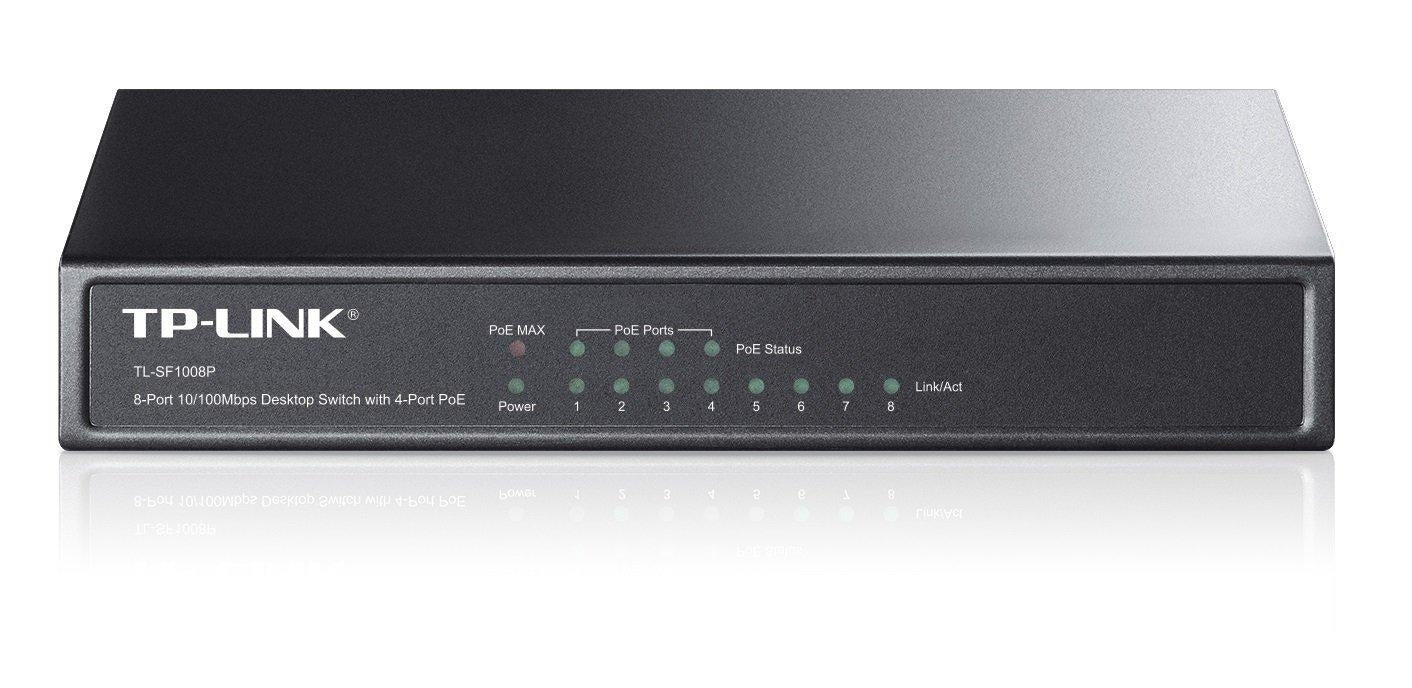

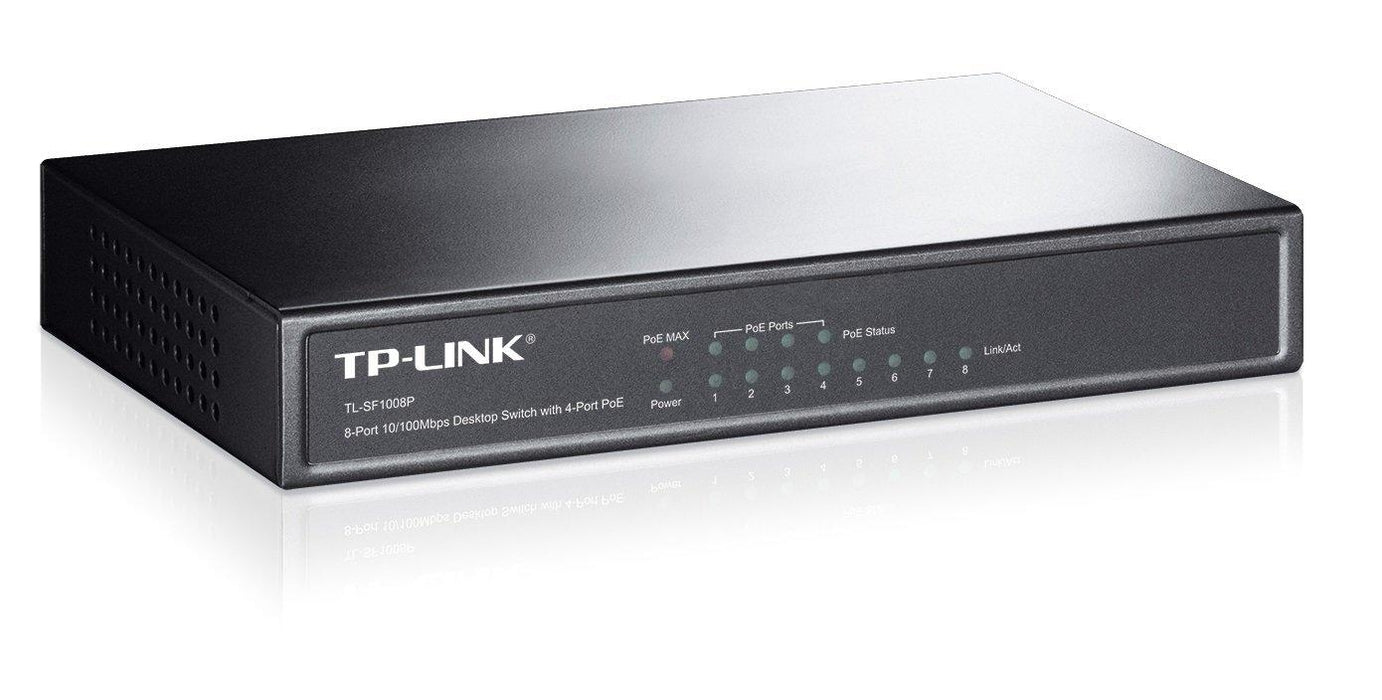

Item model number: TL-SF1008P
  • Supports PoE power up to 15.4W for each PoE port Supports PoE power up to 53W for all PoE ports
  • Standards and Protocols: IEEE802.3, 802.3u, 802.3x, 802.3af, CSMA/CD,

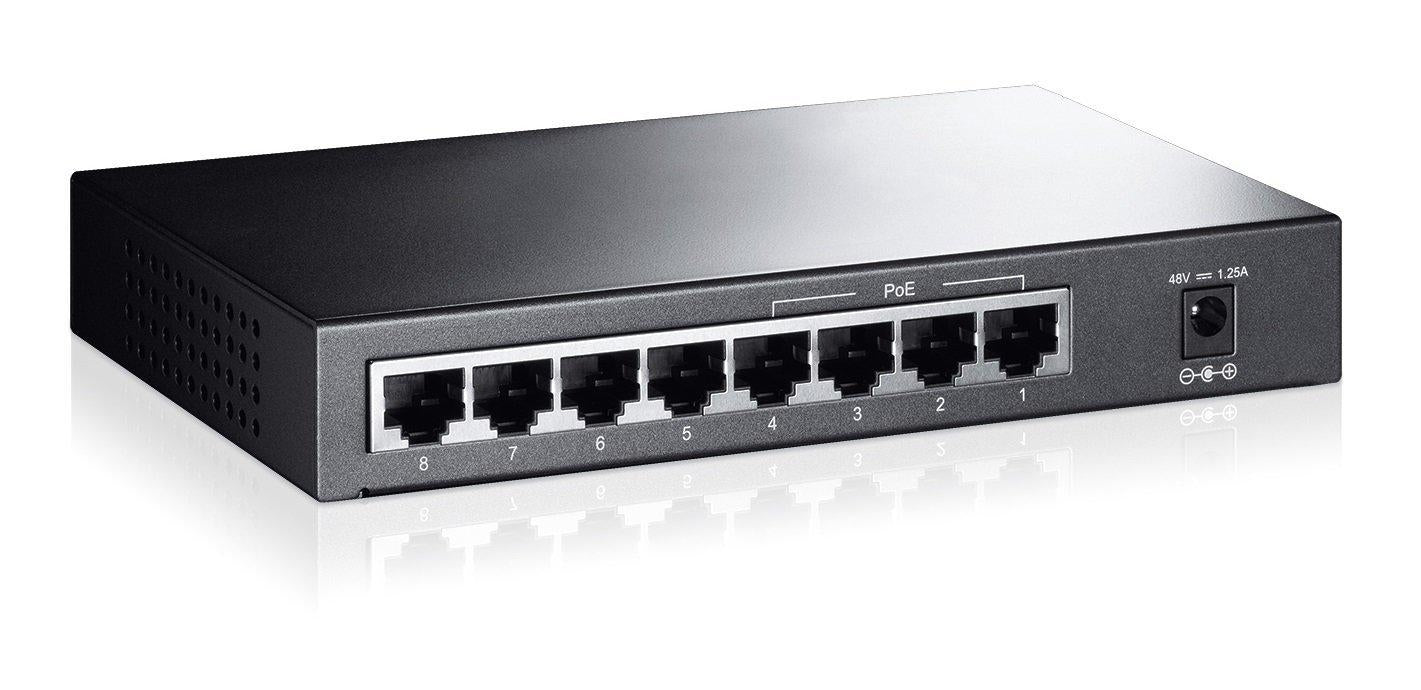

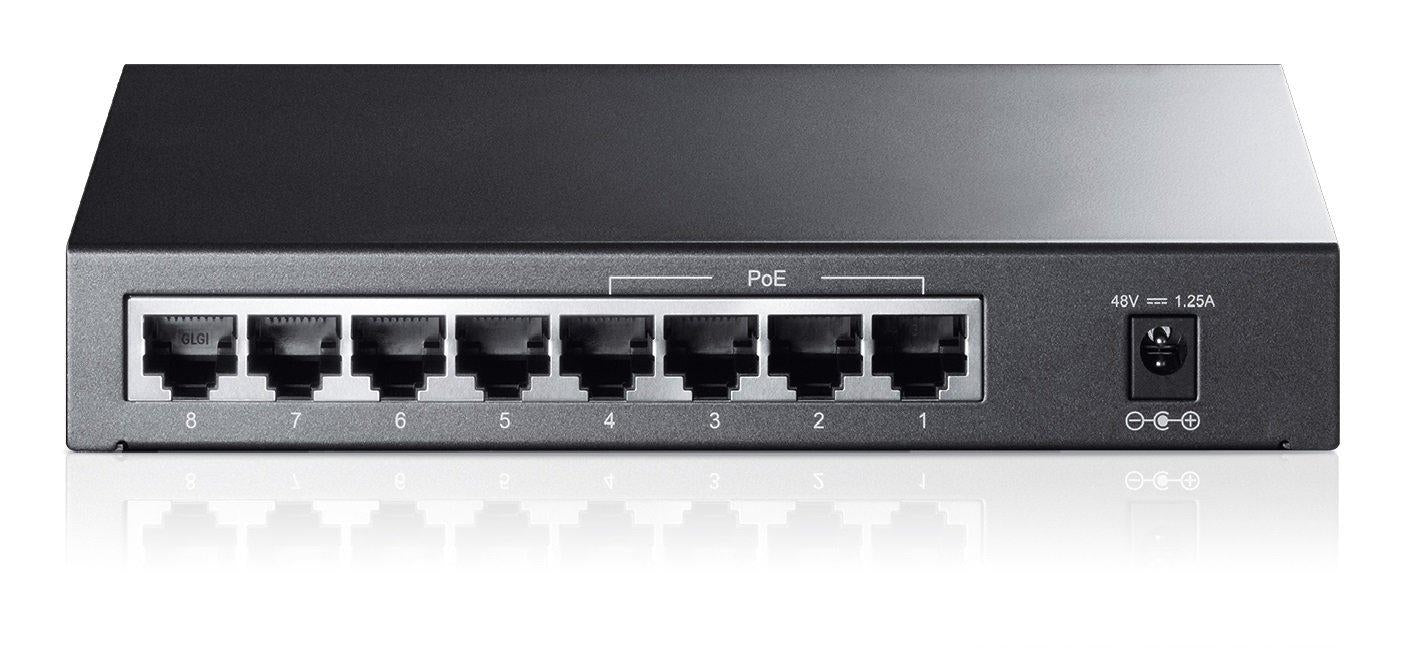

  • TCP/IP Ports: 8x 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto MDI/MDIX
  • Basic Function: Compatible with IEEE 802.3af compliant PDs Port Priority Function
  • Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.;3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode;Backbound Bandwidth: 1.6Gbps MAC Address Table: 1k Forwarding Rate: 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port;Industry-leading 5-year warranty and unlimited technical support. Technical Support: +1 866 225 8139; Hotline en Français: +1 855 987 5465.;




Management features
Switch type Unmanaged network switch
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Networking
Full duplex Yes Flow control support Yes
Networking standards IEEE 802.3 Auto MDI/MDI-X Yes
Data transmission
Maximum data transfer rate 0.1 Gbit/s Store-and-forward Yes
MAC address table 1000 entries
Protocols
Supported network protocols CSMA/CD, TCP/IP, PPF
Design
Stackable No Colour of product Black
Certification FCC, CE
Power
Power connector DC-in jack Power consumption (typical) 53 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Other features
Connectivity LEDs Yes Power supply type 48VDC / 1.25A
Connectivity technology Wired Dimensions (WxDxH) 171 x 98 x 27 mm
Dimensions (W x D x H) (imperial) 170.2 x 99.1 x 27.9 mm (6.7 x 3.9 x 1.1") Network cabling Cat 3/4/5/5.5e
Bandwidth 1.6 Gbit/s
