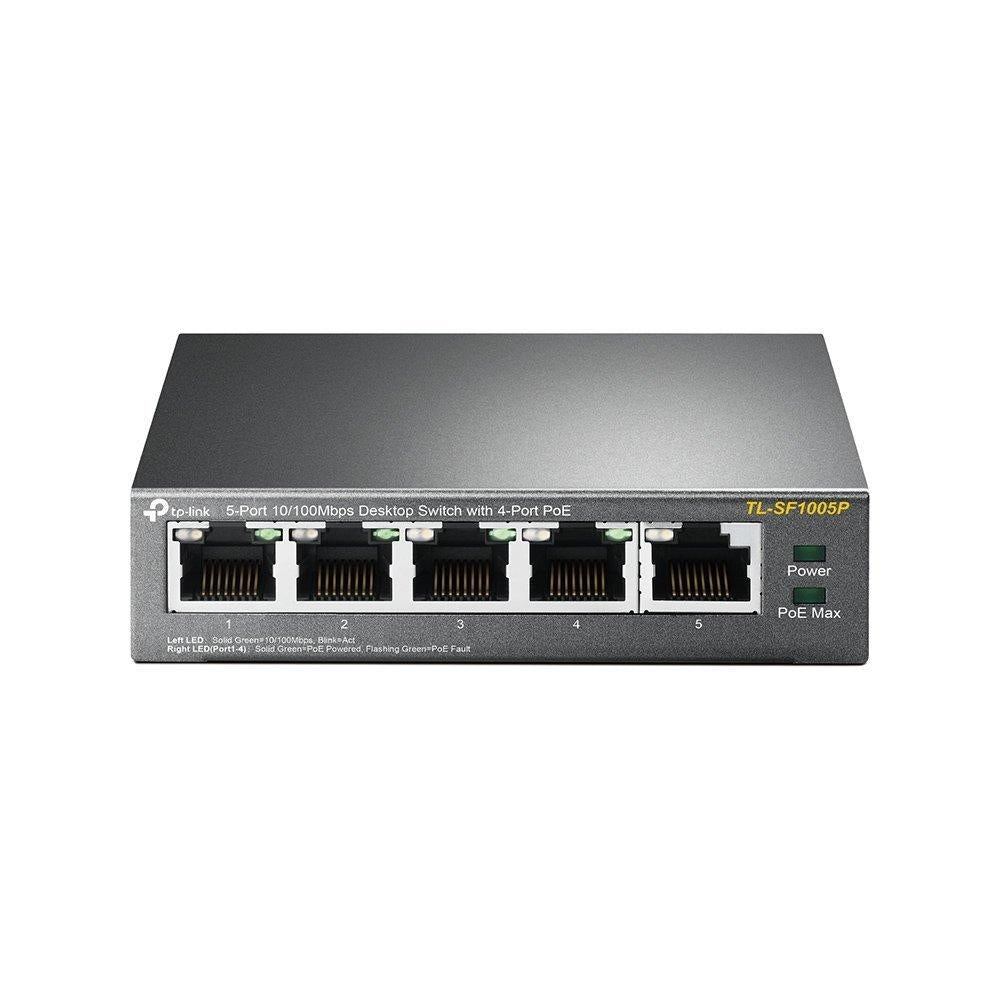

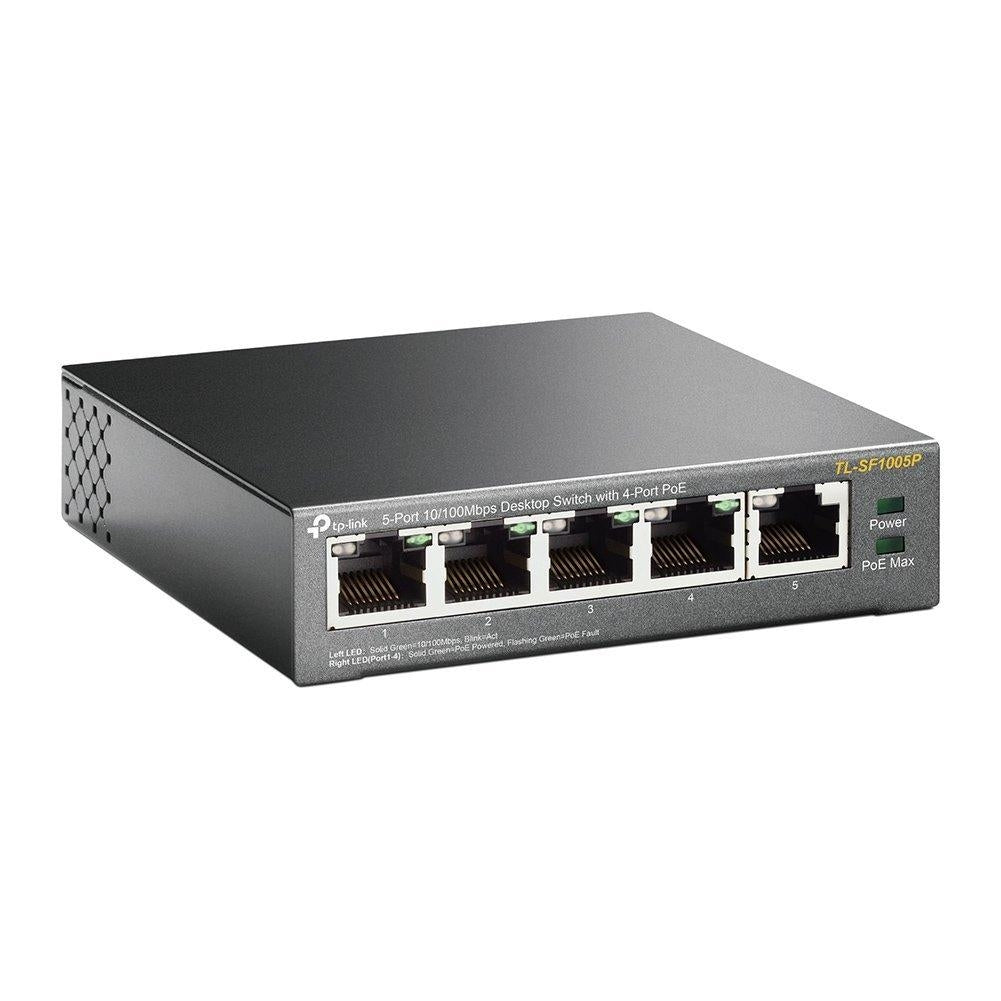

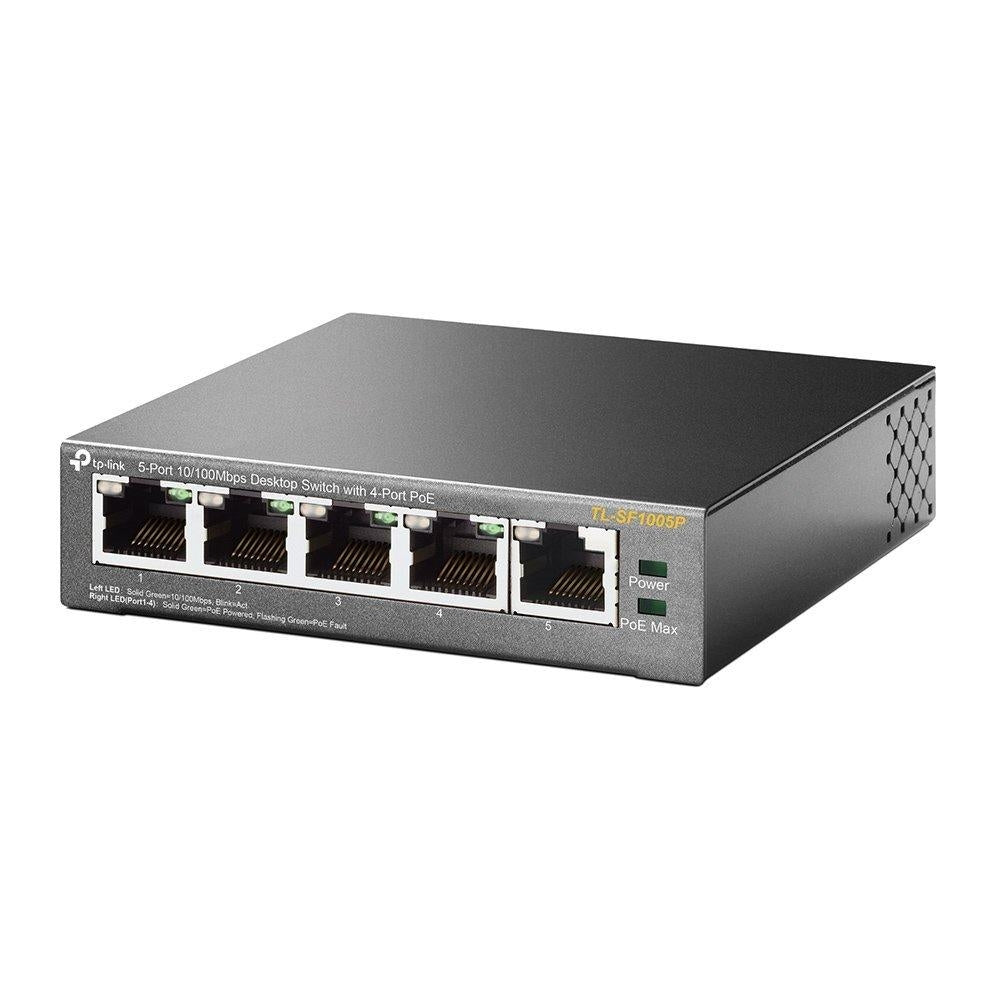

Item model number: TL-SF1005P
  • 5 10/100mbps rj45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af Compliant PDs, expands home and office network
  • Supports PoE power up to 15.4w For each PoE port
  • Supports PoE power up to 58w for all PoE ports




Management features
Switch type Unmanaged
Ports & interfaces
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 5
Networking
Full duplex Yes 10G support No
Flow control support Yes Networking standards IEEE 802.3af,IEEE 802.3x
MAC address auto-aging supported Yes MAC address auto-learning supported Yes
Auto MDI/MDI-X Yes Cable types supported Cat3,Cat4,Cat5,Cat5e
Data transmission
Store-and-forward Yes MAC address table 2000 entries
Switching capacity 1 Gbit/s
Design
Colour of product Black LED indicators Yes
Certification FCC, CE, RoHS
Performance
Maximum cable length 100 m Auto-negotiation Yes
Power
Output current 1.25 A Output voltage 48 V
Power supply included Yes Power consumption (max) 63.51 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 4 Total Power over Ethernet (PoE) budget 58 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 99.8 mm Height 25 mm
Depth 98 mm
Packaging data
Package type Box
Packaging content
AC adapter included Yes User guide Yes
