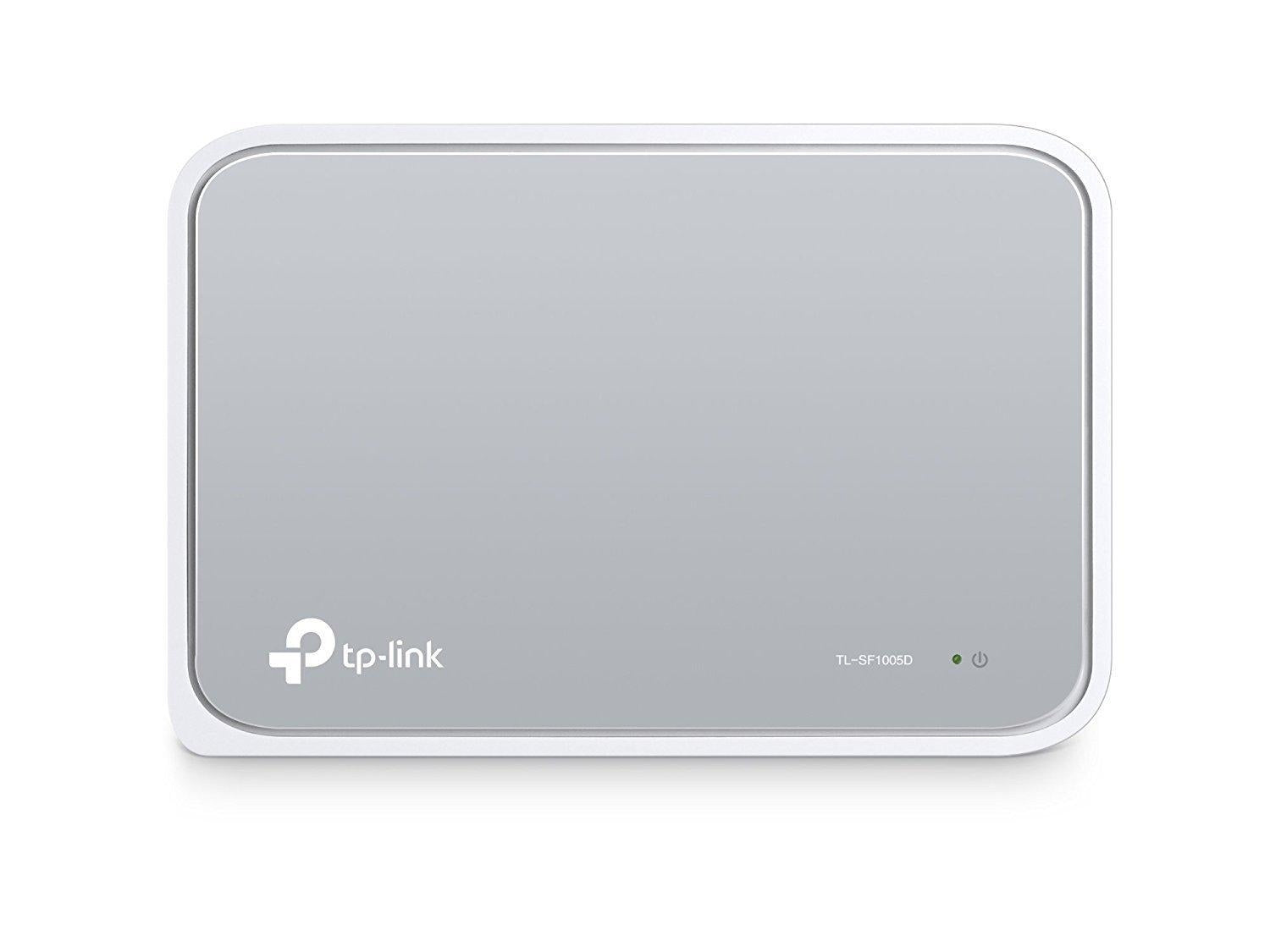

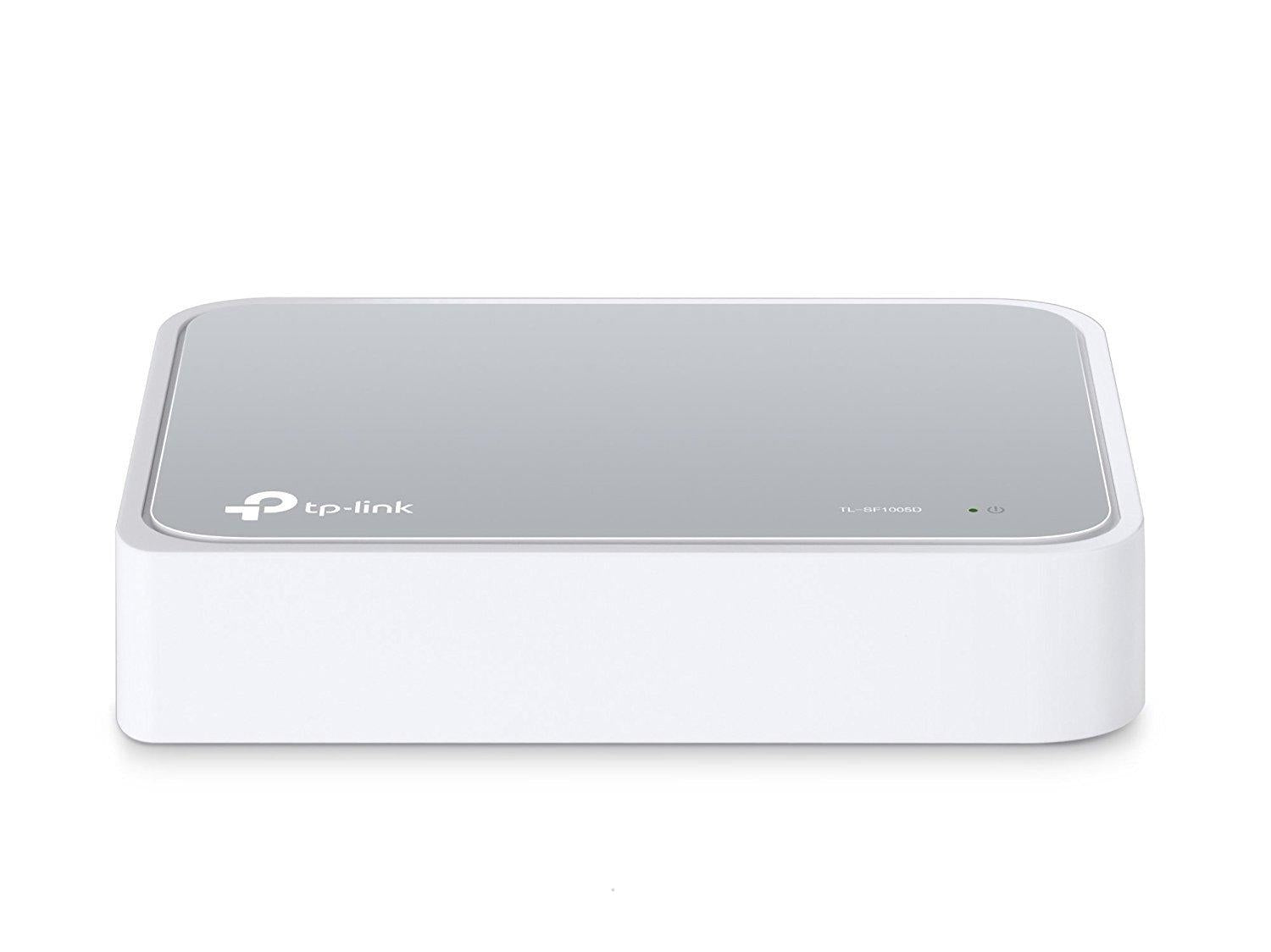

Item model number: TL-SF1005D

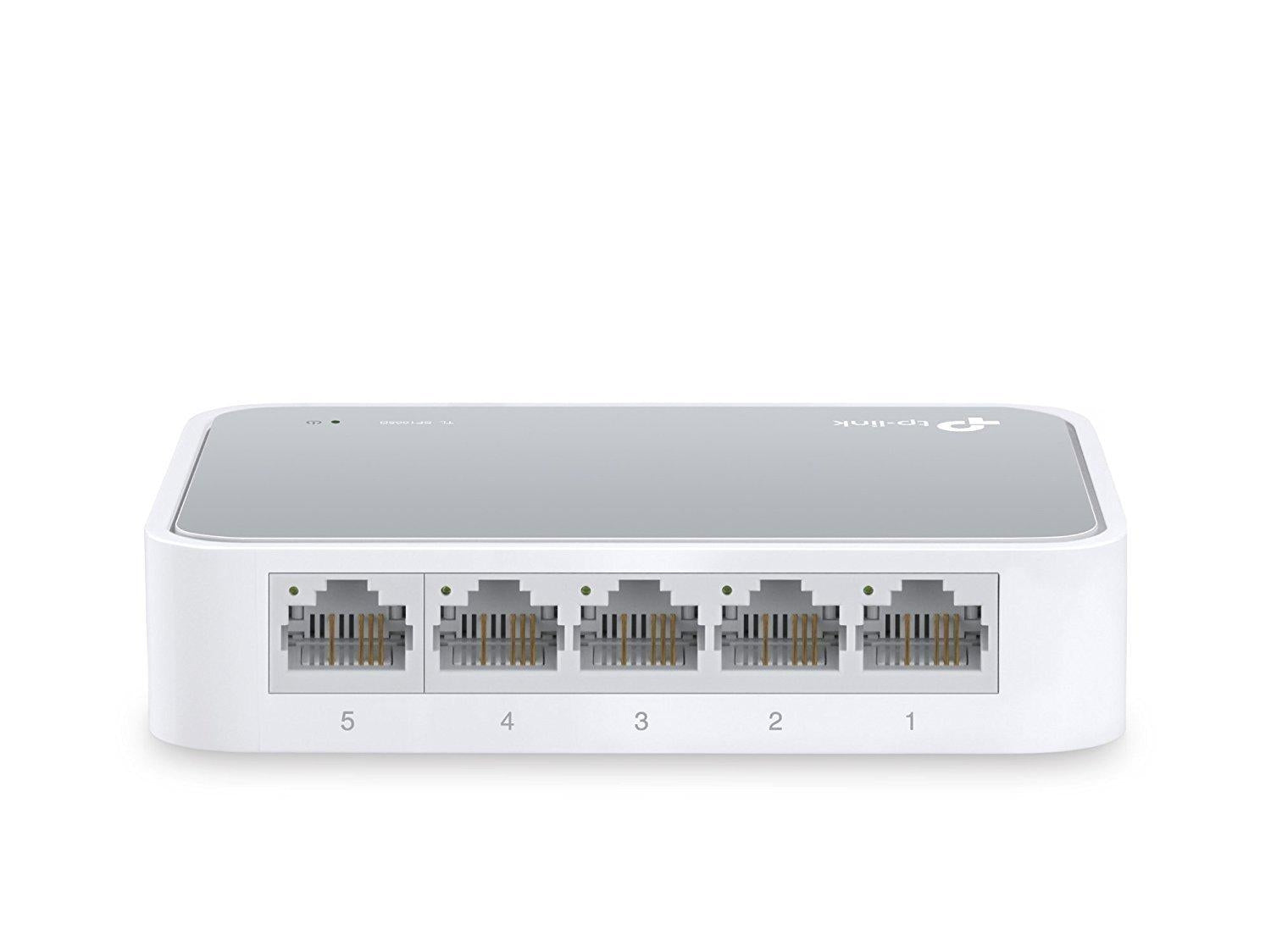

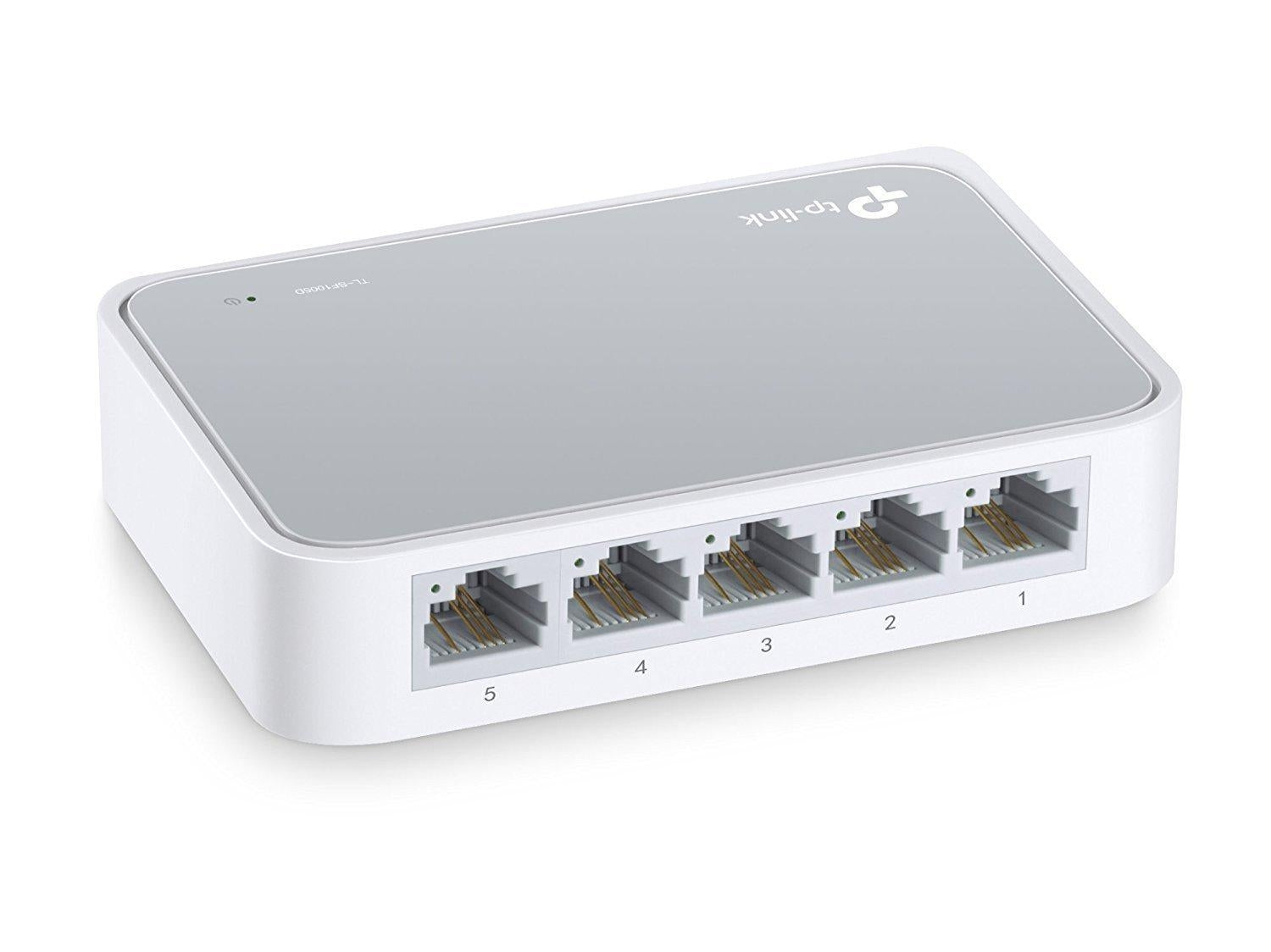

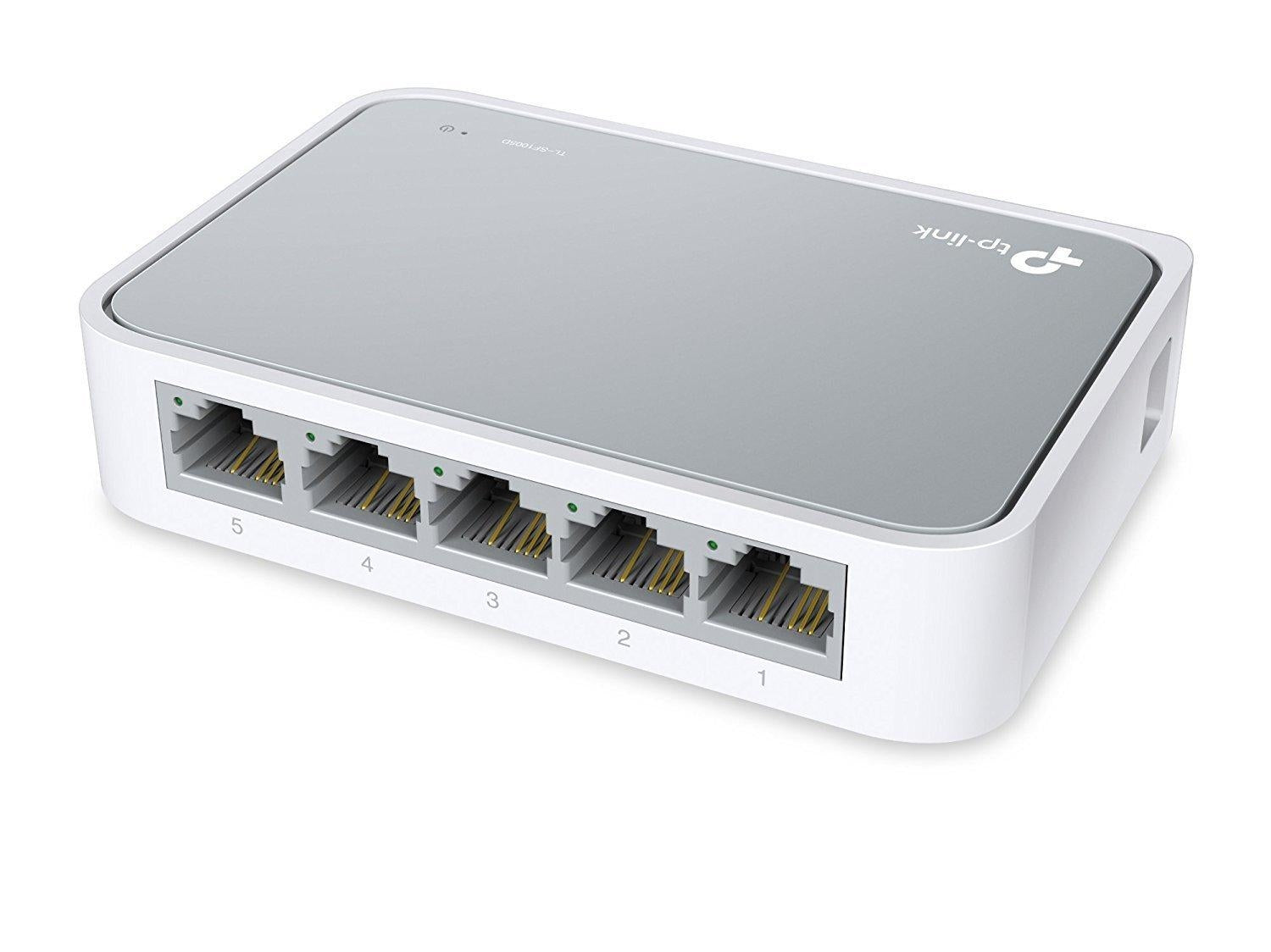

  • 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.
  • IEEE 802.3x flow control provides reliable data transfer.
  • Plug and play no configuration required; Fanless design ensures quiet operation. External power adapter, plastic case.
  • Energy efficient technology which saves up to 60% lower in power consumption.
  • Industry-leading 2-year warranty and unlimited technical support. Technical Support: +1 866 225 8139; Hotline en Français: +1 855 987 5465.




Management features
Switch type Unmanaged network switch
Ports & interfaces
Copper ethernet cabling technology 100BASE-TX,10BASE-T Basic switching RJ-45 Ethernet ports quantity 5
Networking
Full duplex Yes Flow control support Yes
Networking standards IEEE 802.3u,IEEE 802.3x
Data transmission
Maximum data transfer rate 0.1 Gbit/s Supported data transfer rates 10/100 Mbps
Store-and-forward Yes MAC address table 1000 entries
Switching capacity 1 Gbit/s
Protocols
Supported network protocols CSMA/CD, TCP/IP
Design
Certification FCC, CE Rack mounting No
Colour of product White Stackable No
Power
Power connector DC-in jack Power consumption (typical) 3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 95% Storage temperature (T-T) -40 - 70 °C
Other features
Connectivity LEDs Yes Dimensions (WxDxH) 140 x 87 x 27.5 mm
