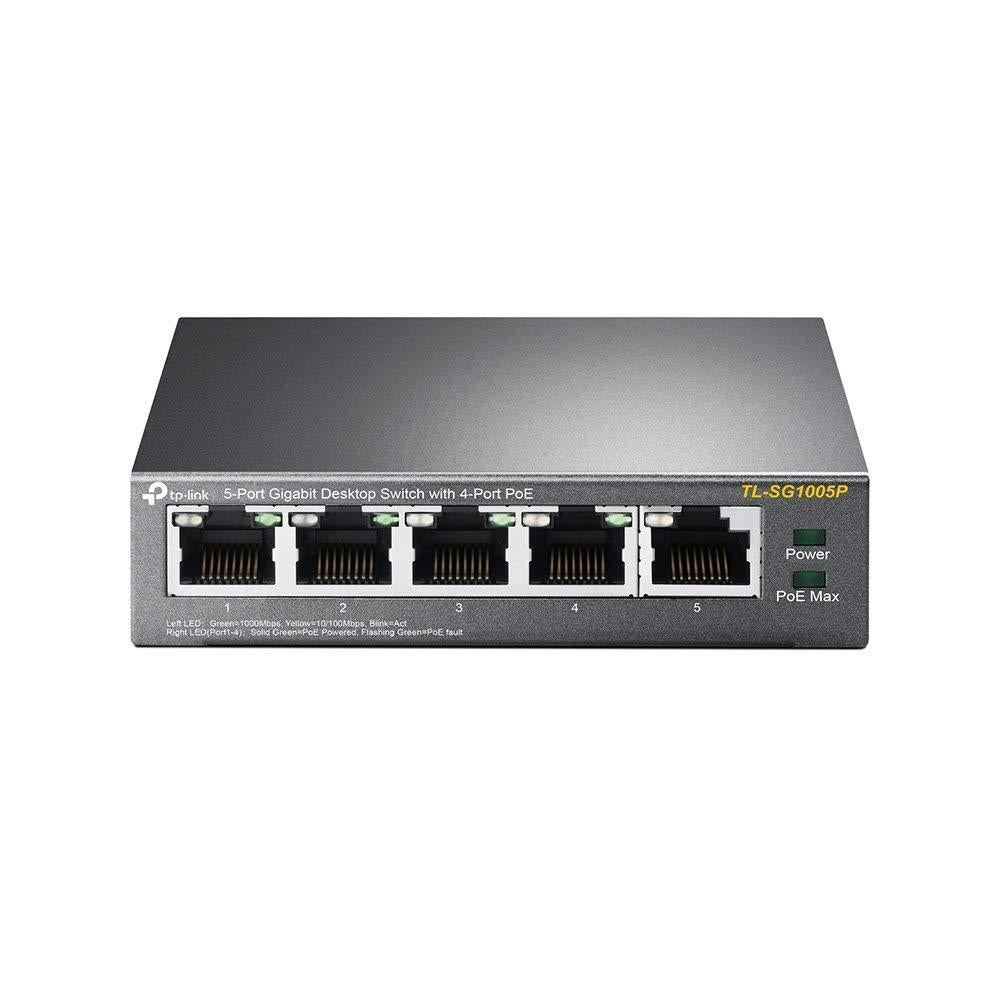

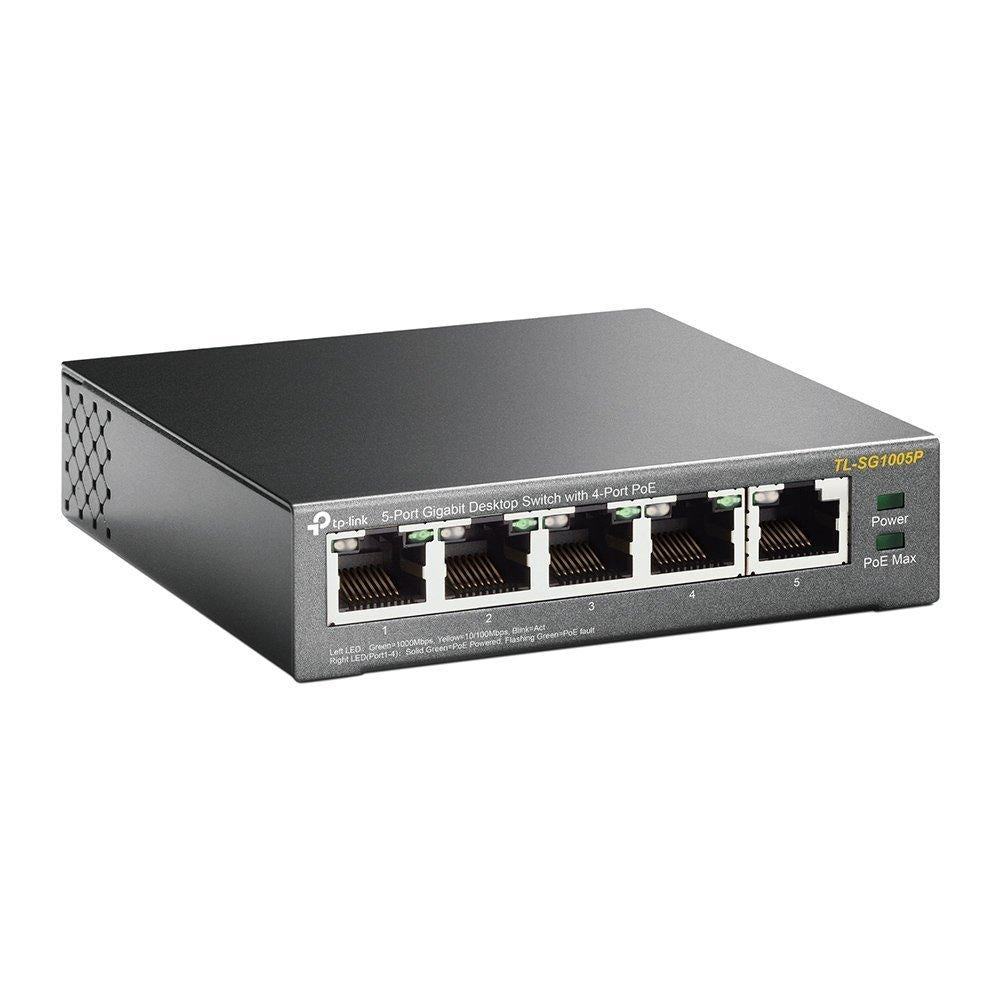

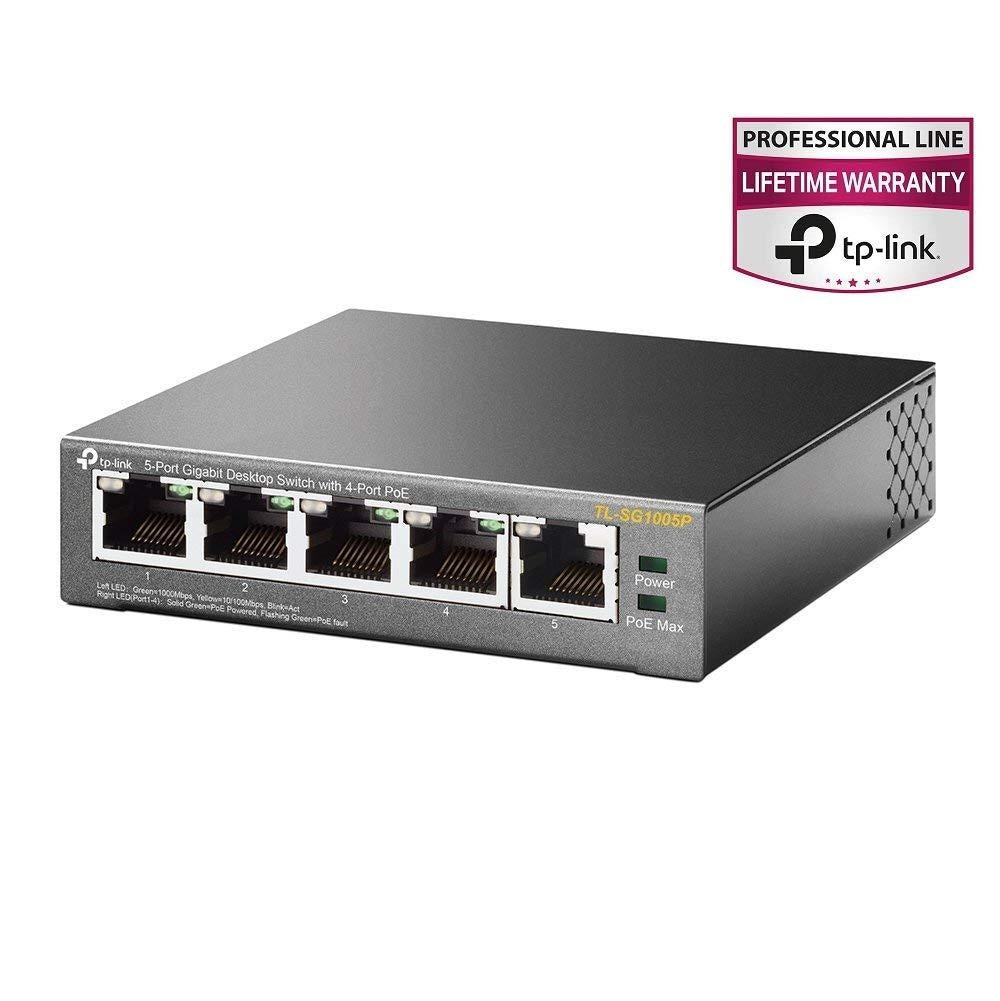

TP-Link Networking Device TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W PoE PS

$69.99 CAD $69.98 CAD Save 0%
Shipping calculated at checkout.
Item model number: TL-SG1005P
VLSKU: 105261
  • 5-Gigabit ports with auto-negotiation sensing the link speed of a network device per port
  • Ideal for small installations of 4 PoE devices (IP Phone, Wired surveillance camera, Wireless Access Point)
  • Max Wattage w/PoE with devices connected: 55w
  • Plug-and-play, simple set up with no software or configuration needed
  • Limited Lifetime Warranty and 24/7 Tech Support

Management features
Quality of Service (QoS) support Yes Switch type Unmanaged
Ports & interfaces
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Auto MDI/MDI-X Yes MAC address auto-learning supported Yes
MAC address auto-aging supported Yes Flow control support Yes
Networking standards IEEE 802.1p,IEEE 802.3af,IEEE 802.3x 10G support No
Cable types supported Cat3,Cat4,Cat5,Cat5e,Cat6
Data transmission
Store-and-forward Yes Address table size 2000 entries
Switching capacity 10 Gbit/s
IGMP snooping Yes
Product colour Black
LED indicators Yes
Maximum cable length 100 m
Power consumption (max) 63.31 W Output voltages 48 V
Output current 1.25 A Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 4 Total Power over Ethernet (PoE) budget 56 W
Power supply PoE Yes
Operational conditions
Storage humidity 5 - 90% Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Height 25 mm Width 99.8 mm
Depth 98 mm
Packaging data
Package type Box
Packaging content
User guide Yes AC adapter included Yes
