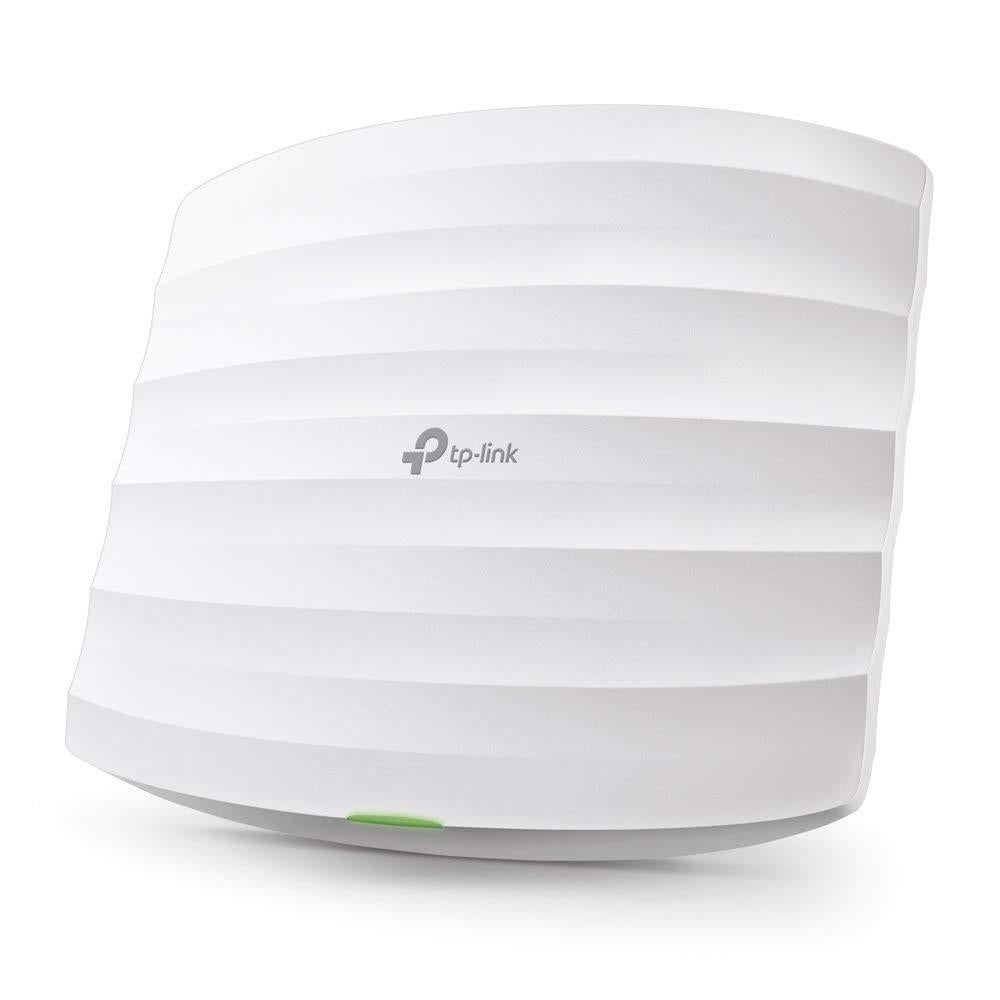

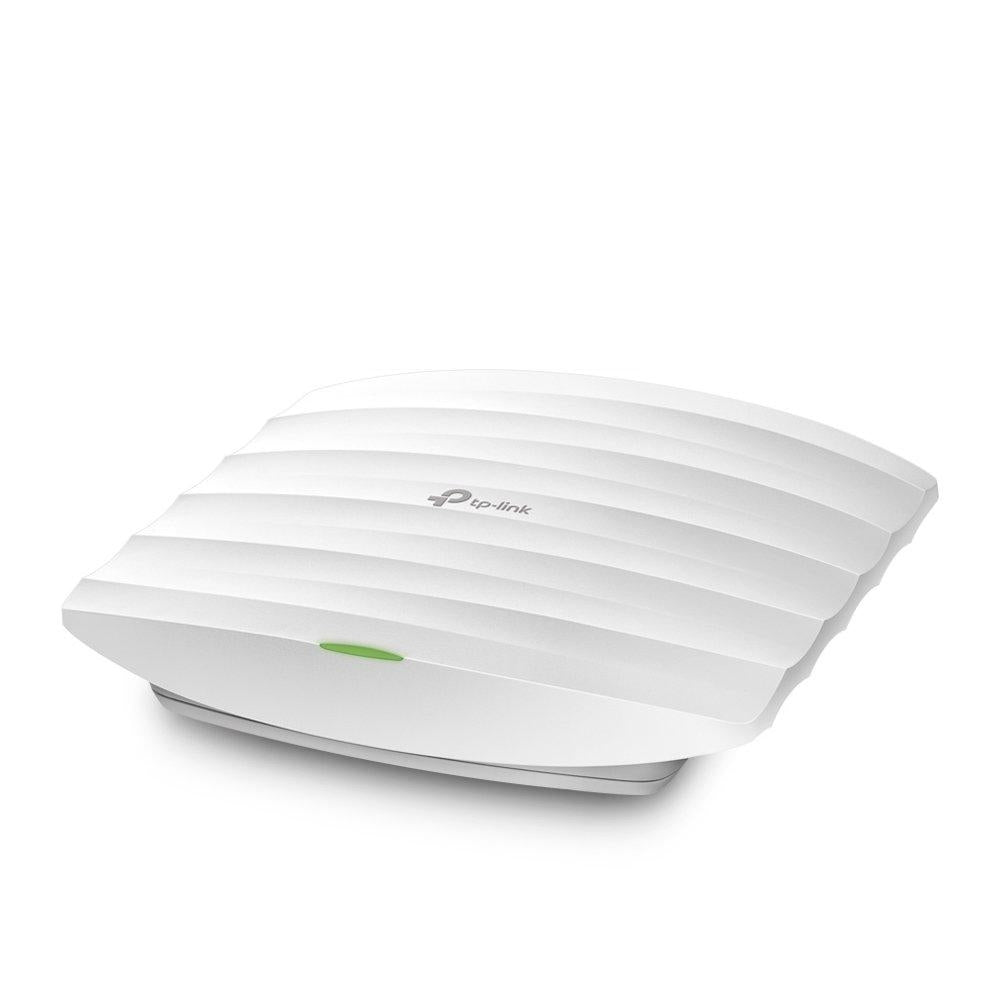

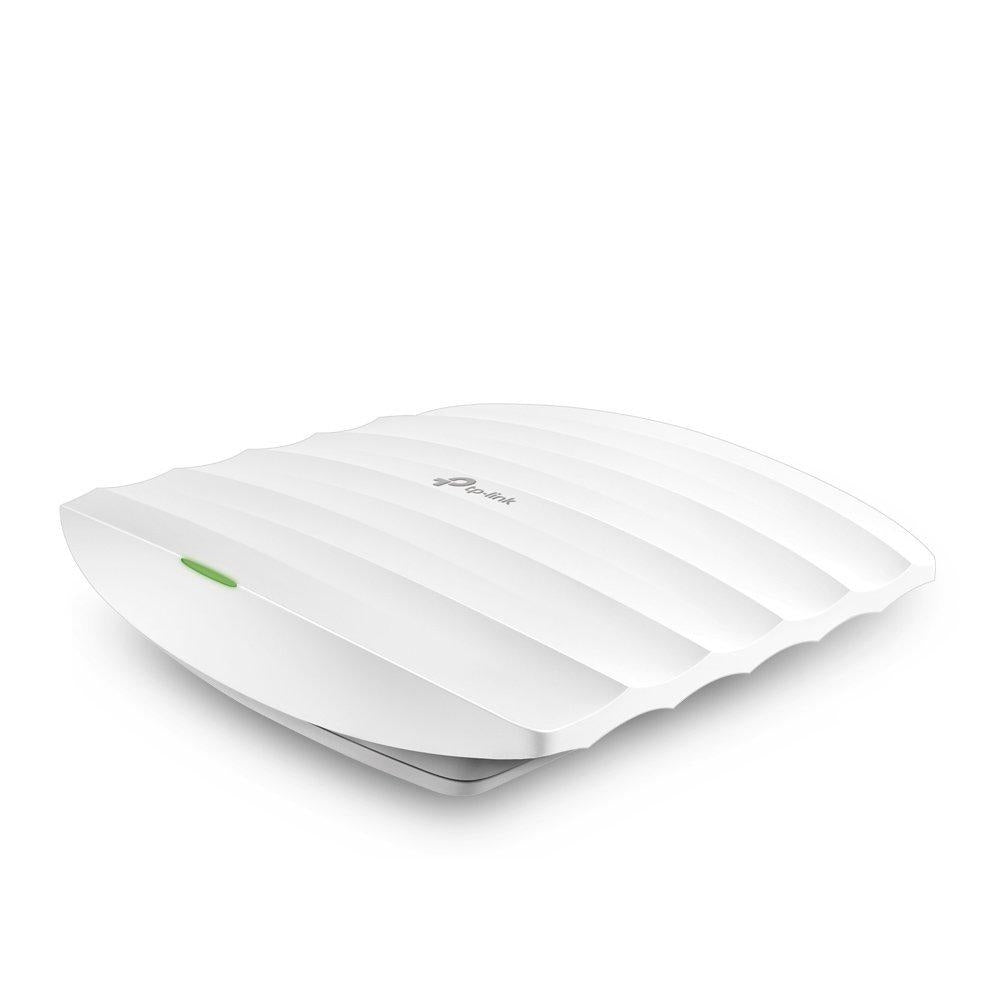

Item model number: EAP225_V3
VLSKU: 105291
  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
  • Compatibility with 802.3af and passive PoE support makes deployment effortless and flexible
  • Band steering automatically moves Dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Supports management VLAN for an enhanced network management

VLAN support Yes Ethernet LAN data rates 10,100,1000 Mbit/s
Quality of Service (QoS) support Yes 5 GHz Yes
2.4 GHz Yes Certification CE, FCC, RoHS
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af Reset button Yes
Rate limiting Yes
Management protocols HTTP/HTTPS

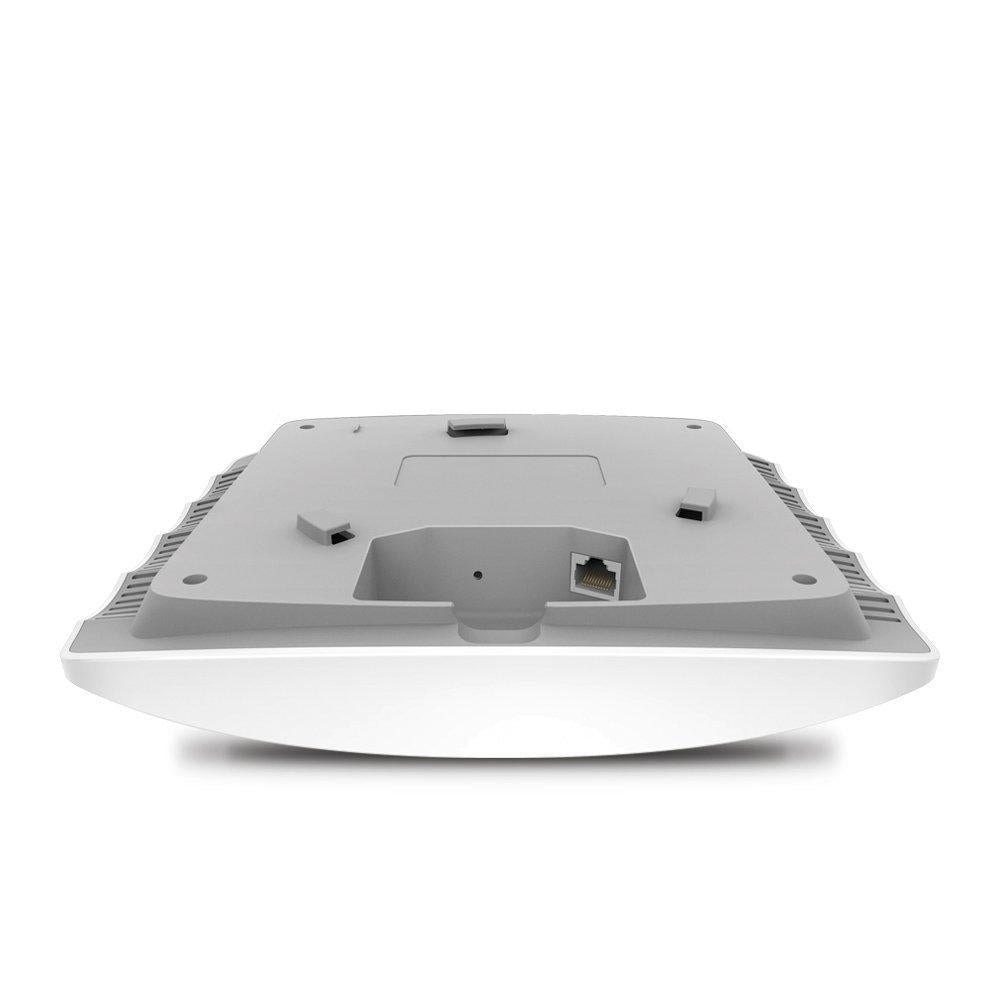

Ports & interfaces
DC-in jack Yes Ethernet LAN (RJ-45) ports 1
MAC address filtering Yes Port-based Network Access Control (PNAC) Yes
Security algorithms SNMP,SSID
Antennas quantity 3 Antenna gain level (max) 5 dBi
Antenna type Internal
Power over Ethernet (PoE) Yes Power consumption (max) 12.6 W
Internal No Product colour White
Placement Ceiling,Wall LED indicators Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 60 °C
Storage relative humidity (H-H) 5 - 90% Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Height 37.1 mm Width 205.5 mm
Depth 181.5 mm

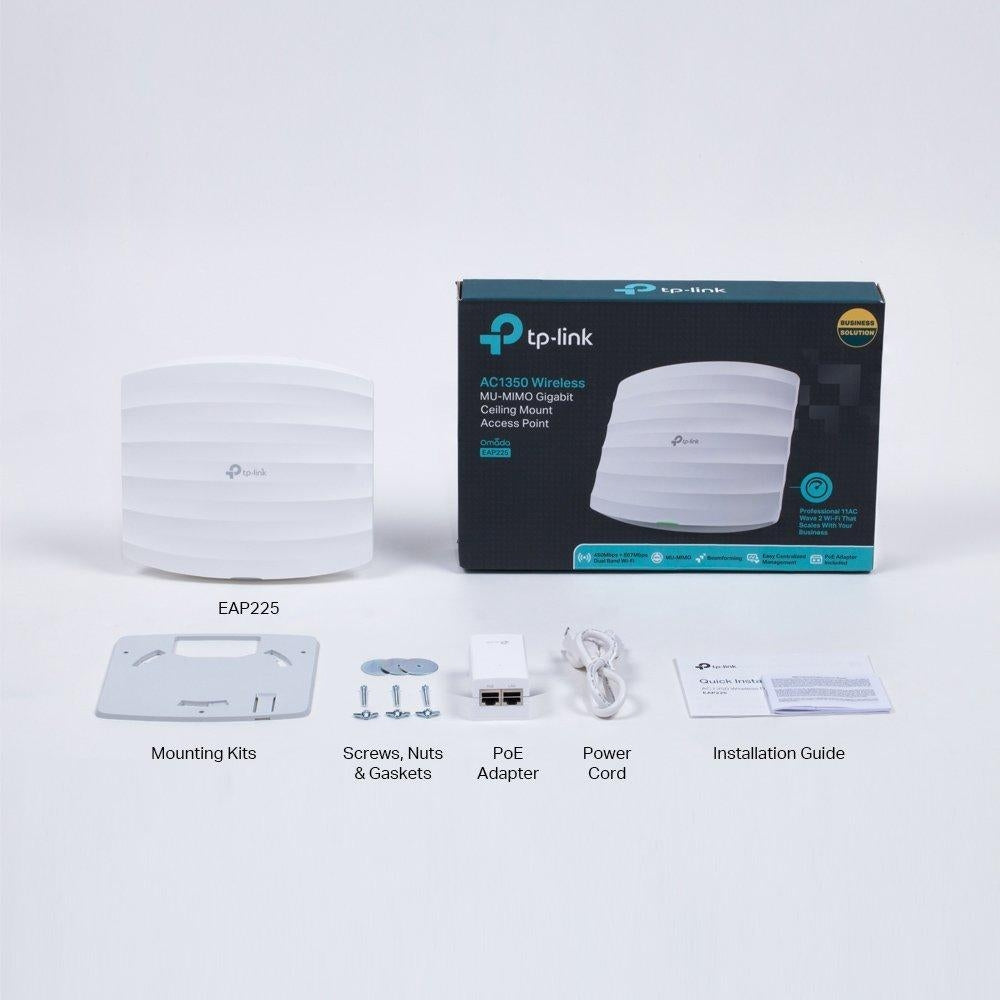

Packaging content
PoE adapter included Yes Quick start guide Yes
AC adapter included Yes Mounting kit Yes
