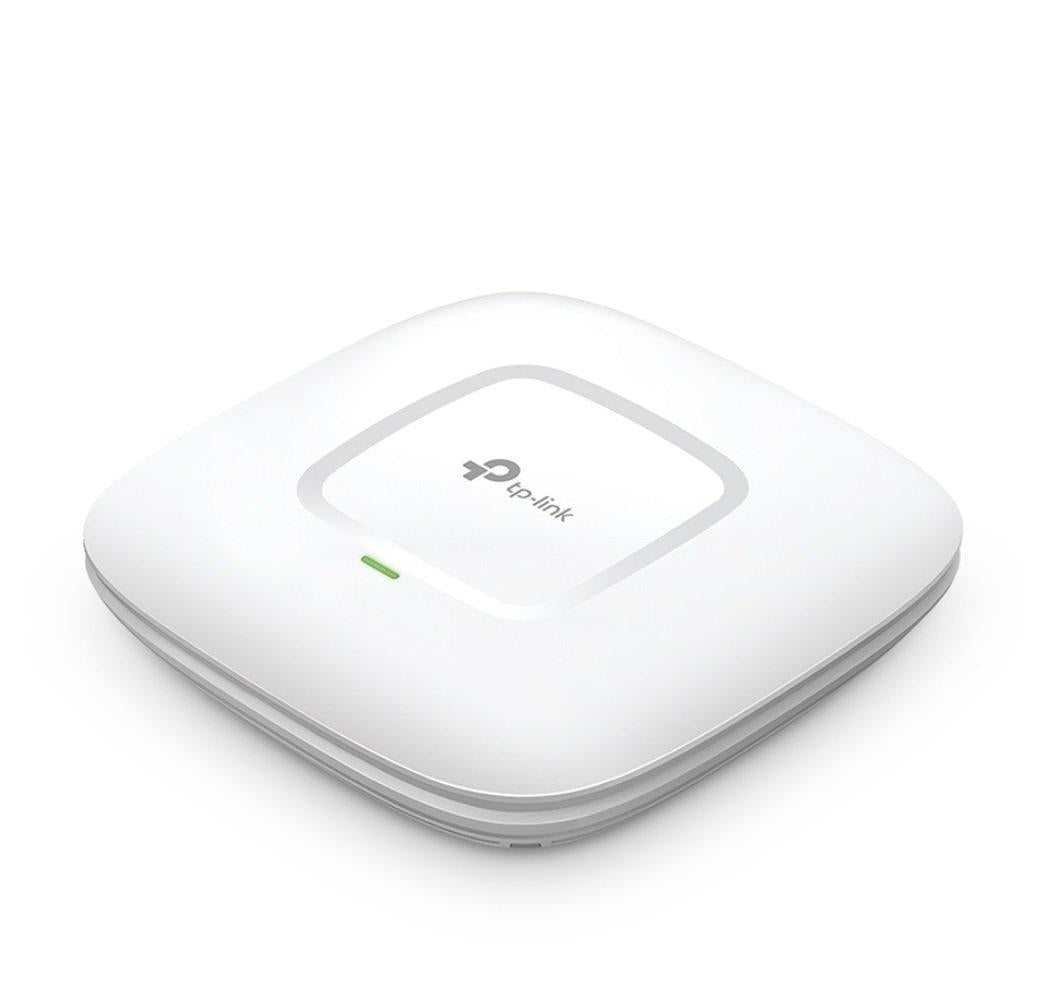

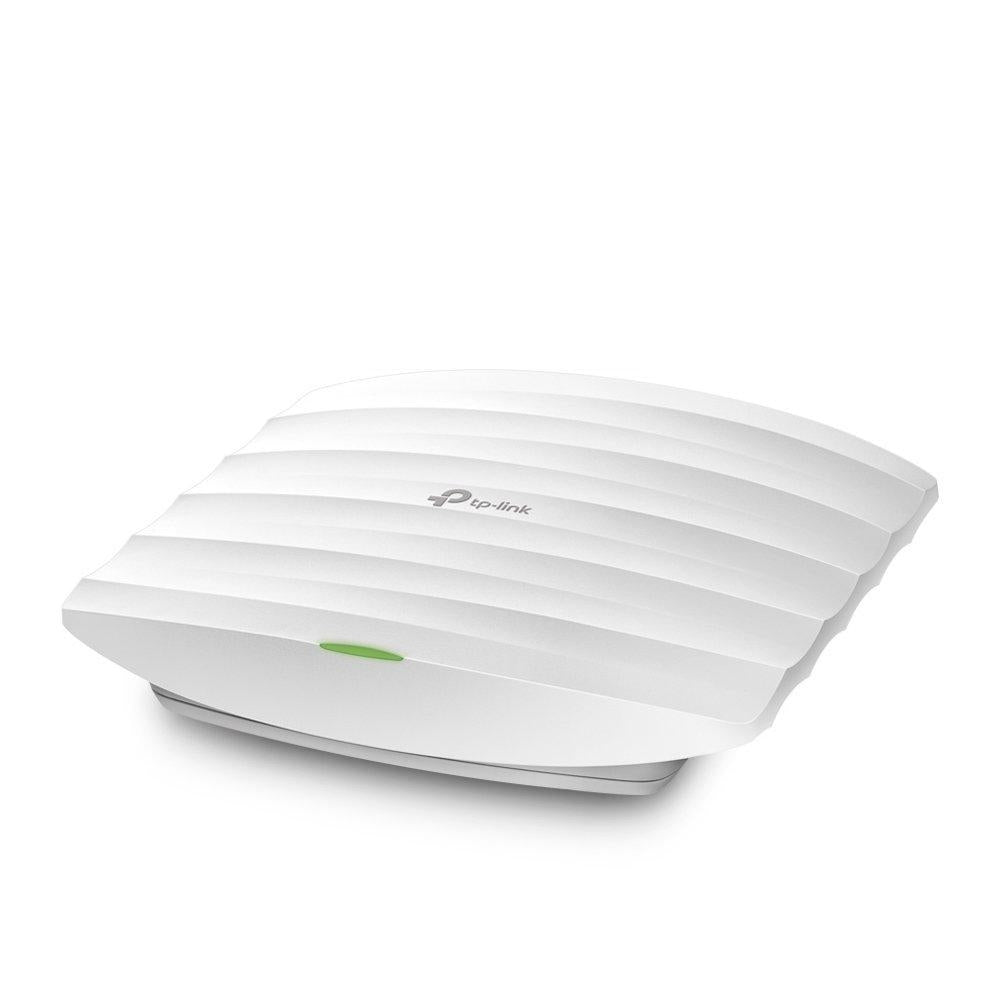

Item model number: EAP225
  • 802.11Ac 2X2 MIMO WiFi access point with 4x internal Omni antennas at 4 dB each
  • Free TP-Link Auranet controller software is able to manage and monitor hundreds of EAPs with ease, all from a single location
  • 1X gigabit Ethernet (rj-45) port, can be powered by any of the following: switch 802.3af/802.3at Poe plus gigabit Poe adapter (12vdc,1.5a) Power supply
  • Supports power over Ethernet (802.3af) For convenient and affordable installation
  • Band steering automatically moves dual band devices onto the wider 5ghz band for faster connections




WAN connection
DSL WAN No 3G/4G USB modem compatibility No
SIM card slot No Ethernet WAN Yes
Wireless LAN features
WLAN data transfer rate (second band) 867 Mbit/s Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max) 867 Mbit/s Top Wi-Fi standard IEEE 802.11ac
WLAN data transfer rate (first band) 300 Mbit/s
Ethernet LAN features
Cabling technology 10/100/1000Base-T(X) Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s
Ports & interfaces

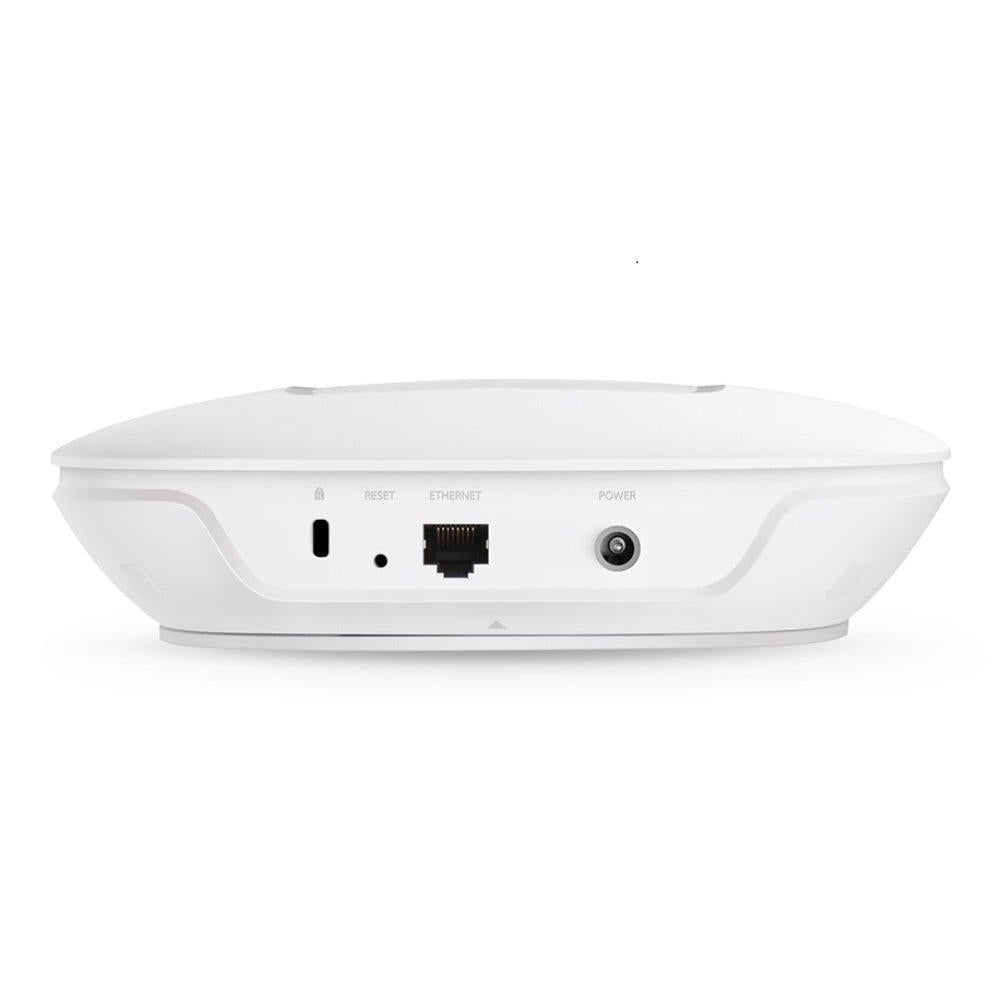

USB port No Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Mobile networking
3G No 4G No
Networking
Networking standards IEEE 802.3af Guest access Yes
Antenna
Antenna type Internal
Management features
Reset button Yes
Management features
Quality of Service (QoS) support Yes
Security
Security algorithms 64-bit WEP,128-bit WEP,152-bit WEP,SSID,WPA,WPA-PSK,WPA2,WPA2-PSK
Design
Product type Portable router Indication light Yes
LED indicators Power, WLAN Colour of product White
On/off switch Yes Wall mountable Yes
Performance
Memory card slot(s) No
Power
Output current 1.5 A Output voltage 12 V
Power supply 10.15 W Power source type AC
Weight & dimensions
Width 180 mm Height 47.5 mm
Depth 180 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Storage temperature (T-T) -40 - 70 °C
Packaging content
Package type Box AC adapter included Yes
Quick start guide Yes
