StarTech.com
StarTech VGA Extender over Cat5-Point to Point UTPE Series Retail (ST121UTPEP)
$209.98 CAD
/
Shipping calculated at checkout.
Pickup available at 11771 Horseshoe Way
Usually ready in 24 hours
Item model number: ST121UTPEP
- Extends video signal by up to 250 ft. (80m)
- Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
- Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
- Mounting bracket included
- Single power adapter can be connected at local or remote end of the extension
- Uses standard Cat 5 or better cabling
- Kit consists of 1 Base unit and 1 Remote unit
- Pure hardware design - no software or drivers required
Specification
| Technical details | |||
|---|---|---|---|
| Supported graphics resolutions | 1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1200 (WUXGA) | Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No | Plug and Play | Yes |
| RoHS compliance | Yes | Maximum transfer distance | 80 m |
| Colour of product | Black | Cable types supported | Cat5 |
| Type | AV transmitter & receiver | Certification | CE, FCC |
| Ports & interfaces | |||
|---|---|---|---|
| VGA (D-Sub) input ports | 1 | RJ-45 output ports | 1 |
| VGA (D-Sub) output ports | 1 | DC-in jack | Yes |
| RJ-45 input ports | 1 | ||
| Power | |||
|---|---|---|---|
| Output current | 0.6 A | External power adapter | Yes |
| Operating voltage | 12 V | Power consumption (typical) | 7.2 W |
| Weight & dimensions | |||
|---|---|---|---|
| Receiver dimensions (WxDxH) | 138 x 100 x 25 mm | Transmitter dimensions (WxDxH) | 138 x 100 x 25 mm |
| Transmitter weight | 36 g | Receiver weight | 36 g |
| Packaging data | |||
|---|---|---|---|
| Package weight | 1.2 kg | Package dimensions (WxDxH) | 60 x 320 x 145 mm |

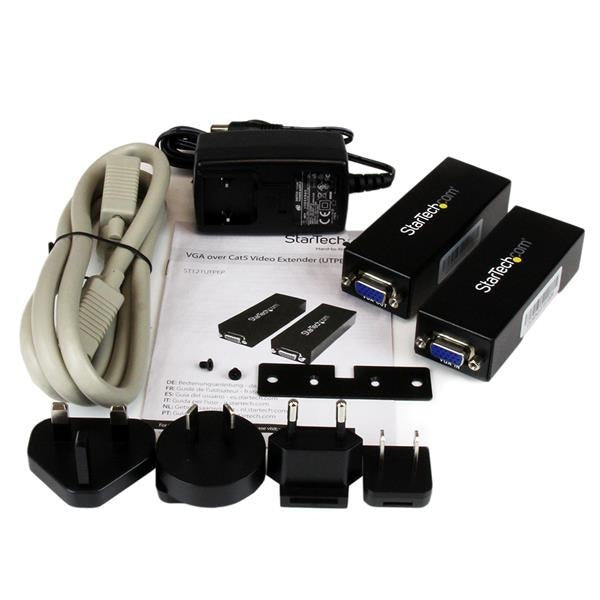

| Packaging content | |||
|---|---|---|---|
| Manual | Yes | Mounting brackets included | Yes |
| Cables included | VGA | ||
