Item model number: CDP2MDP
- Run resource-demanding applications on 4K displays at 60Hz

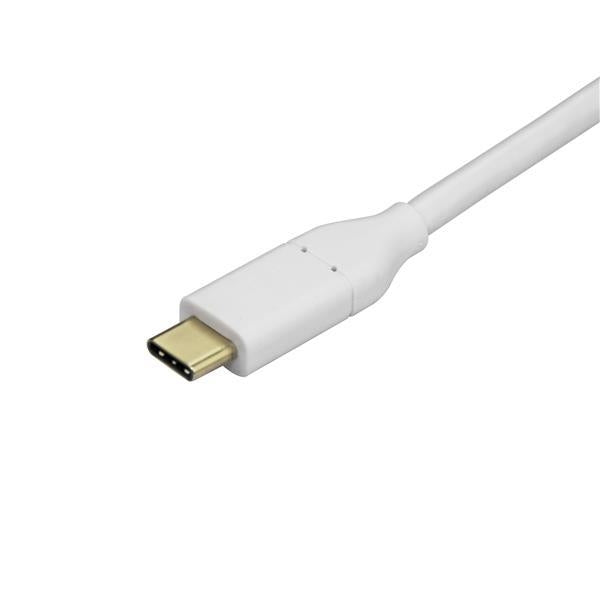

- Hassle-free connection with the reversible USB-C connector
- Thunderbolt 3 compatible
- 7.1 audio support
| Performance | |||
|---|---|---|---|
| Number of displays supported | 1 | Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels | Audio output channels | 7.1 channels |
| Refresh rate at maximum resolution | 60 Hz | HDMI output | No |
| DVI output | No | RoHS compliance | Yes |
| USB connector gender | Male | USB connector type | USB Type-C |
| DisplayPorts output | Yes | Chipset | NXP - PTN5100, Pericom - PI3DPX1203 |
| DisplayPort version | 1.2 | ||
| Performance | |||
|---|---|---|---|
| Certification | CE, FCC | ||
| Design | |||
|---|---|---|---|
| Housing material | Plastic | Colour of product | White |
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 5 - 90% | Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 27 mm | Height | 16 mm |
| Package depth | 225 mm | Depth | 60 mm |
| Package width | 125 mm | Weight | 25 g |
