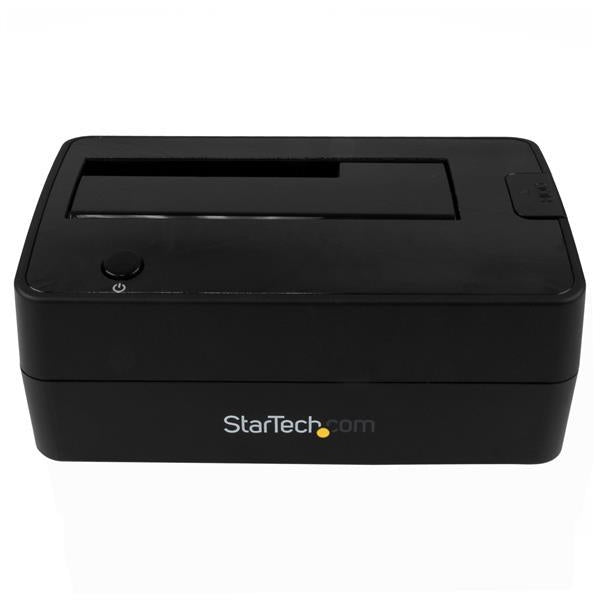

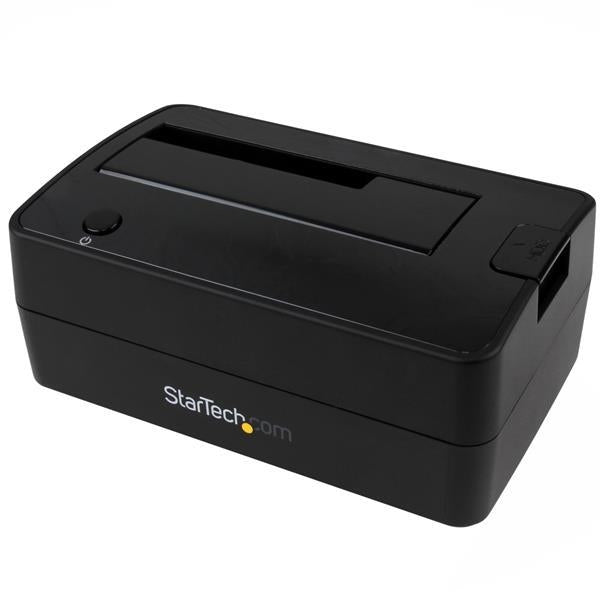

StarTech USB 3.1 (10Gbps) Single-Bay Dock for 2.5"/3.5" SATA SSD/HDD (SDOCKU313)

Item model number: SDOCKU313

• Access data from one 2.5 or 3.5” SATA SDD/HDD over ultra-fast USB 3.1 Gen 2
• Access drives at full speed with support of SATA I, II and III (up to 6 Gbps)
• Top-loading design with built-in ejection button for easy drive access
• UASP support for enhanced performance
• Supports large drive capacity of up to 6TB
• Multi-function LED indicators
• Backward compatible with USB 3.0, 2.0 and 1.x

Specification

Hard drive
Storage media type	HDD, SSD	Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	1	Storage drive interface	Serial ATA III
Maximum storage capacity	6 TB

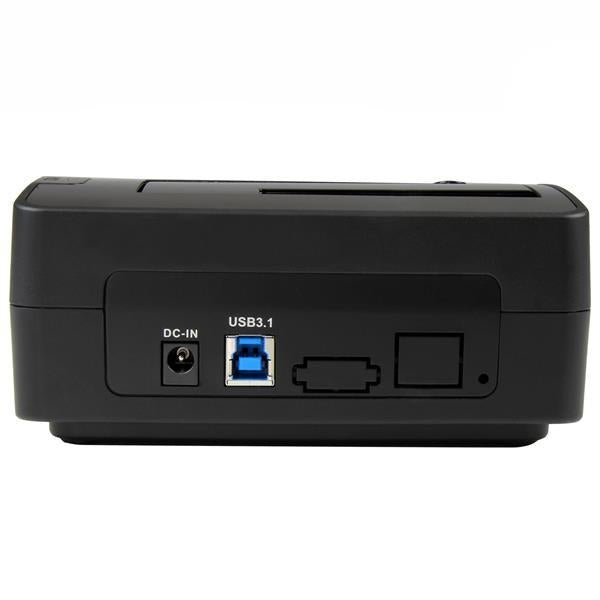

Ports & interfaces
DC-in jack	Yes	Host interface	USB 3.1 (3.1 Gen 2) Type micro-B
USB 3.1 (3.1 Gen 2) ports quantity	1

Technical details
Maximum data transfer rate	10 Gbit/s	Material	Plastic
Colour of product	Black	Chipset	ASMedia - ASM1351
UASP support	Yes

Cooling
Fan	No

Power
Input current	0.8	Output voltage	12 V
AC input voltage	110 - 240

Power
Plug type	Type M	Output current	2 A

Weight & dimensions
Width	92.7 mm	Height	63.6 mm
Depth	144.8 mm	Weight	398 g

Certificates
Certification	CE, FCC	RoHS compliance	Yes

Operational conditions
Operating relative humidity (H-H)	20 - 80%	Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C

Indication
LED indicators	Activity, Power

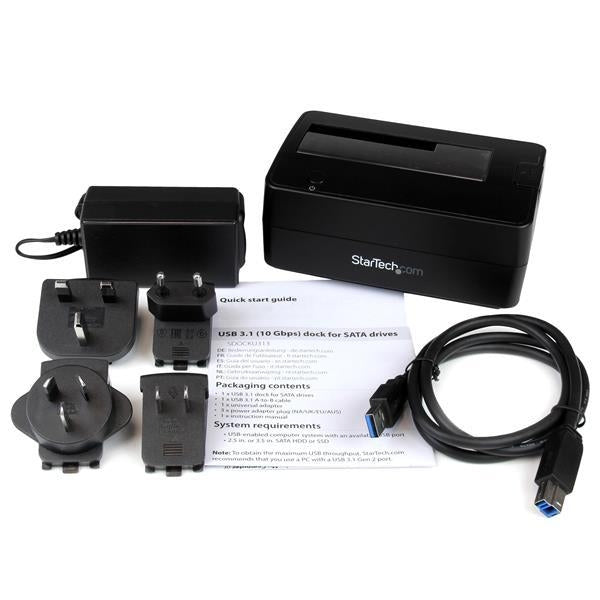

Packaging content
AC adapter included	Yes	Cables included	USB
Included power plug types	AU,EU,NA,UK	Quick installation guide	Yes

Packaging data
Package weight	804 g	Package dimensions (WxDxH)	91.52 x 160 x 170 mm
