StarTech.com

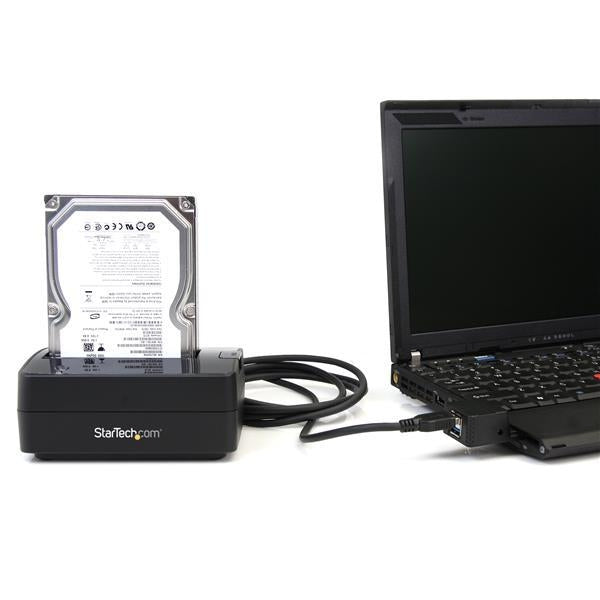

StarTech USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD (SATDOCKU3S)

$64.98 CAD
Shipping calculated at checkout.
Item model number: SATDOCKU3S
  • SuperSpeed USB 3.0 compliant host interface, with transfer rates up to 5Gbps
  • High Speed USB 2.0 compliant host interface, with transfer rates up to 480Mbps
  • Patented drive ejection mechanism
  • Combined power switch and status LED
  • Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
  • Supports 2.5" and 3.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
  • Built-in short circuit protection
  • Compact, desktop-style form factor
  • Plug-and-Play and Hot-Swap compatible




Specification
Hard drive
Storage media type HDD, SSD Storage drive sizes supported 2.5,3.5"
Number of storage drives supported 1 Storage drive interface Serial ATA, Serial ATA II, Serial ATA III
Maximum storage capacity 4 TB
Ports & interfaces
USB 3.0 (3.1 Gen 1) ports quantity 1 DC-in jack Yes
Host interface USB 3.0 (3.1 Gen 1) Type-B
Technical details
Maximum data transfer rate 5 Gbit/s Hot-swap Yes
Plug and Play Yes Material Plastic
Colour of product Black Chipset ASMedia - ASM1053
UASP support No
Cooling
Fan No
Power
Output current 2.5 A Output voltage 12 V
AC input voltage 110-240 Plug type Type M
Weight & dimensions
Width 145 mm
Weight & dimensions
Height 65 mm Depth 93 mm
Weight 400 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 8 - 80% Operating temperature (T-T) 5 - 80 °C
Storage temperature (T-T) -40 - 70 °C
Indication
LED indicators Activity, Power
Packaging content
Manual Yes AC adapter included Yes
Cables included USB
Software
Mac operating systems supported Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Windows operating systems supported Windows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Packaging data
Package weight 728 g Package height 170 mm
Package depth 160 mm Package width 90 mm
