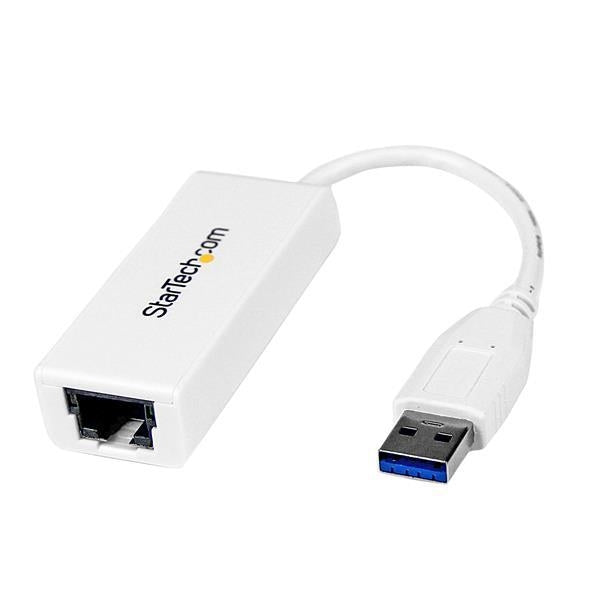

Item model number: USB31000SW
  • Full Gigabit bandwidth support over USB 3.0
  • IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • USB-Powered
  • Crossover Detection & Auto-Correction (Auto MDIX)
  • IEEE 802.1Q VLAN Tagging support
  • Jumbo Frame support
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
  • Activity and Link LED indicators
  • Compact, lightweight design




Ports & interfaces
Gender Male/Female Connector 1 RJ-45
Connector 2 USB 3.0 A
Design
Colour of product White LED indicators Yes
Performance
Maximum data transfer rate 5 Gbit/s Compatible operating systems Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit) Mac OS 10.6/ 10.7/ 10.8
Operational conditions
Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 26 mm Height 15.5 mm
Depth 210 mm Weight 27 g
Packaging data
Package weight 122 g Package height 40 mm
Package depth 165 mm Package width 130 mm
