Item model number: USB31000SPTB
  • Gigabit Ethernet port through a USB 3.0 / 2.0 connection

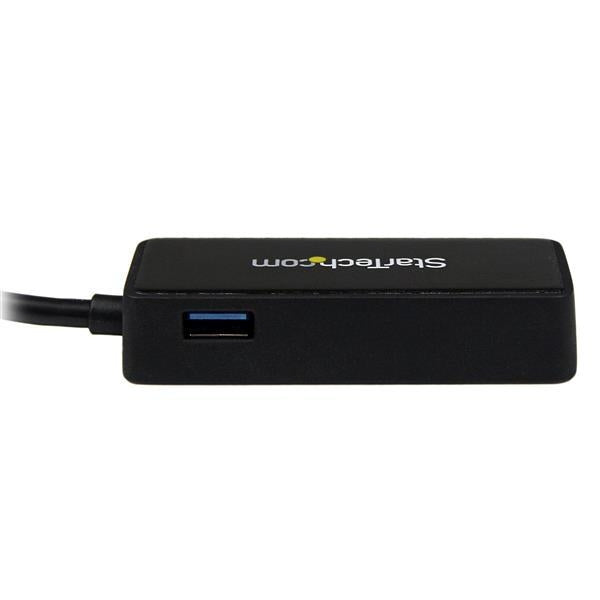

  • Integrated USB 3.0 pass-through port
  • IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • Crossover Detection & Auto-Correction (Auto MDIX)
  • IEEE 802.1Q VLAN Tagging support
  • Up to 4K Jumbo Frame support
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
  • Compact, lightweight design for maximum portability




Ports & interfaces
USB ports quantity 1 Ethernet LAN (RJ-45) ports 1
USB version 3.0 (3.1 Gen 1) Internal No
Interface Ethernet Connectivity technology Wired
Host interface USB
Bandwidth
Full duplex Yes Data transfer rate (max) 5000 Mbit/s
Networking
Maximum operating distance 100 m VLAN tagging Yes
Cabling technology 10/100/1000BaseT(X) Ethernet LAN Yes
Jumbo frames 4000 Jumbo frames support Yes
Networking standards IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u Chipset ASIX - AX88179, VIA - VL811
Ethernet LAN data rates 10,100,1000 Mbit/s
Power
USB powered Yes
Design
Colour of product Black LED indicators Activity, Link
Performance
Plug and Play Yes USB data transfer rates 5000 Mbit/s
Performance
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Server operating systems supported Windows Server 2003,Windows Server 2003 R2,Windows Server 2008 R2,Windows Server 2012 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Weight & dimensions
Width 35 mm Package weight 127 g
Package height 30 mm Height 17 mm
Package depth 172 mm Depth 126 mm
Package width 142 mm Weight 42 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 5 - 85% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C

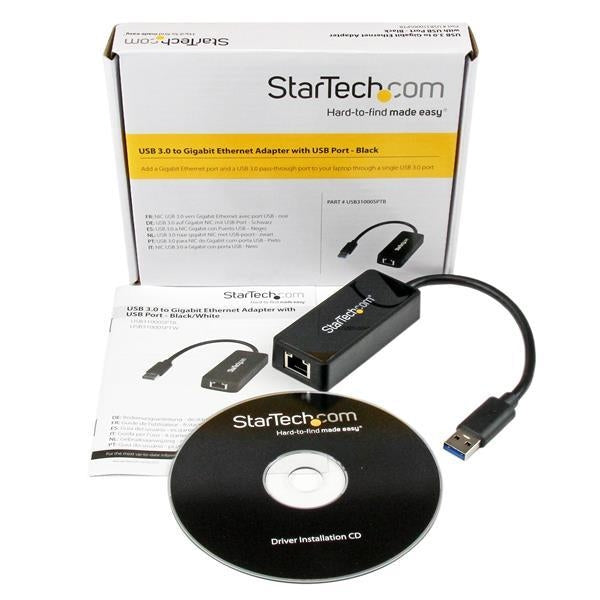

Packaging content
Manual Yes Drivers included Yes
