StarTech USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with UASP (SDOCKU33BV)

Item model number: SDOCKU33BV

• Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD)
• UASP Support (Attached SCSI Protocol Specification Revision 1.0)
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Plug-and-Play and Hot-Swap compatible

Specification

Hard drive
Storage media type	HDD, SSD	Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	1	Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III

Ports & interfaces
USB 3.0 (3.1 Gen 1) ports quantity	1	DC-in jack	Yes
Host interface	USB 3.0 (3.1 Gen 1) Type-B

Technical details
Maximum data transfer rate	6 Gbit/s	Plug and Play	Yes
Chipset	ASMedia - ASM1053 - 6G	UASP support	Yes
On/off switch	Yes

Cooling
Fan	No

Power
Output voltage	12 V	AC input voltage	100-240

Other features
Standard interfaces	USB 3.0

Certificates
Certification	Microsoft WHQL, CE, FCC	RoHS compliance	Yes

Operational conditions
Operating relative humidity (H-H)	20 - 80%	Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C

Indication
LED indicators	Activity, Power

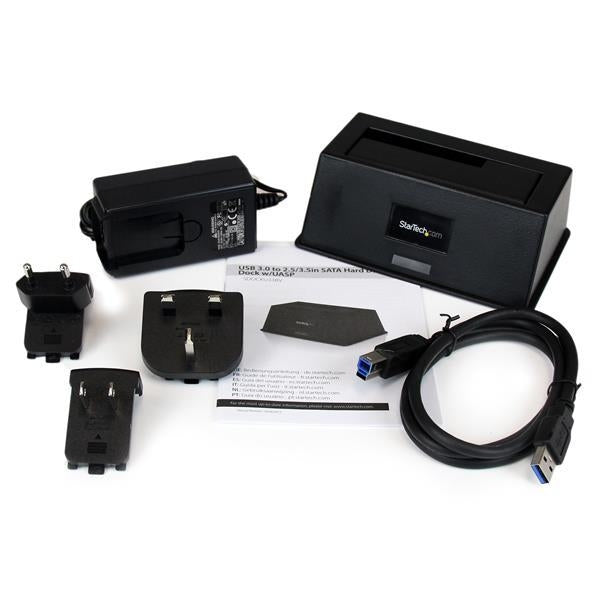

Packaging content
Manual	Yes	AC adapter included	Yes
Cables included	USB	Included power plug types	EU,NA,UK

Packaging data
Package weight	704 g	Package height	170 mm
Package width	92 mm	Package dimensions (WxDxH)	92 x 160 x 170 mm
