StarTech USB 3.0 / eSATA Dual Hard Drive Docking Station with UASP for 2.5/3.5in SATA SSD / HDD – SATA 6 Gbps (SDOCK2U33EB)

Item model number: SDOCK2U33EB

• Support SATA III (6 Gbps) and UASP for optimal performance
• eSATA or USB host connection
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives

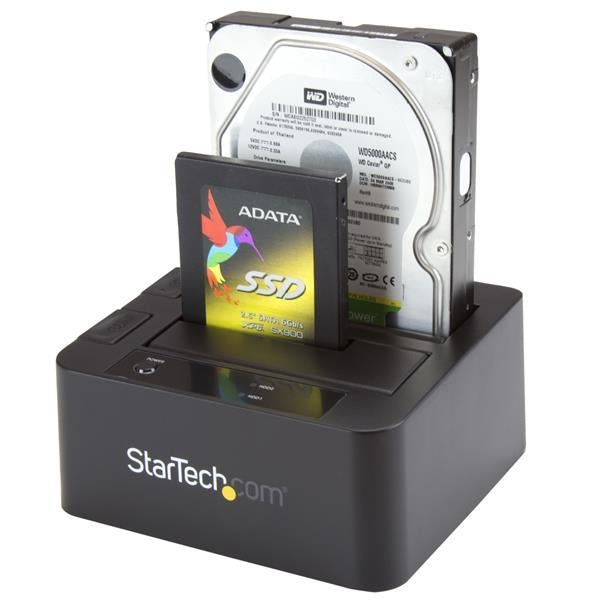

• Supports both 2.5" and 3.5" form factor hard drives (HDD) and solid state drives (SSD)

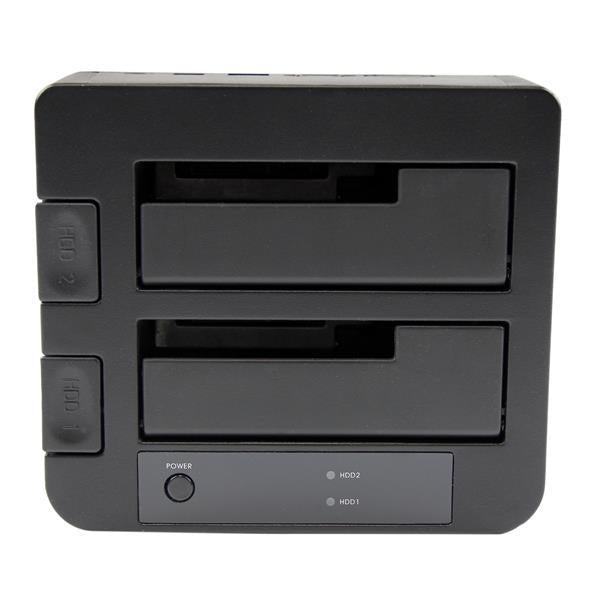

• Dual bay, top slot-loading design with drive doors

Specification

Hard drive
Storage media type	HDD, SSD	Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2	Storage drive interface	Serial ATA III
Maximum storage capacity	8 TB

Ports & interfaces
eSATA ports quantity	1	USB 3.0 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes	Host interface	USB 3.0 (3.1 Gen 1) Type-B

Technical details
Maximum data transfer rate	6 Gbit/s	Material	Plastic
Colour of product	Black	Chipset	JMicron - JMS562

Power
Input current	1.5	Output current	3 A
Output voltage	12 V	AC input voltage	100-240
Plug type	Type M

Weight & dimensions
Weight	490 g	Width	132 mm
Height	70 mm	Depth	143 mm

Other features
Standard interfaces	eSATA,USB 3.0

Certificates
Certification	CE, FCC	RoHS compliance	Yes

Operational conditions
Operating relative humidity (H-H)	20 - 80%	Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C

Indication
LED indicators	Activity, Power

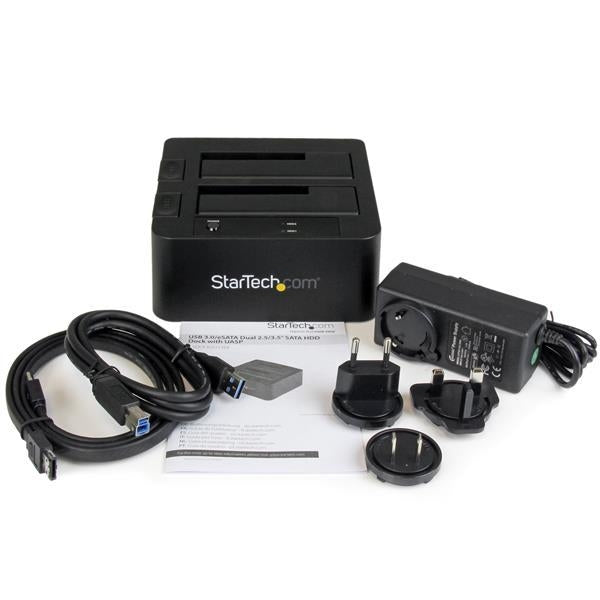

Packaging content
Manual	Yes	AC adapter included	Yes
Cables included	eSATA,USB	Included power plug types	EU,NA,UK

Software
Mac operating systems supported	Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks	Linux operating systems supported	Yes
Windows operating systems supported	Windows 2000,Windows 8,Windows 8.1,Windows Vista Home Basic,Windows XP Home

Packaging data
Package weight	1 kg	Package height	210 mm
Package width	120 mm	Package dimensions (WxDxH)	120 x 185 x 210 mm
