Item model number: USB2SATAIDE
  • Built in connectors for both 2.5in and 3.5in SATA and IDE hard drives
  • LED indicators provide status and activity updates
  • High Speed USB 2.0 host interface, with support for transfer rates up to 480 Mbps
  • Compact, portable form factor




Ports & interfaces
Gender Male/Female Connector 1 USB A
Connector 2 IDE(40-pin) + IDE(44-pin)+ LP4 (4-pin) + SATA (7-pin) + SATA (15-pin)
Design
RoHS compliance Yes Material Plastic
Colour of product Black LED indicators Activity, Link
Certification CE, FCC
Performance
Maximum data transfer rate 0.48 Gbit/s Output current 2000 mA
Chipset JMicron JM20337
Power
Input voltage 110 - 240
Power
Output voltage 12 V
Weight & dimensions
Width 43 mm Height 15 mm
Depth 70 mm Weight 54 g
Packaging data
Package weight 456 g Package height 46 mm
Package depth 190 mm Package width 140 mm

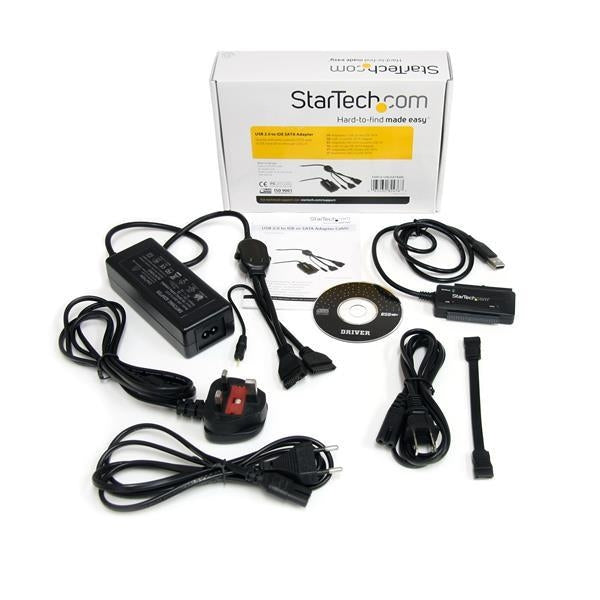

Packaging content

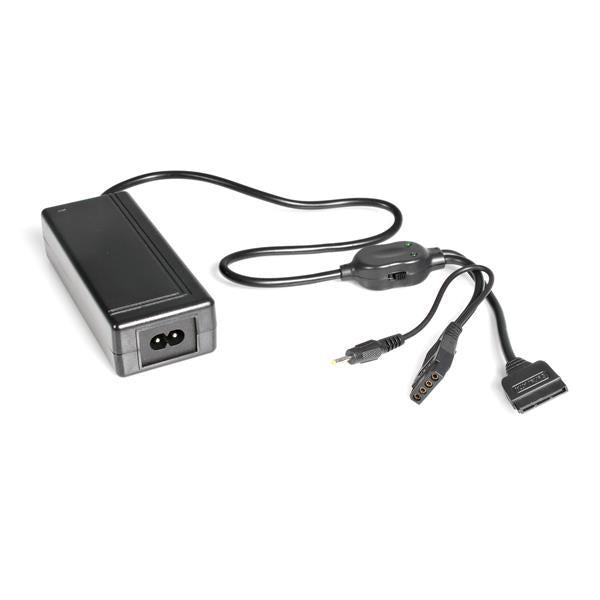

Manual Yes AC adapter included Yes
Cables included SATA
