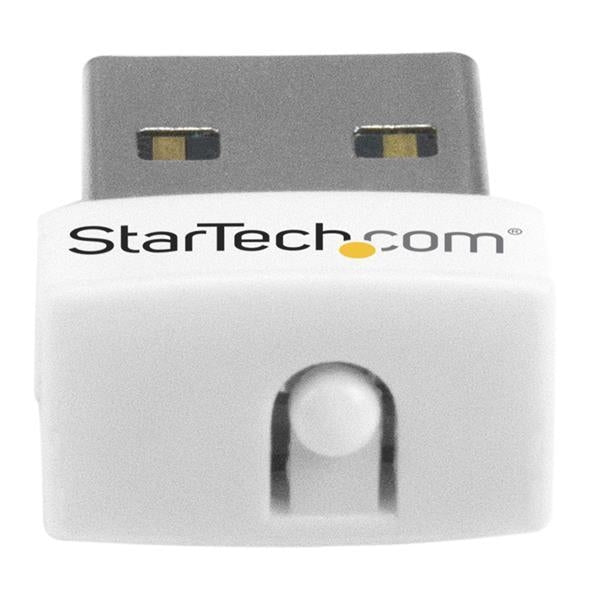

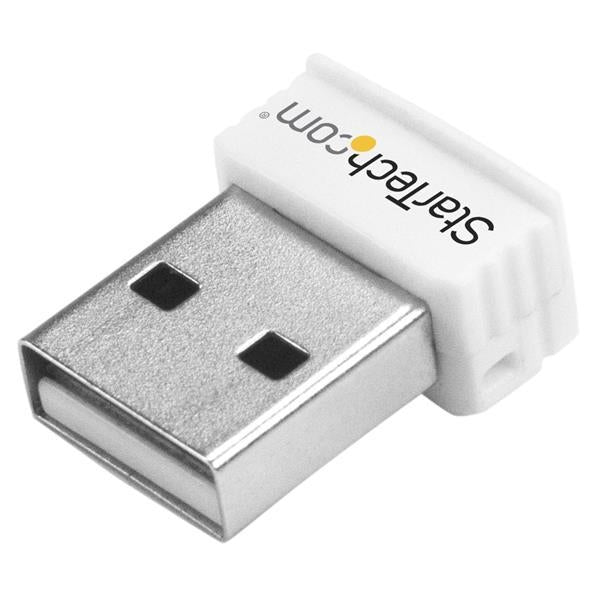

Item model number: USB150WN1X1W
  • Extremely compact and lightweight design
  • 1 Transmitter/1 Receiver (1x1:1) antenna configuration
  • Compliant with IEEE 802.11n standard, with transfer rates up to 150Mbps
  • Backward compatible with IEEE 802.11b/g standards, for up to 11/54Mbps connections respectively
  • Supports security features such as WEP (64-128-bit), WPA and WPA2
  • Broadcast distances up to 100m indoors and 300m outdoors
  • Wi-Fi Protected Setup (WPS) push button or software configuration
  • Infrastructure and Ad-Hoc network modes support




Ports & interfaces
Internal No Interface WLAN
Connectivity technology Wireless Host interface USB
Bandwidth
Full duplex Yes Data transfer rate (max) 150 Mbit/s
Networking
Maximum operating distance 300 m WPS push button Yes
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Chipset Realtek - RTL8188EUS
Frequency band 2.4
Wireless LAN features
Maximum outdoor range 300 m Maximum indoor range 100 m
Wi-Fi Yes Wi-Fi standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Top Wi-Fi standard IEEE 802.11n
Power
USB powered Yes
Design
Housing material Plastic Colour of product White
Performance
Mean time between failures (MTBF) 44000 h Security algorithms 64-bit WEP,128-bit WEP,AES,TKIP,WEP,WPA
Performance
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Mac compatibility Yes
Weight & dimensions
Width 15 mm Package weight 44 g
Package height 19 mm Height 8 mm
Package depth 170 mm Depth 19 mm
Package width 112 mm Weight 3 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Packaging content
Number of products included 1 pc(s) Manual Yes
Drivers included Yes
