Item model number: SDOCK1EU3P2
  • Easy-to-use secure erasing with no host device required
  • Supports most 2.5” and 3.5” SATA HDD and SSD drives including 4Kn drives

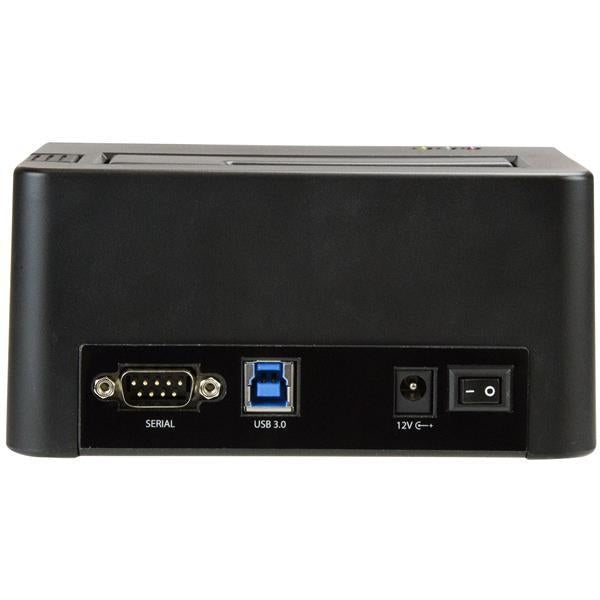

  • Supports a serial printer (RS232) for receipt printing and erase confirmation
  • Provides a single-bay dock for your SATA drive
  • Fast access to files through USB 3.0 (5 Gbps)
  • TAA compliant
  • 9 modes of erase including: Quick and Secure Erase, Single Pass Overwrite and Multi-pass Overwrites - meets DoD (5220.22-M) standards
  • Supports SATA I, II and III (up to 6 Gbps)
  • Plug-and-play installation
  • Supports drive hot-swapping

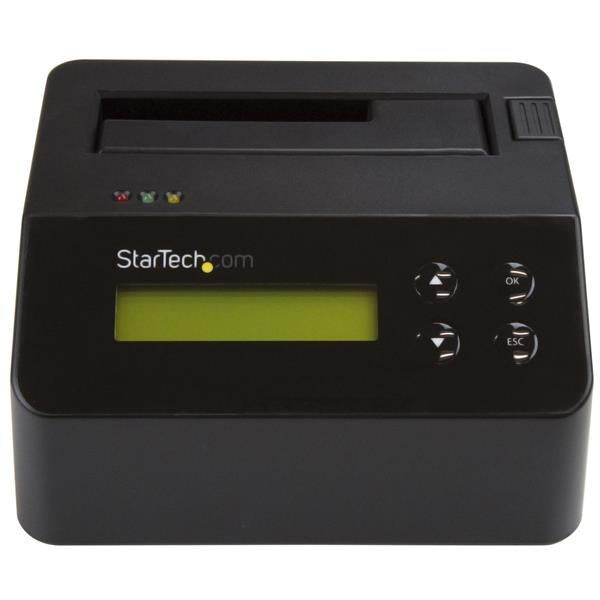

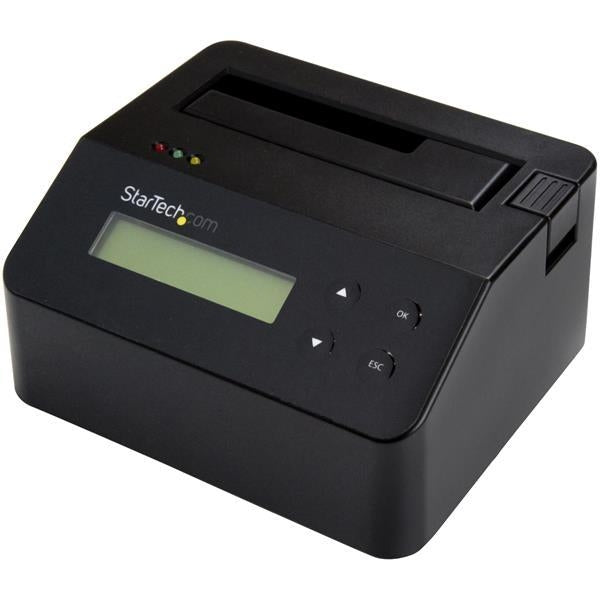

  • Built-in LCD display and menu navigation buttons
  • Power and activity LED




Technical details
Port multiplier No Product type HDD/SSD duplicator
Housing material Plastic, Steel Duplicator operating modes Erase
Transfer rate 5000 MB/s Serial ports quantity 1
Colour of product Black LED indicators Activity, Power
USB connector type USB Type-B Maximum supported storage capacity 10 TB
Interface USB 3.0 Number of simultaneous copies 1 copies
Chipset Xilinx - Spartan-6
Hard drive
Supported hard disk drive sizes 2.5,3.5"
Power
Input current 1.4 Power supply 60 W
AC input voltage 100 - 240
Power
Plug type Type M Output current 5 A
Output voltage 12 V Included power plug types AU, EU, JP, NA, UK
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 65 °C
Weight & dimensions
Dimensions (WxDxH) 123 x 140 x 70 mm Weight 656 g
Certificates
Certification CE, FCC RoHS compliance Yes
Packaging data
Manual Yes Package weight 2.1 kg
Cables included USB Package dimensions (WxDxH) 183 x 372 x 90 mm
Display
Display LCD
