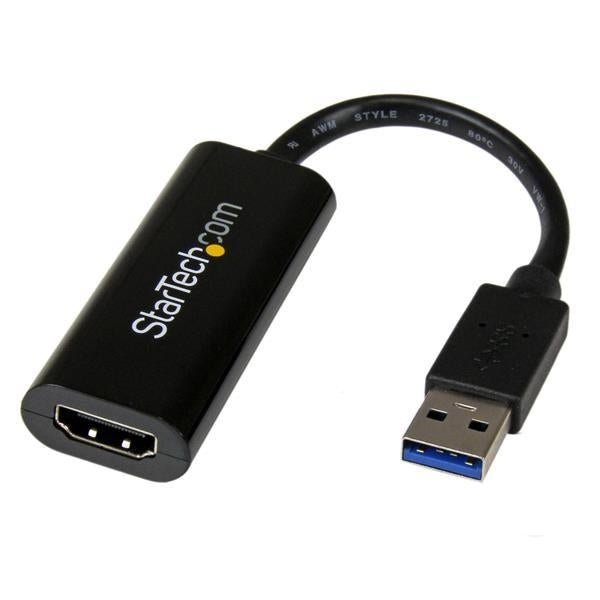

Item model number: USB32HDES
  • Slim lightweight design
  • Ultra-portable
  • SuperSpeed USB 3.0 (5 Gbps)
  • Supports High-Definition video resolutions up to 1920x1200/1080p
  • USB-powered - No external power adapter required
  • Supports Mirrored, Extended or Primary display configurations
  • Supports display rotation




Performance
Number of displays supported 1 Supported graphics resolutions 800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900,1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Data transfer rate (max) 5 Gbit/s Maximum resolution 1920 x 1200 pixels
Audio output channels 2.0 channels HDMI output Yes
USB pass-through No Supported video modes 480p,720p,1080p
DVI output No RoHS compliance Yes
USB connector gender Male USB version 3.0 (3.1 Gen 1)
USB connector type USB Type-A DisplayPorts output No
Chipset T5-302/MCT Certification CE, FCC, WHQL
Design
Housing material Plastic Colour of product Black
USB cable length 0.06 m Integrated USB cable Yes
Design
Package type Box
System requirements
Minimum RAM 2 GB Minimum processor family Core i3
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 Minimum processor speed 2.8 GHz
Operational conditions
Operating relative humidity (H-H) 0 - 85% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 75 °C
Weight & dimensions
Width 25 mm Package weight 150 g
Package height 32 mm Height 12 mm
Package depth 193 mm Depth 190 mm
Package width 170 mm Weight 23.5 g
Packaging content
Manual Yes Drivers included Yes
