StarTech.com
StarTech PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card (PEX867WAC22)
$124.98 CAD
/
Shipping calculated at checkout.
Item model number: PEX867WAC22
- Wireless AC1200 compatible (867 Mbps + 300 Mbps)
- Compliant with 802.11 a/b/g/n/ac standards
- Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
- PCI Express host interface
- 2 Transmitter/2 Receiver (2x2:2) antenna configuration

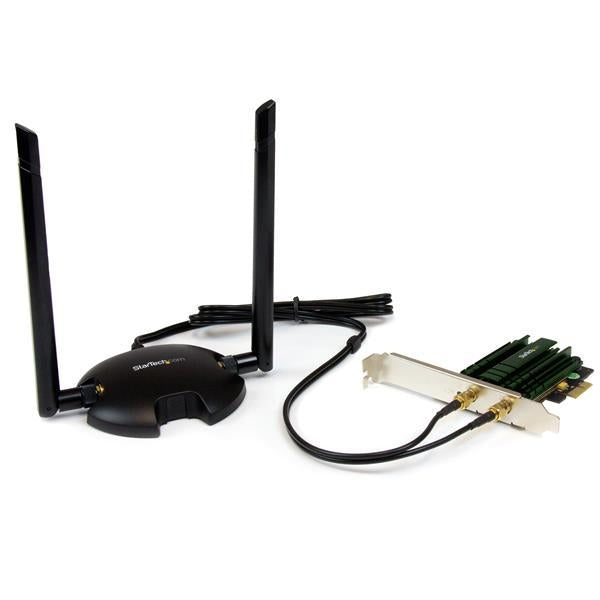

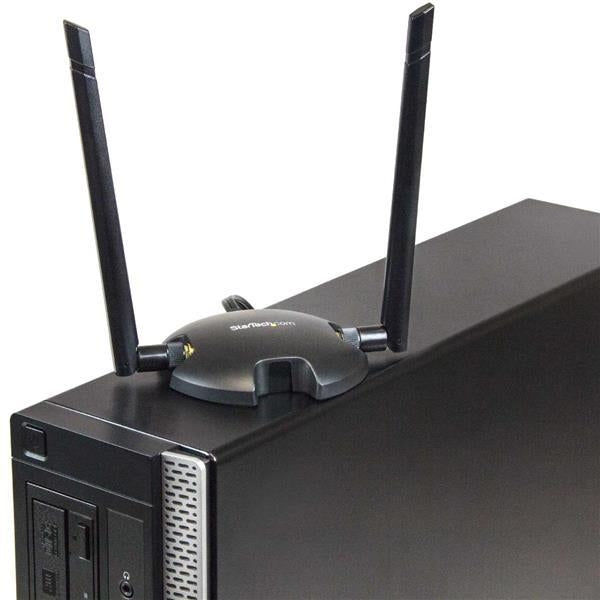

- Included magnetic antenna stand for side-mounting on your PC case
- Supports WEP (64-128-bit), WPA and WPA2 wireless security
- Supports WMM Quality of Service
- Supports Soft AP mode
- Configured with standard profile bracket, low profile/half-height bracket included
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Internal | Yes | Interface | Ethernet/WLAN |
| Connectivity technology | Wireless | Host interface | PCI-E |
| Bandwidth | |||
|---|---|---|---|
| Full duplex | Yes | Data transfer rate (max) | 867 Mbit/s |
| Networking | |||
|---|---|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n | Chipset | RTL8812AE |
| Frequency band | 2.4 - 5 | ||
| Wireless LAN features | |||
|---|---|---|---|
| Wi-Fi | Yes | Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| WLAN data transfer rates supported | 300,867 Mbit/s | Top Wi-Fi standard | IEEE 802.11ac |
| Antenna | |||
|---|---|---|---|
| Antenna connector type | RP-SMA | Antenna | Yes |
| Antenna | |||
|---|---|---|---|
| Detachable antenna(s) | Yes | Gain | 5 dBi |
| Design | |||
|---|---|---|---|
| LED indicators | Activity, Link | Colour of product | Green |
| Performance | |||
|---|---|---|---|
| Security algorithms | 128-bit WEP,64-bit WEP,TKIP,WEP,WPA,WPA2 | Windows operating systems supported | Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Weight & dimensions | |||
|---|---|---|---|
| Width | 83 mm | Package height | 57.2 mm |
| Height | 18 mm | Package depth | 201 mm |
| Depth | 120 mm | Package width | 154 mm |
| Weight | 370 g | ||
| Certificates | |||
|---|---|---|---|
| RoHS compliance | Yes | ||

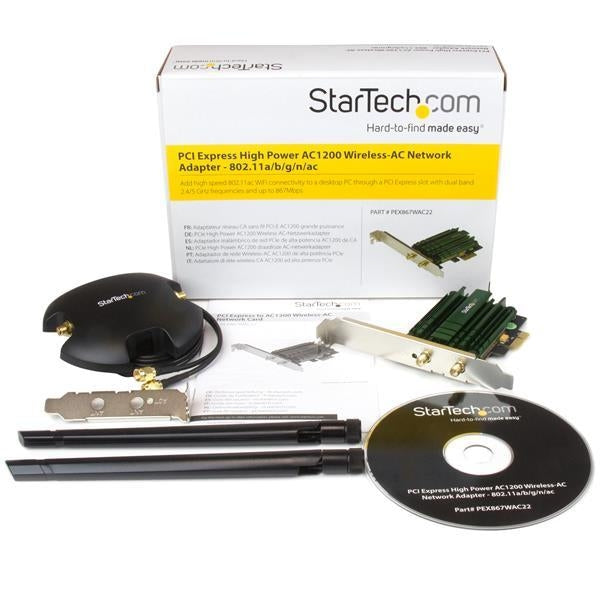

| Packaging content | |||
|---|---|---|---|
| Manual | Yes | ||
