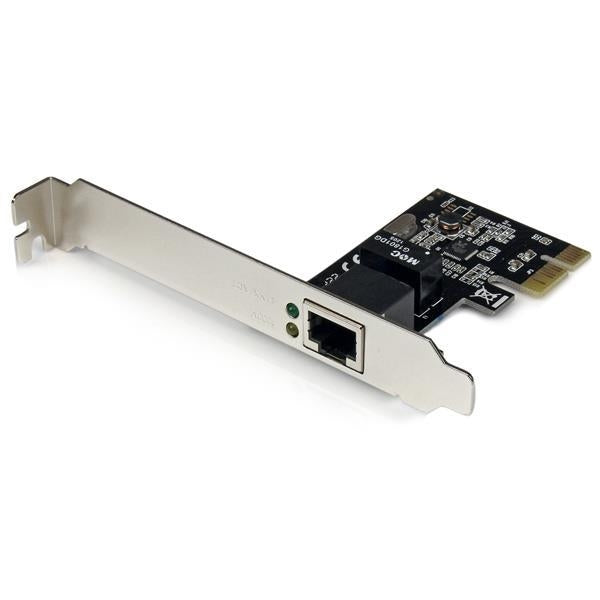

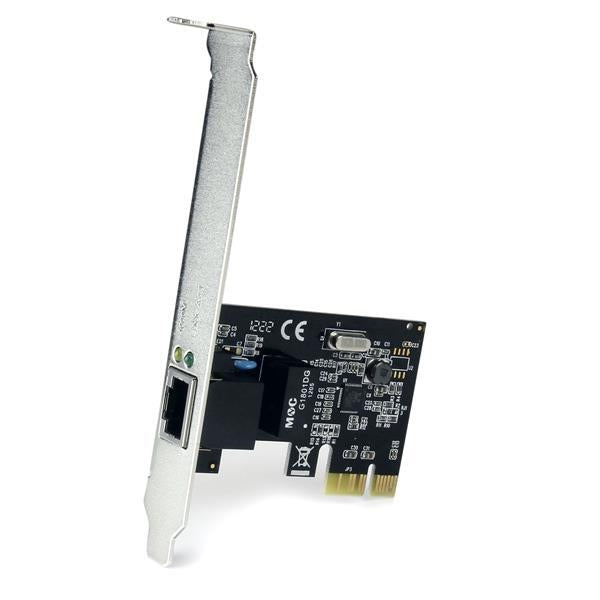

Item model number: ST1000SPEX2
  • A single 10/100/1000Mbps compatible RJ45 Ethernet port
  • Gigabit detection and Link/Activity LED indicators
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
  • Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
  • Jumbo frame support
  • Full and half duplex support
  • Supports Wake-on-LAN function
  • Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
  • Includes a low profile/half-height installation bracket




Ports & interfaces
Ethernet LAN (RJ-45) ports 1 Internal Yes
Interface Ethernet Connectivity technology Wired
Host interface PCI-E
Bandwidth
Full duplex Yes Supported data transfer rates 10/100/1000 Mbit/s
Data transfer rate (max) 1000 Mbit/s
Networking
Ethernet interface type Gigabit Ethernet Cabling technology 10/100/1000BaseT(X)
Ethernet LAN Yes Jumbo frames 9000
Jumbo frames support Yes Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x

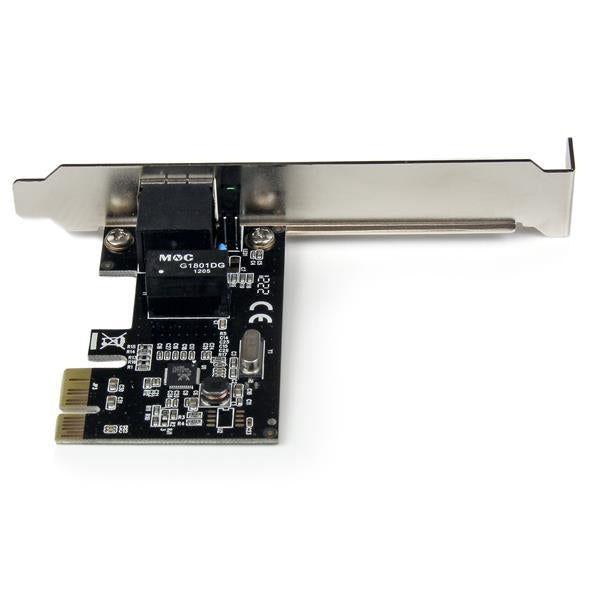

Chipset Realtek RTL8111E Ethernet LAN data rates 10,100,1000 Mbit/s
Wireless LAN features
Wi-Fi No
Protocols
Supported network protocols CSMA/CD
Design

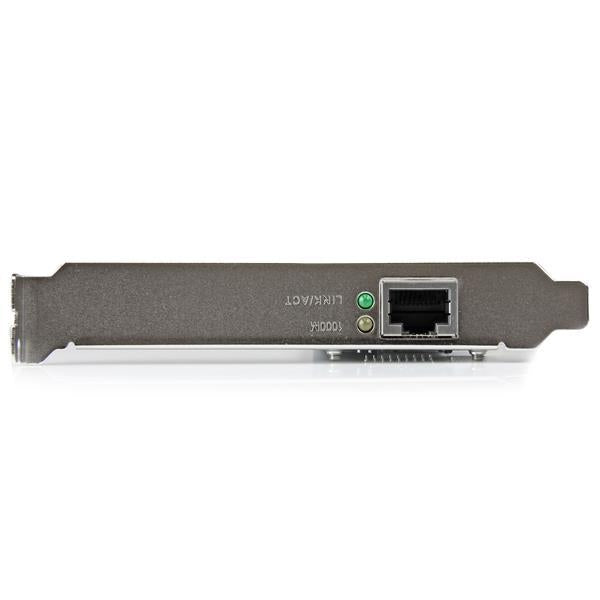

LED indicators Activity, Link
Performance
Auto MDIX IEEE Yes Wake-on-LAN ready Yes
Performance
Mac operating systems supported Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 R2 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mean time between failures (MTBF) 376212 h
Weight & dimensions
Width 120.3 mm Package weight 120 g
Package height 34 mm Height 18 mm
Package depth 144 mm Depth 67.9 mm
Package width 176 mm Weight 40 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 0 - 100 °C

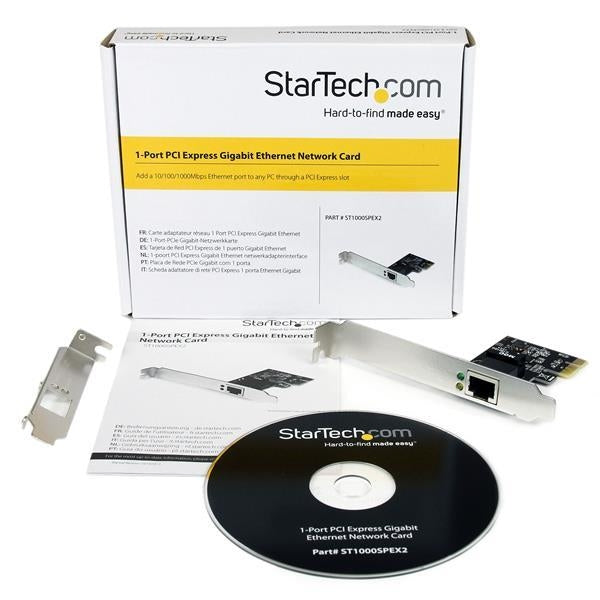

Packaging content
Manual Yes Drivers included Yes
Low-profile bracket Yes
