Item model number: IES5102

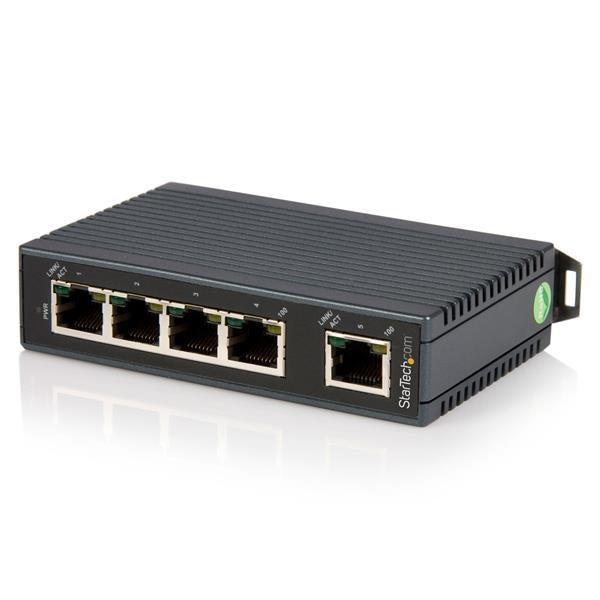

  • Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch

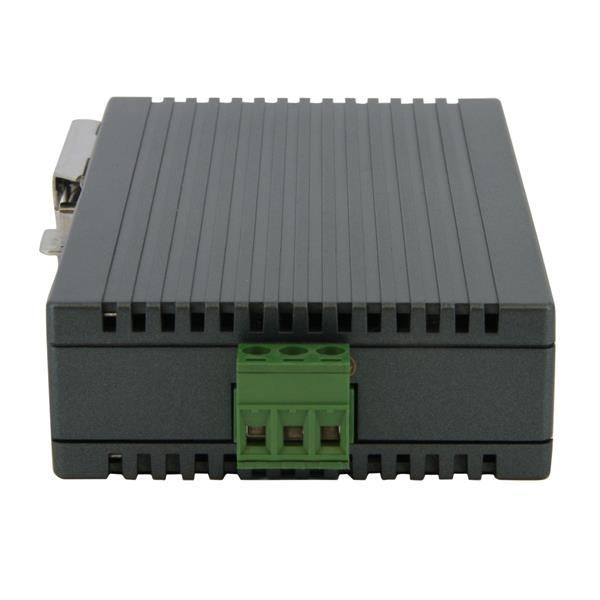

  • Wide-range 12-48V DC terminal block input

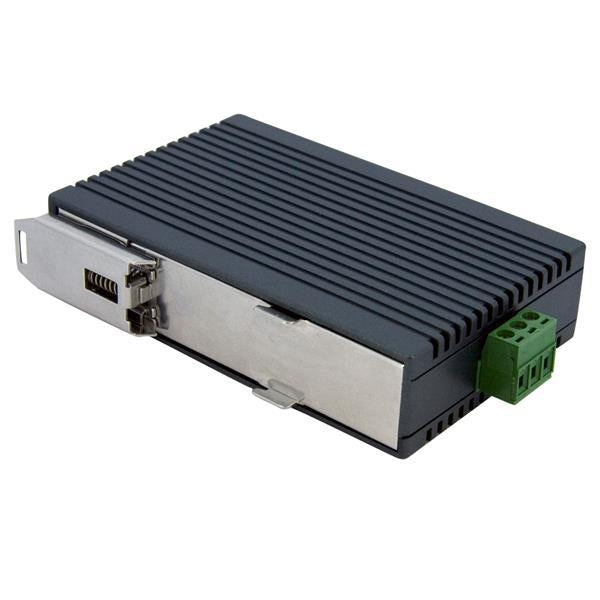

  • Easy installation with an integrated DIN rail bracket
  • Wider range of operating temperatures, ideal for industrial environments
  • IEEE 802.3az Energy-Efficient Ethernet
  • Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
  • Supports IEEE 802.3x flow control and back pressure
  • Store-and-forward switching mechanism




Management features
Switch type Unmanaged network switch Quality of Service (QoS) support Yes
Ports & interfaces

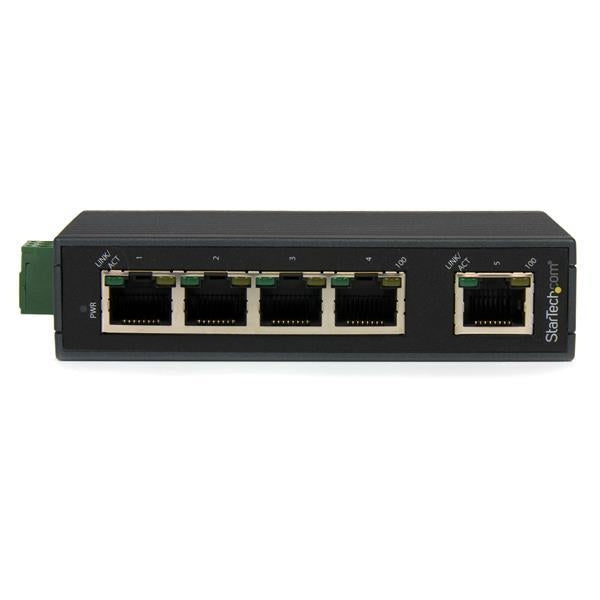

Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) Basic switching RJ-45 Ethernet ports quantity 5
Networking
Full duplex Yes 10G support No
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u Auto MDI/MDI-X Yes
Data transmission
Jumbo frames support No Store-and-forward Yes
Design
Housing material Plastic Rack mounting Yes
Regulatory Approvals EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea Colour of product Black
LED indicators Activity, Link, Power Certification CE, FCC
International Protection (IP) code IP30
Performance
Maximum cable length 100 m
Performance
Data transfer rate (max) 200 Mbit/s Buffer size 56 KB
Auto-negotiation Yes Mean time between failures (MTBF) 1179133 h
Power
Power consumption (max) 2.12 W
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -25 - 85 °C
Weight & dimensions
Width 25 mm Height 110 mm
Depth 70 mm Weight 148 g
Packaging data
Package weight 335 g Package height 79 mm
Package depth 196 mm Package width 177 mm
Packaging content

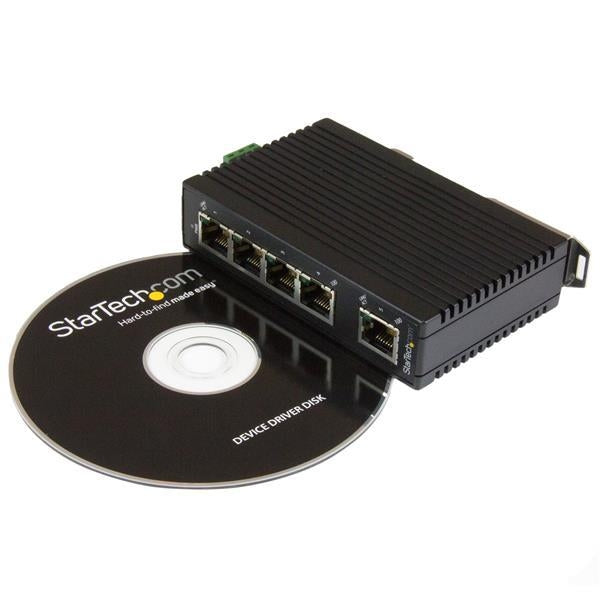

Manual Yes Terminal block included Yes
Other features
Input voltage 12 - 48
