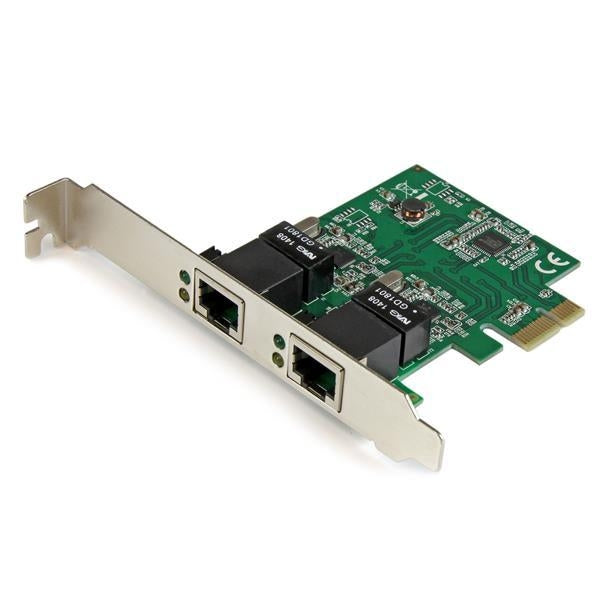

Item model number: ST1000SPEXD4
  • Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
  • Up to 9K Jumbo Frame support
  • Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
  • Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
  • Wake-on-LAN / Remote Wake-up support
  • Configured with standard profile bracket, low profile/half-height bracket included
  • Supports Pair Swap / Polarity / Skew Correction




Ports & interfaces
PCI version 2.0 Ethernet LAN (RJ-45) ports 2
Internal Yes Interface Ethernet
Connectivity technology Wired Host interface PCI-E
Bandwidth
Full duplex Yes Data transfer rate (max) 2000 Mbit/s
Networking
VLAN tagging Yes Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000BaseT(X) Ethernet LAN Yes
Flow control support Yes Jumbo frames 9000
Jumbo frames support Yes Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x

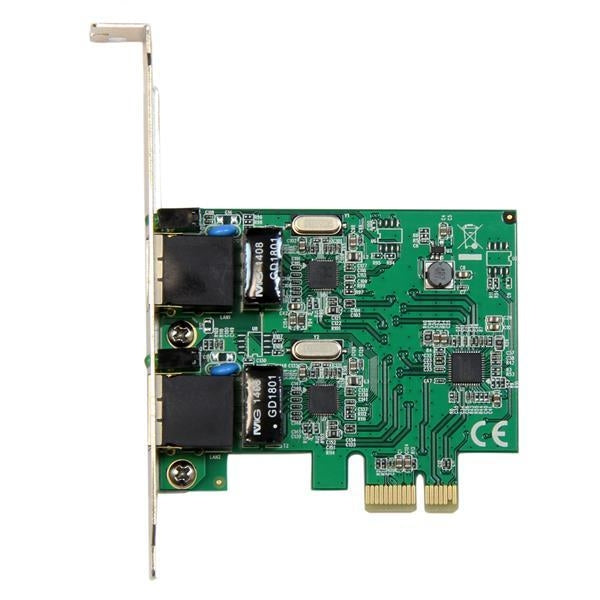

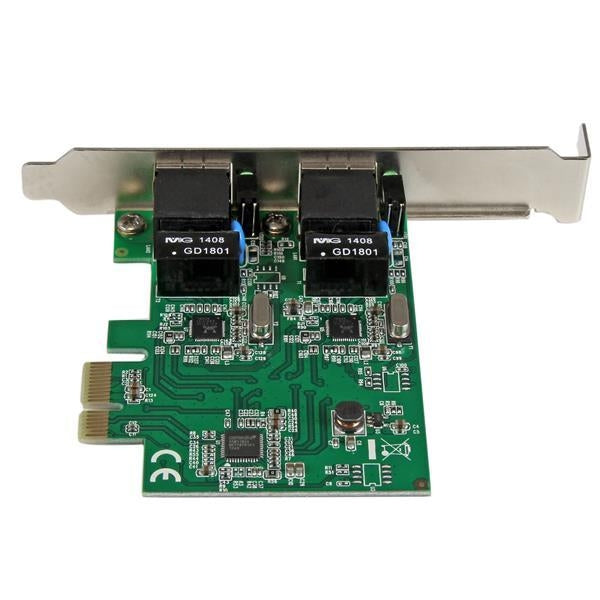

Chipset Realtek - RTL8111E, Asmedia - ASM1182E
Design

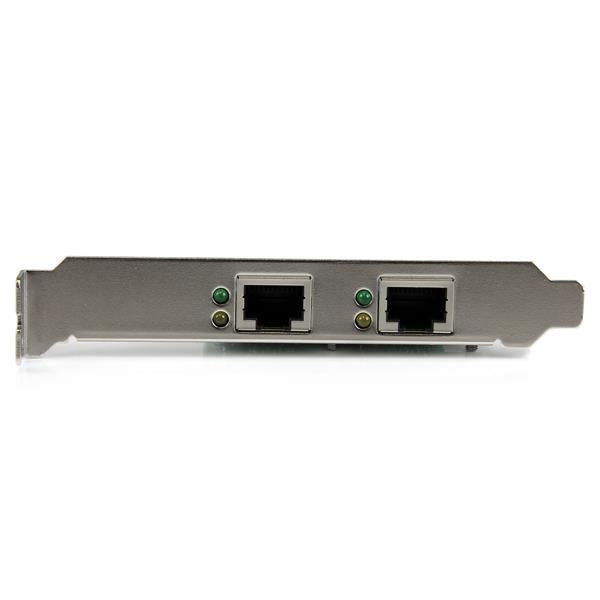

LED indicators Activity, Link
Performance
Auto MDIX IEEE Yes Wake-on-LAN ready Yes
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Performance
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Linux operating systems supported Yes
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012
Weight & dimensions
Width 18 mm Package weight 133 g
Package height 30 mm Height 120 mm
Package depth 170 mm Depth 92.6 mm
Package width 142 mm Weight 51 g
Certificates
Certification CE, FCC RoHS compliance Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) 0 - 100 °C

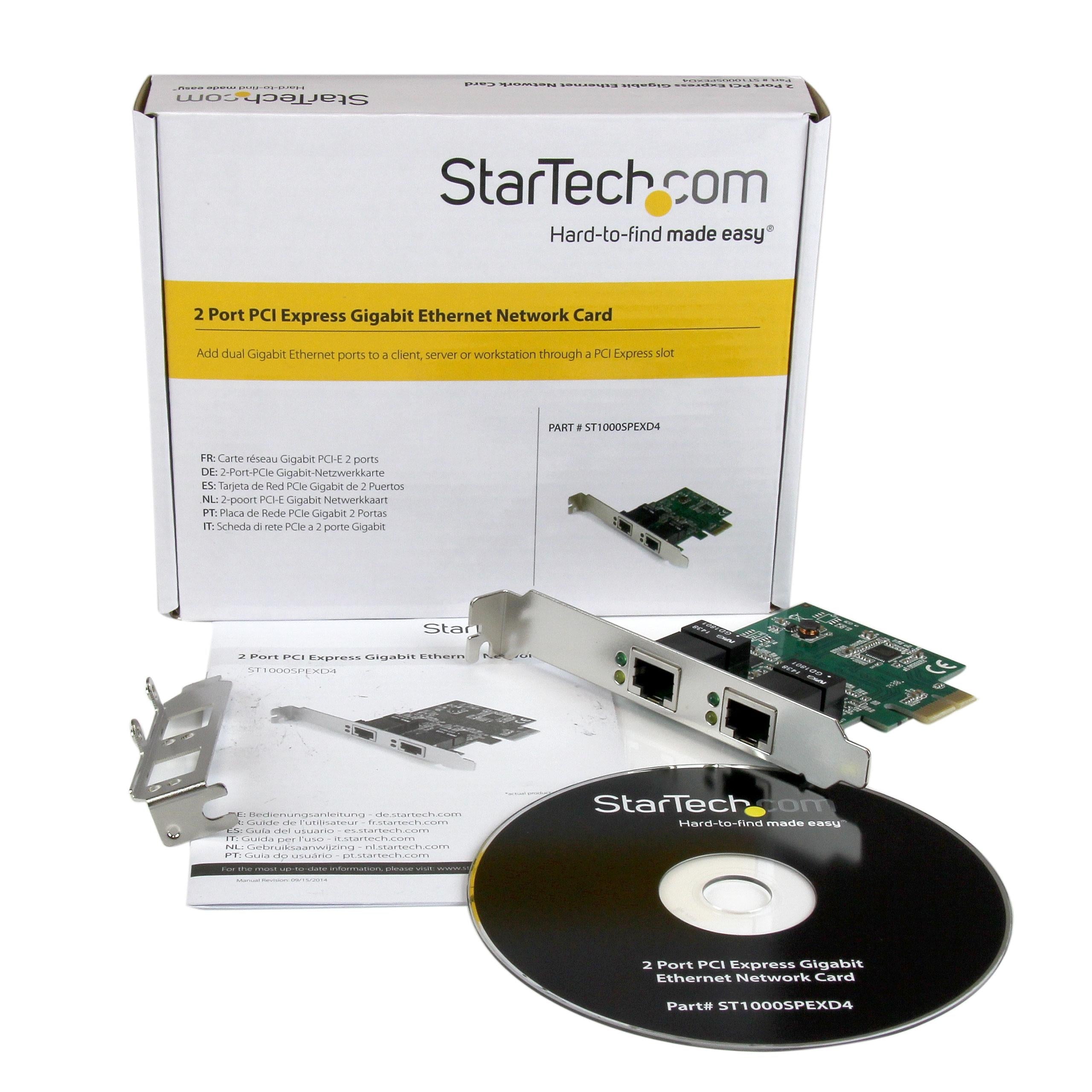

Packaging content
Manual Yes Drivers included Yes
Low-profile bracket Yes
