Item model number: ST7300USBME
  • Protects your connected devices with 15kV ESD protection
  • Flexible, wide-range 7-48V DC terminal block power input (standard AC power adapter not supported or included)
  • Ideal for harsh industrial environments, with an extended operating temperature range

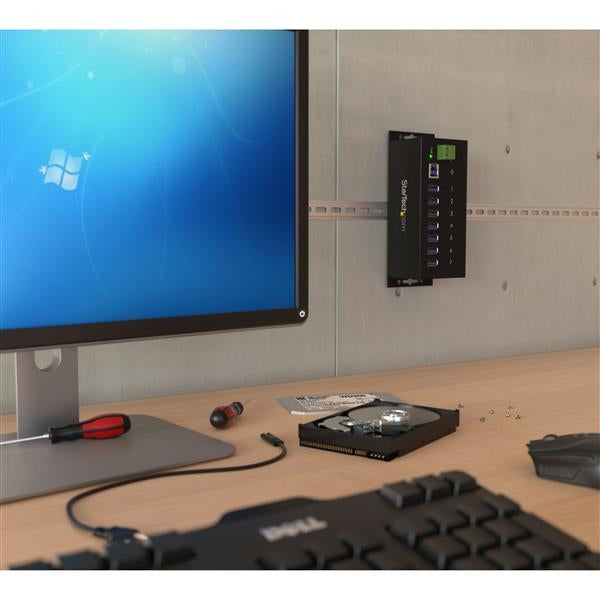

  • Rugged, wall-mountable metal housing plus optional DIN rail mounts
  • Supports USB Battery Charging Specification Rev. 1.2
  • Seven SuperSpeed USB 3.0 hub ports, with throughput support up to 5 Gbps
  • Backward compatible with USB 2.0 and 1.x devices




Ports & interfaces
Hub interfaces USB 3.0 (3.1 Gen 1) Type-A Terminal block port Yes
Ports quantity 7 Host interface USB 3.0 (3.1 Gen 1) Type-B
Performance
Surge protection Yes Data transfer rate 5000 Mbit/s
Certification CE, FCC, RoHS
Power
Input voltage 7-48 Power source type DC
Design
Material Steel Colour of product Black
LED indicators Power
Operational conditions
Storage temperature (T-T) -20 - 85 °C Operating temperature (T-T) 0 - 70 °C
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 54 mm Package weight 610 g
Package height 68 mm Height 45 mm
Package depth 290 mm Depth 145 mm
Package width 190 mm Weight 325 g

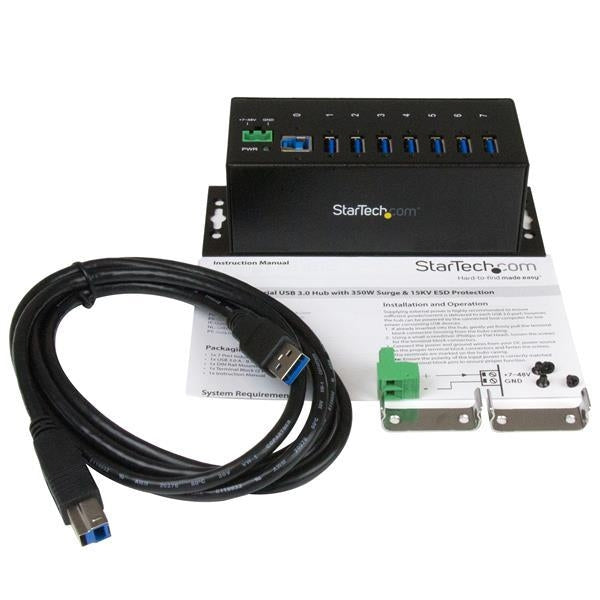

Packaging content
Manual Yes Wall mounting kit Yes
Cables included USB Terminal block included Yes
Other features
Chipset Genesys Logic - GL3520
