StarTech.com

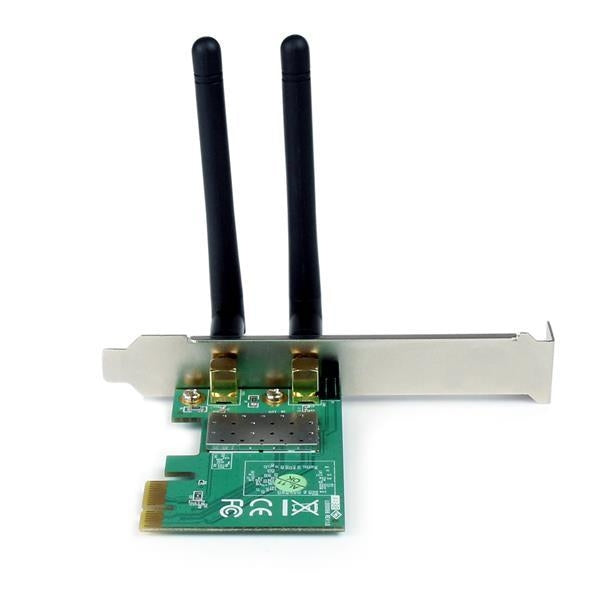

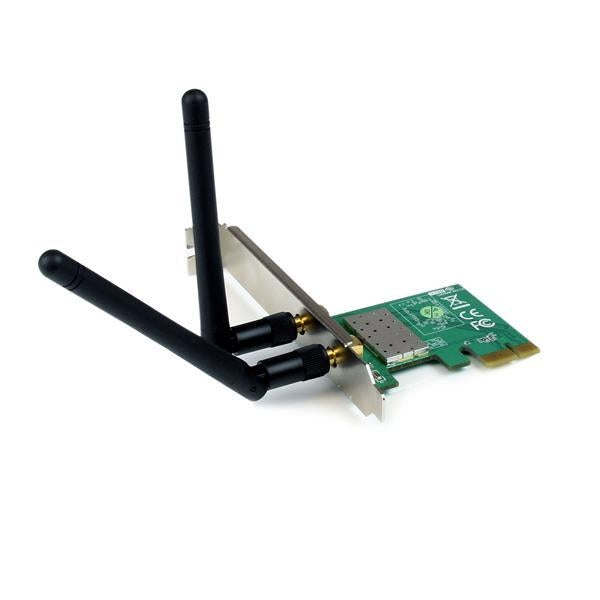

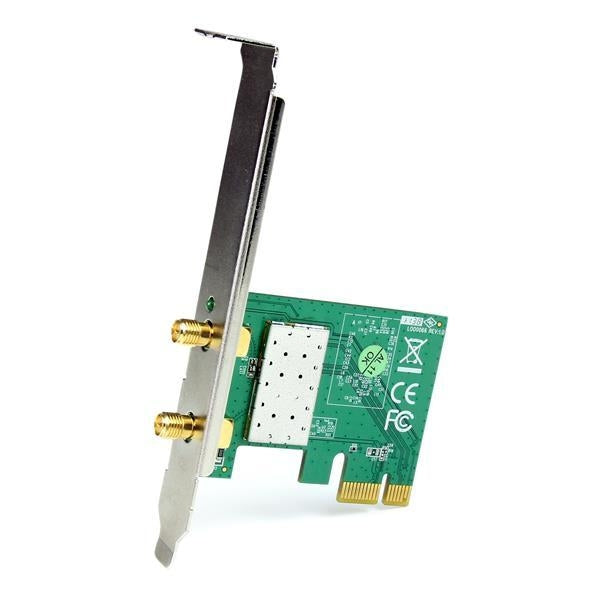

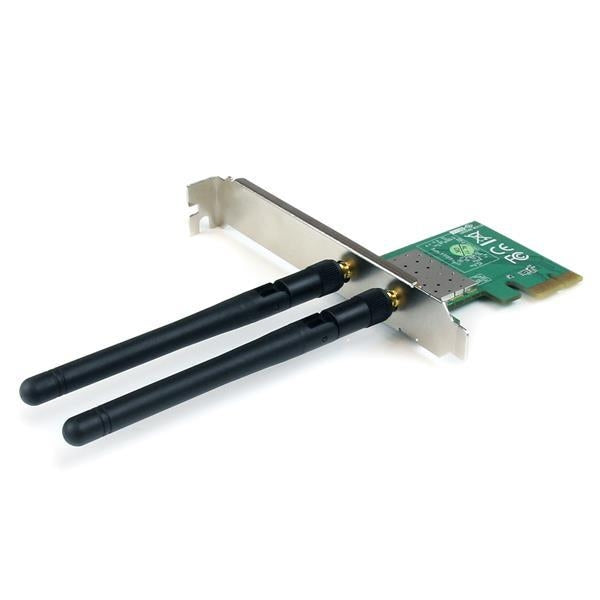

StarTech Network 300Mbps PCI Express 802.11b/g/n Network Adapter Card 2T2R Retail (PEX300WN2X2)
$42.98 CAD
/
Shipping calculated at checkout.
Item model number: PEX300WN2X2
- 2 Transmitter/2 Receiver (2x2:2) antenna configuration
- Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
- Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
- Supported security features: WEP (64-128-bit), WPA, WPA2, WPS
- Support for WMM/WMM-PS Quality of Service (QoS)
- Infrastructure and Ad-Hoc network modes support
- Dual detachable 2dBi antennas
- Includes Low Profile/Half-Height installation bracket
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Internal | Yes | Interface | WLAN |
| Connectivity technology | Wireless | Host interface | PCI-E |
| Bandwidth | |||
|---|---|---|---|
| Full duplex | Yes | Data transfer rate (max) | 300 Mbit/s |
| Bandwidth note | 20/40 | ||
| Networking | |||
|---|---|---|---|
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n | Modulation | CCK,DBPSK,DQPSK,DSSS,OFDM |
| Chipset | Ralink RT5392 | ||
| Wireless LAN features | |||
|---|---|---|---|
| Wi-Fi | Yes | Wi-Fi standards | IEEE 802.11n |
| WLAN data transfer rates supported | 300 Mbit/s | Top Wi-Fi standard | IEEE 802.11n |
| Antenna | |||
|---|---|---|---|

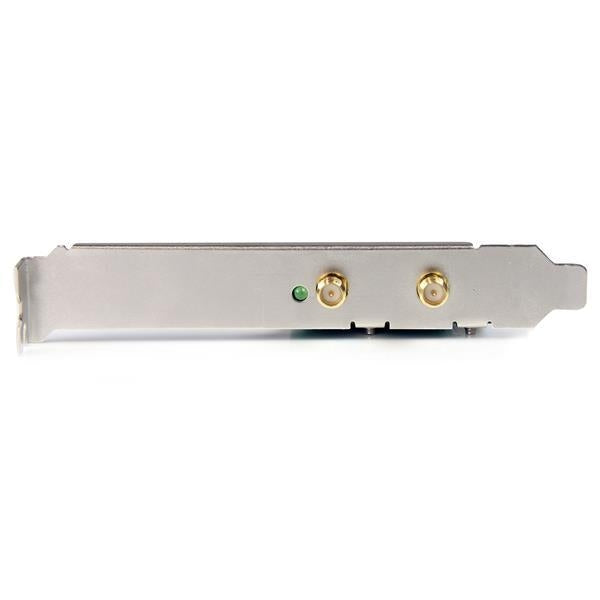

| Antenna type | External | Antenna connector type | RP-SMA |
| Antennas quantity | 2 | Antenna | Yes |
| Frequency range | 2.4 - 2.484 GHz | Gain | 2.2 dBi |
| Protocols | |||
|---|---|---|---|
| Supported network protocols | CSMA/CA | ||
| Design | |||
|---|---|---|---|
| LED indicators | Activity, Link | ||
| Performance | |||
|---|---|---|---|
| Security algorithms | AES,TKIP,WEP,WPA,WPA2-PSK | ||
| Performance | |||
|---|---|---|---|
| Linux operating systems supported | Yes | Server operating systems supported | Windows Server 2003,Windows Server 2008 R2 |
| Channel bandwidth | 40 MHz | Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| System requirements | |||
|---|---|---|---|
| Mac compatibility | Yes | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 49 mm | Package weight | 162 g |
| Package height | 34 mm | Height | 18 mm |
| Package depth | 165 mm | Depth | 75 mm |
| Package width | 140 mm | Weight | 36 g |
| Certificates | |||
|---|---|---|---|
| Certification | CE, FCC | RoHS compliance | Yes |
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 5 - 95% | Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C | ||
| Packaging content | |||
|---|---|---|---|

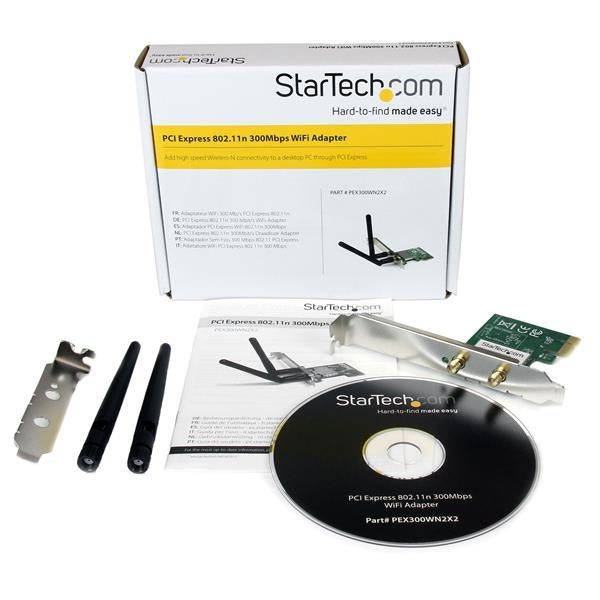

| Number of products included | 1 pc(s) | Manual | Yes |
| Drivers included | Yes | Low-profile bracket | Yes |
