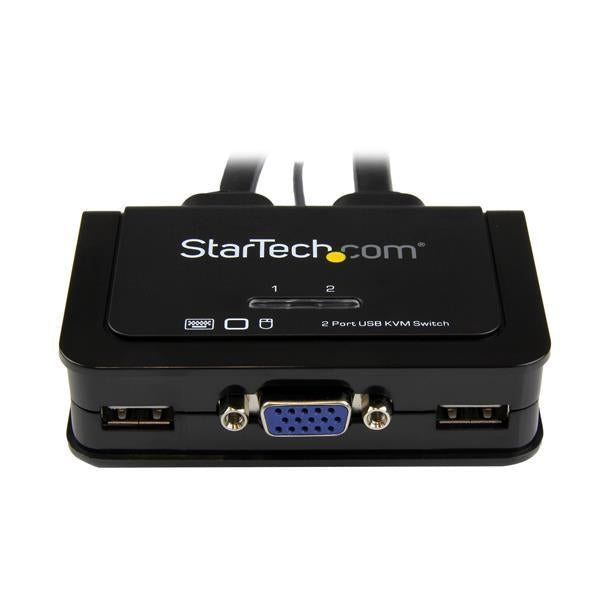

Item model number: SV211USB
  • Supports resolutions up to 2048x1536
  • Switch PCs via push-button, hot-keys or switching software (included)
  • Space-saving design, minimal footprint

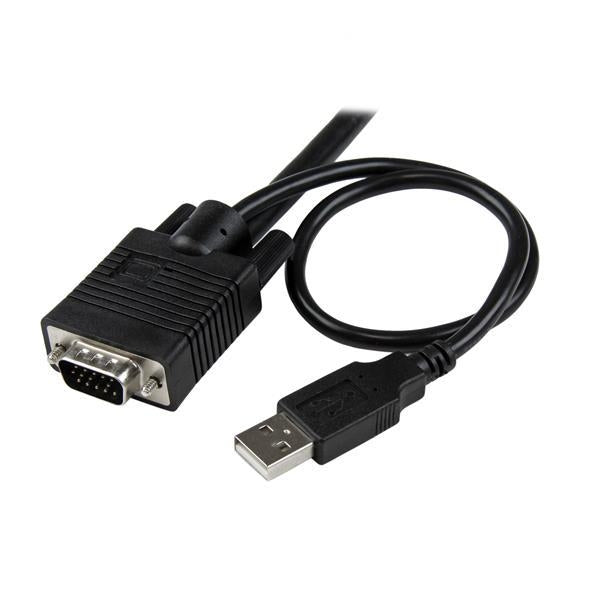

  • Integrated KVM cables and remote switch
  • Switching software supports PC and Mac® platforms
  • USB Powered - No external power adapter required
  • Supports hot-plugging
  • Remote switch on 1.5m (5ft.) cable




Ports & interfaces
Console USB ports quantity 2 Audio connections No
Console ports USB A,VGA (D-Sub) Cable length 0.85 m
Video port type VGA Mouse port type USB
Keyboard port type USB Number of computers controlled 2
Video
Maximum resolution 2048 x 1536 pixels Maximum digital resolution 2048 x 1536 pixels
Design
Rack mounting No Material Plastic
Colour of product Black LED indicators Yes
Display
Built-in display No
Performance
Hot-Plug support Yes Daisy chain No
Power
USB powered Yes
System requirements
Mac operating systems supported Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Operating relative humidity (H-H) 0 - 90% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Certificates
Certification CE, FCC RoHS compliance Yes
Weight & dimensions
Width 66 mm Package weight 442 g
Package height 60 mm Height 23 mm
Package depth 247 mm Depth 88 mm
Package width 160 mm Weight 380 g
Packaging content
Manual Yes
Other features
Audio support Yes IP control No
