Item model number: NETRS2321P
  • Rugged aluminum housing delivers reliable performance
  • Fast, 460.8Kbps baud rate
  • Mounts to a surface or on a DIN rail, with a built-in mounting bracket and included DIN rail clips
  • Compatible with the free, StarTech.com Serial Device Application Software for iOS, Android, and Chrome Browser (NETRSAPP)
  • Supports Telnet, for OS independent communication, perfect for Windows, Mac, and Linux® users
  • Configurable using the software utility (Windows only), or web browser
  • Supports DHCP, HTTP, ICMP, ARP, IP, UDP, TCP
  • Compliant with IEEE 802.3 and IEEE 802.3u standards




Technical details
Baud rate 460.8 Kbit/s Data bits 5, 6, 7, 8
RS-232 signals Rx,Tx Flow Control type N, RTS/CTS
Serial interface type RS-232 Flow control support Yes
Networking standards IEEE 802.3u Serial ports quantity 1
Stop bits 1, 1.5, 2 Ethernet LAN data rates 10,100 Mbit/s
Ports & interfaces
Cabling technology 10/100Base-T(X) Ethernet LAN (RJ-45) ports 1

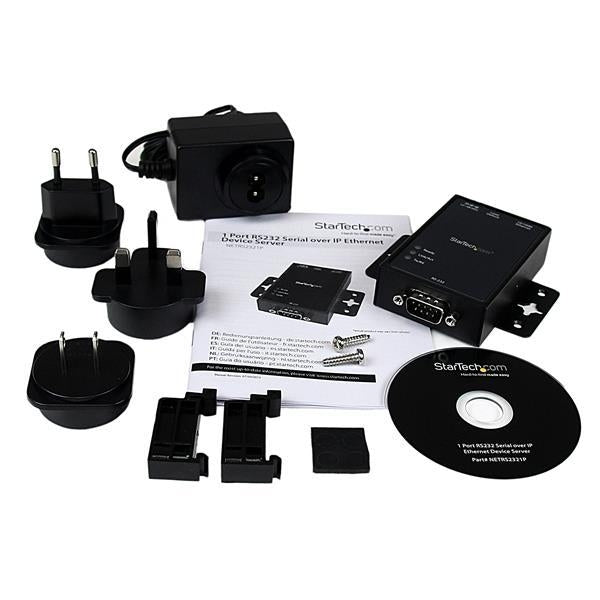

Packaging content
AC adapter included Yes
Design
Housing material Aluminium RoHS compliance Yes
Colour of product Black Certification CE, FCC
Operational conditions
Storage temperature (T-T) -10 - 70 °C Operating temperature (T-T) 0 - 60 °C
Operational conditions
Operating relative humidity (H-H) 0 - 90%
Weight & dimensions
Package length 14.4 cm Package weight 430 g
Package height 61 mm Dimensions (WxDxH) 53 x 86 x 23 mm
Package width 176 mm Weight 90 g
Software
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Indication
Connectivity LEDs Tx / Rx LED indicators Activity, Link, Ready
Link/Act LED Yes
Protocols
Supported network protocols DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet
Power
Compatible power plug types AU,EU,UK,US Plug type Type M
Output voltage 12 V Power consumption 360 mA
Input voltage 100 - 240
