StarTech.com

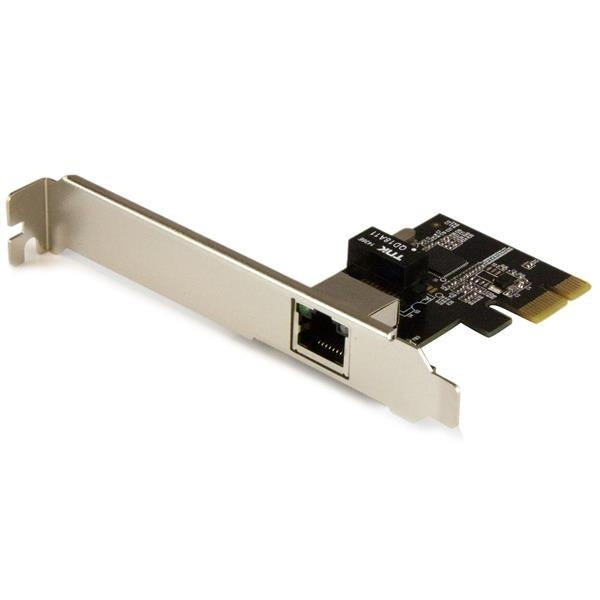

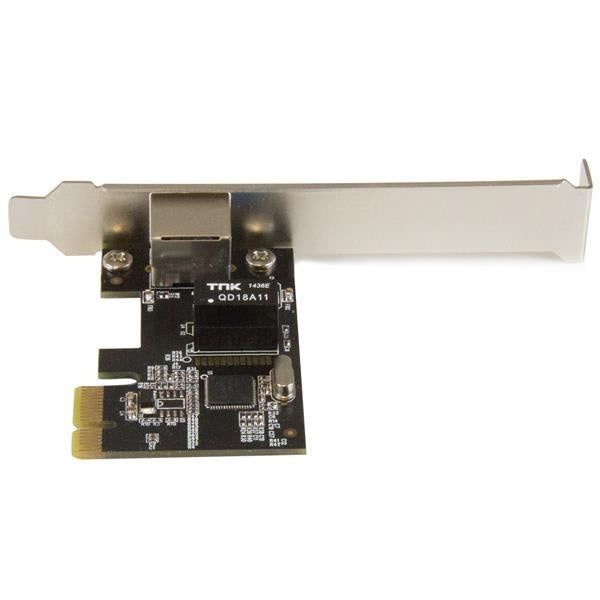

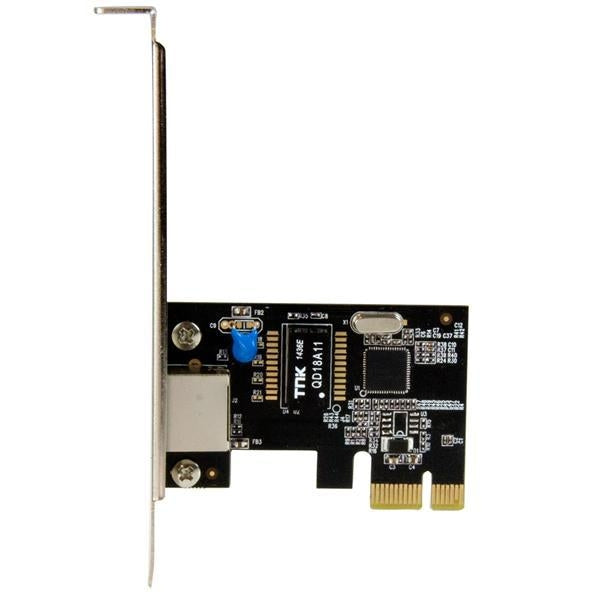

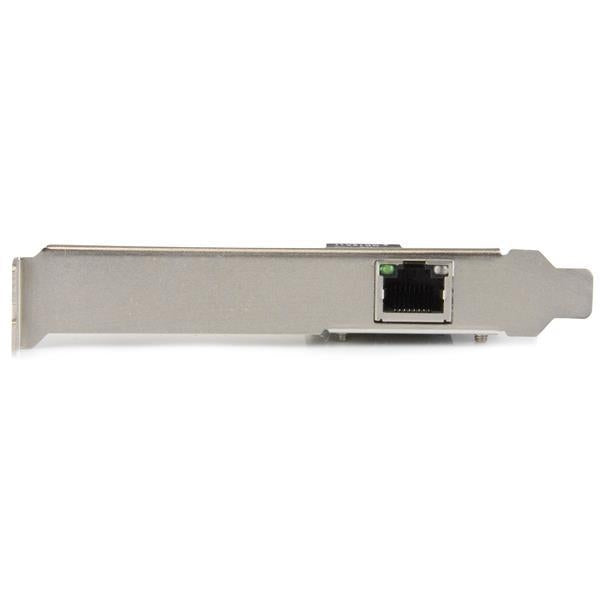

StarTech Network 1-Port PCI-Express Gigabit Ethernet Network Card Intel I210 NIC Retail (ST1000SPEXI)
$52.98 CAD
/
Shipping calculated at checkout.
Item model number: ST1000SPEXI
- Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot
- Intel I210-AT chipset
- PXE network boot
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Auto MDIX support
- Autonegotiation support
- Wake-on-LAN support
- Up to 9K jumbo frame support
- IEEE802.3az Energy Efficient Ethernet (EEE)
- Supports IEEE 802.1Q VLAN tagging
- Supports Audio-Video Bridging
- Full or low-profile (LP bracket included) installation
- Full duplex support
Specification
| Ports & interfaces | |||
|---|---|---|---|
| Ethernet LAN (RJ-45) ports | 1 | Internal | Yes |
| Interface | Ethernet | Connectivity technology | Wired |
| Host interface | PCI-E | ||
| Bandwidth | |||
|---|---|---|---|
| Full duplex | Yes | Data transfer rate (max) | 2000 Mbit/s |
| Networking | |||
|---|---|---|---|
| VLAN tagging | Yes | Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Yes | Jumbo frames support | Yes |
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x | Chipset | Intel I210-AT |
| Ethernet LAN data rates | 10,100,1000 Mbit/s | ||
| Design | |||
|---|---|---|---|
| Colour of product | Black, Metallic | LED indicators | Activity |
| Performance | |||
|---|---|---|---|
| Auto MDIX IEEE | Yes | Wake-on-LAN ready | Yes |
| Auto-negotiation | Yes | ||
| Performance | |||
|---|---|---|---|
| Linux operating systems supported | Yes | Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 |
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 66 mm | Package weight | 104 g |
| Package height | 30 mm | Height | 18 mm |
| Package depth | 170 mm | Depth | 120 mm |
| Package width | 142 mm | Weight | 35 g |
| Certificates | |||
|---|---|---|---|
| Certification | CE, FCC | RoHS compliance | Yes |
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 20 - 80% | Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C | ||

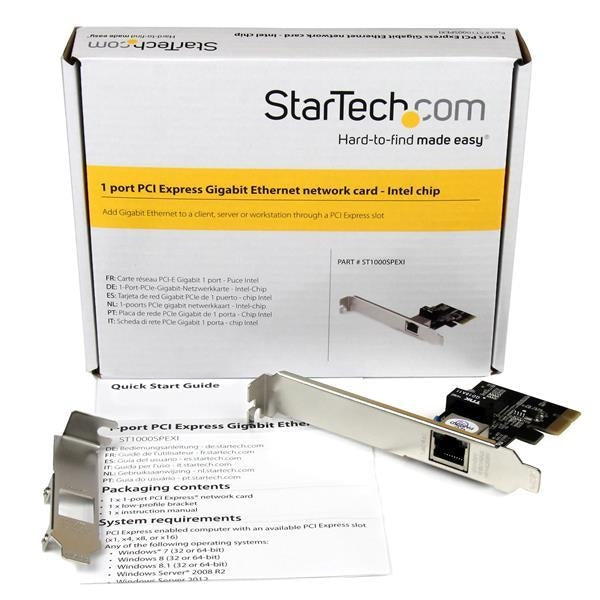

| Packaging content | |||
|---|---|---|---|
| Manual | Yes | Mounting brackets included | Yes |
