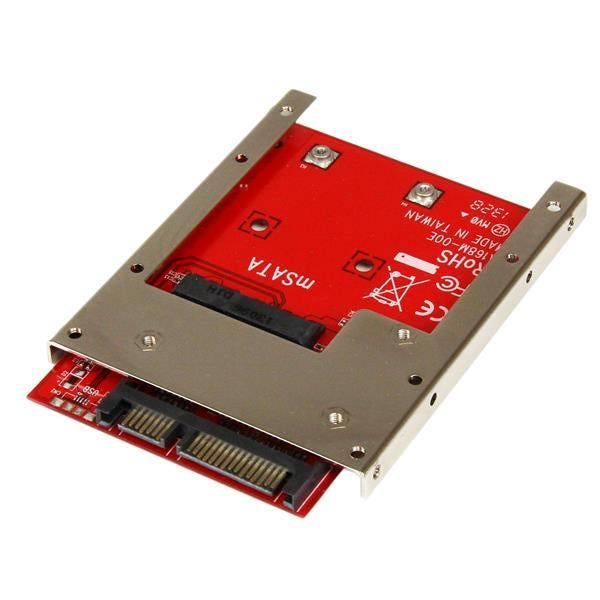

StarTech mSATA SSD to 2.5in SATA Adapter Converter (SAT32MSAT257)

Item model number: SAT32MSAT257

• Open frame aluminum bracket
• Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
• Supports 7mm or larger 2.5" SATA bays
• 2.5in SATA form factor housing
• Supports full length mSATA SSD Solid State Drives

Specification

Ports & interfaces
Output interface	mSATA	SATA revision	3.0
Internal	Yes	Host interface	SATA

Performance
Data transfer rate (max)	6 Gbit/s

Design
RoHS compliance	Yes	Colour of product	Black, Red, Silver
Certification	CE, FCC

System requirements
Mac operating systems supported	Yes	Windows operating systems supported	Yes

System requirements
Linux operating systems supported	Yes

Operational conditions
Operating temperature (T-T)	-40 - 85 °C

Weight & dimensions
Width	70 mm	Package weight	114 g
Package height	30 mm	Height	7 mm
Package depth	142 mm	Depth	100 mm
Package width	170 mm	Weight	48 g

Packaging content
Manual	Yes	Mounting brackets included	Yes
