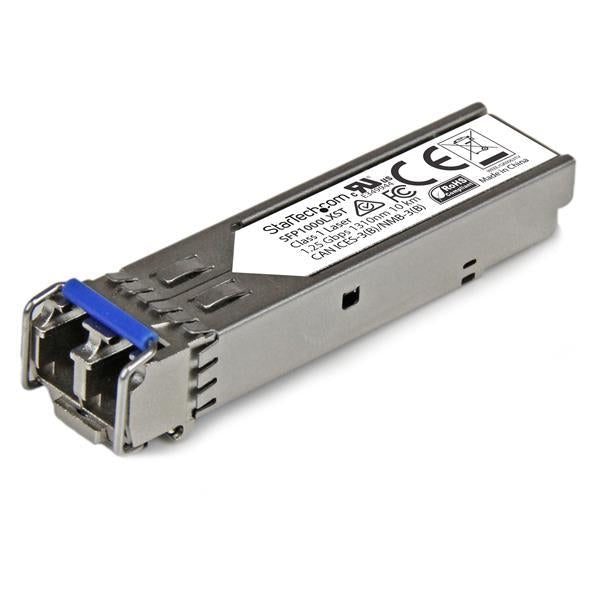

Item model number: SFP1000LXST
  • Add reliable and cost-effective Gigabit Ethernet connections over single-mode fiber with this SFP module
  • MSA Compliant 1G SFP delivers dependable Gigabit Ethernet connections over single-mode fiber cable for 1000Base-LX compliant networks with LC connector
  • Provides maximum data rates up to 1 Gbps, maximum distance up to 10 km (6.2 mi) and optical wavelength of 1310nm
  • Meets or exceeds MSA (Multi-Source Agreement) industry standards and backed by lifetime warranty and free lifetime technical support
  • Supports Digital Diagnostics Monitoring (DDM / DOM) / Single mode SFP / Hot-pluggable Gigabit SFP / 1G SFP / Gigabit transceiver / Mini-GBIC / SM SFP / SMF SFP / SFP transceiver / Fiber Transceiver / Mini-GBIC Transceiver / 1000Base-LX Transceiver / Small Form Pluggable




Networking
Data transfer rate (max) 1250 Mbit/s Fiber optic connector LC
SFP transceiver type LX Networking standards IEEE 802.3z
Interface type SFP
Performance
Hot-Plug support Yes Wavelength 1310 nm
Digital Diagnostics Monitoring (DDM) Yes Housing material Aluminium
Single-mode fiber (SMF) supported Yes Maximum transfer distance 10000 m
Colour of product Silver Duplex system Full
Cable type Fiber optic Wavelength-division multiplexing (WDM) No
Technical details
Full duplex Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 13.9 mm Package weight 95 g
Package height 30 mm Height 12.6 mm
Package depth 120 mm Depth 58.4 mm
Package width 90 mm Weight 30 g
Certificates
Certification CE, FCC, UR RoHS compliance Yes
Packaging content
Number of products included 1 pc(s)
