Item model number: SM21BMU31C3
  • Leverage your SATA M.2 SSD to add fast external storage to your USB-C enabled host (USB-C cable included)
  • Supports USB 3.1 Gen 2 (10Gbps)
  • Compatible with Thunderbolt 3 USB-C port

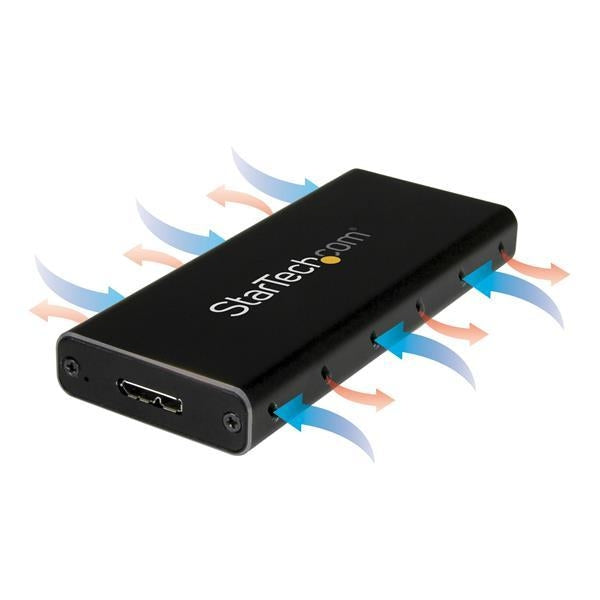

  • Solid aluminum housing with ventilation for optimum heat dissipation
  • Broad compatibility with support for the most common M.2 SATA SSDs (30mm, 42mm, 60mm, 80mm)
  • Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
  • Supports SATA I/II/III (1.5, 3, 6Gbps)




Storage
Supported storage drive interfaces M.2 Number of storage drives supported 1
Storage drive size M.2 Supported storage drive lengths 80 mm
Ports & interfaces
USB ports quantity 1 USB connector gender Female
USB version 3.1 (3.1 Gen 2) USB connector type Micro-USB B
USB connectivity Yes Integrated USB cable No
Design
Product type SSD enclosure RoHS compliance Yes
Material Aluminium Colour of product Black, Silver
LED indicators Activity, Power Certification CE, FCC
Performance
Mean time between failures (MTBF) 1000000 h Chipset ASMedia - ASM1351
Performance
UASP support Yes Data transfer rate 10 Gbit/s
Plug and Play Yes
Power
Power source type USB
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 95% Storage temperature (T-T) -10 - 65 °C
Weight & dimensions
Width 42 mm Package weight 132 g
Package height 30 mm Height 13 mm
Package depth 160 mm Depth 99 mm
Package width 130 mm Weight 48 g

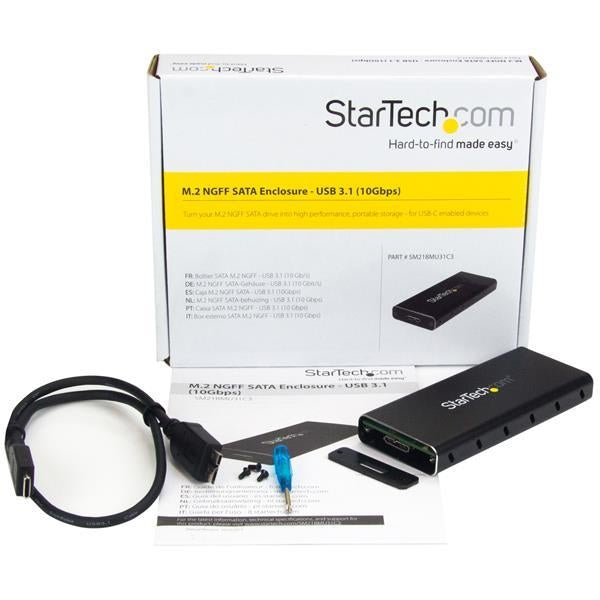

Packaging content
Cables included USB Screws included Yes
Screwdriver included Yes Quick installation guide Yes
