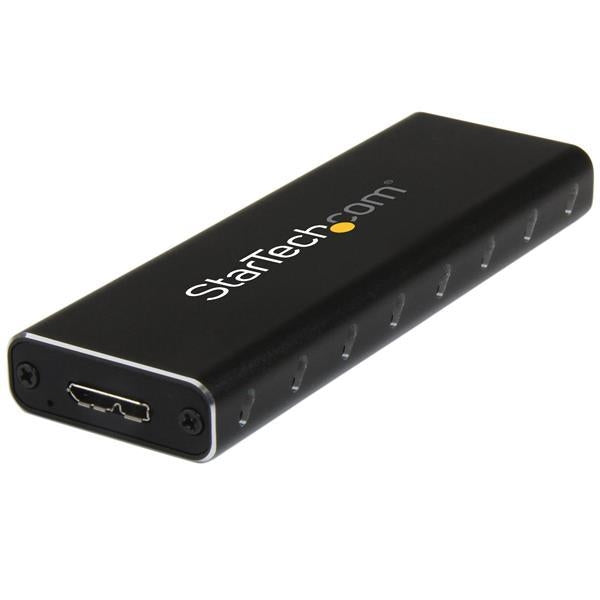

StarTech M.2 to SATA SSD Enclosure - USB 3.0 with UASP - External Enclosure (SM2NGFFMBU33)

Item model number: SM2NGFFMBU33

• Boost external performance by leveraging the speed of your SATA M.2 SSD in a UASP-supported USB 3.0 enclosure
• Maximize portability with a small footprint, lightweight design and USB-powered performance

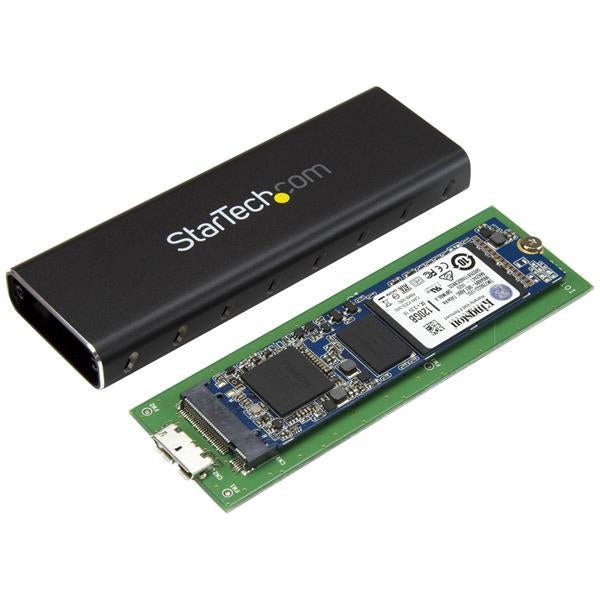

• Broad compatibility with support for the most common SATA M.2 SSDs (30mm, 42mm, 60mm, 80mm)
• Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Compatible with SATA revision I/II/III (1.5 / 3.0 / 6.0 Gbps)

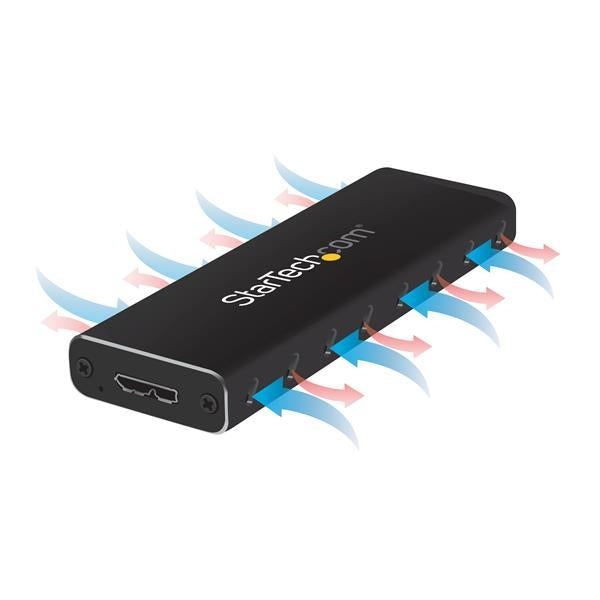

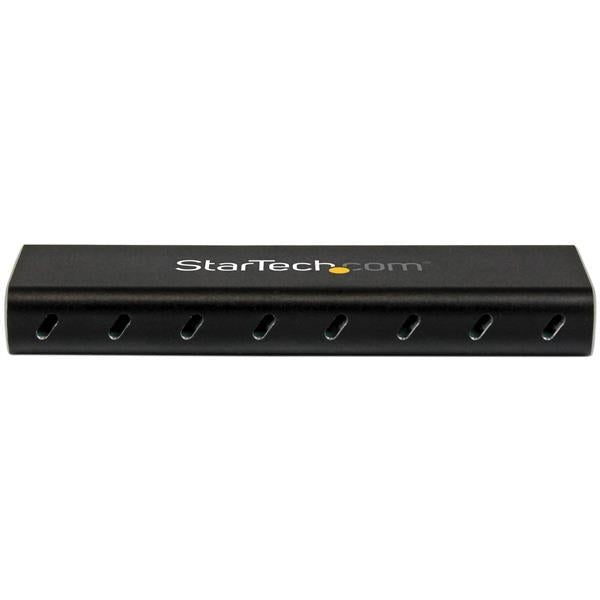

• Aluminum housing with ventilation holes for added heat dissipation

Specification

Storage
Supported storage drive interfaces	M.2	Number of storage drives supported	1
Storage drive size	M.2	Supported storage drive lengths	30,42,60,80 mm

Ports & interfaces
USB ports quantity	1	USB connector gender	Female

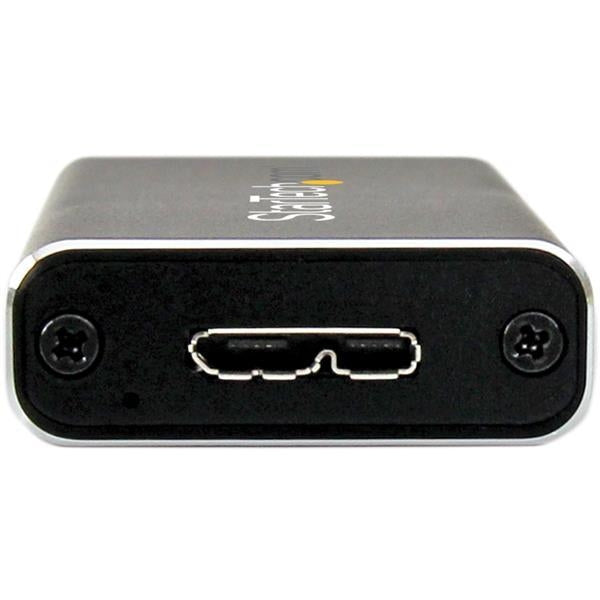

USB version	3.0 (3.1 Gen 1)	USB connector type	Micro-USB B
USB connectivity	Yes	Integrated USB cable	No

Design
Product type	SSD enclosure	RoHS compliance	Yes
Material	Aluminium	Colour of product	Black
Certification	FCC, CE

Performance
Chipset	Asmedia - ASM1153

Performance
UASP support	Yes	Data transfer rate	6 Gbit/s

Power
Power source type	USB

Operational conditions
Operating relative humidity (H-H)	5 - 95%	Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 85 °C

Weight & dimensions
Width	35 mm	Package weight	100 g
Package height	30 mm	Height	15 mm
Package depth	160 mm	Depth	100 mm
Package width	130 mm	Weight	68 g

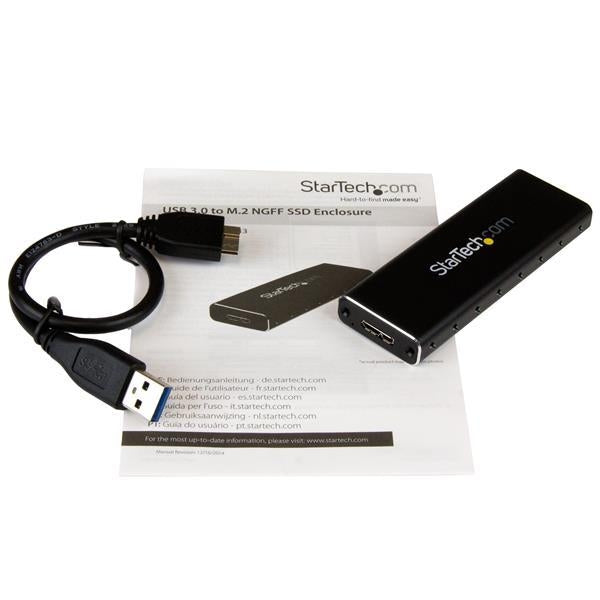

Packaging content
Manual	Yes	Cables included	USB
Screws included	Yes	Screwdriver included	Yes
