Item model number: SV431DPUA
  • 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
  • Full plug-and-play support with USB keyboards, mice, and connected peripherals

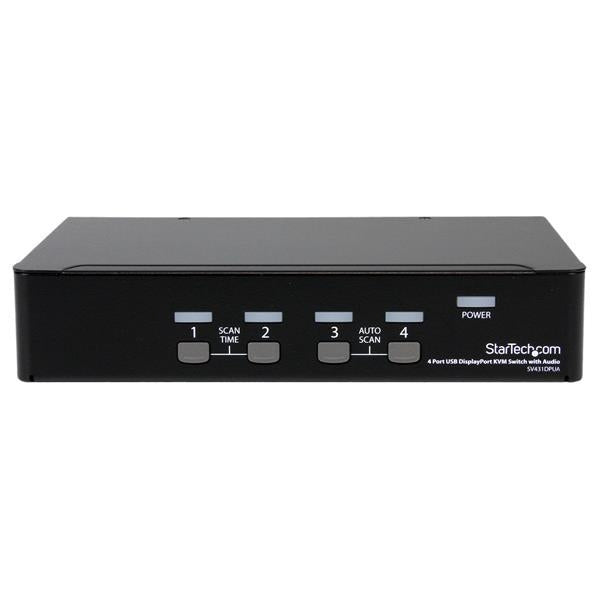

  • Hotkey and push-button switching
  • Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
  • OS independent - No driver or software required
  • Supports a maximum resolution of 3840x2400 at lower refresh rates
  • Supports DDC2B for monitor detection
  • Supports hot-plug, un-plug and link status-failure detection
  • Integrated 2 port USB 2.0 hub
  • User-defined scan time intervals
  • VESA and CEA compliant
  • Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters

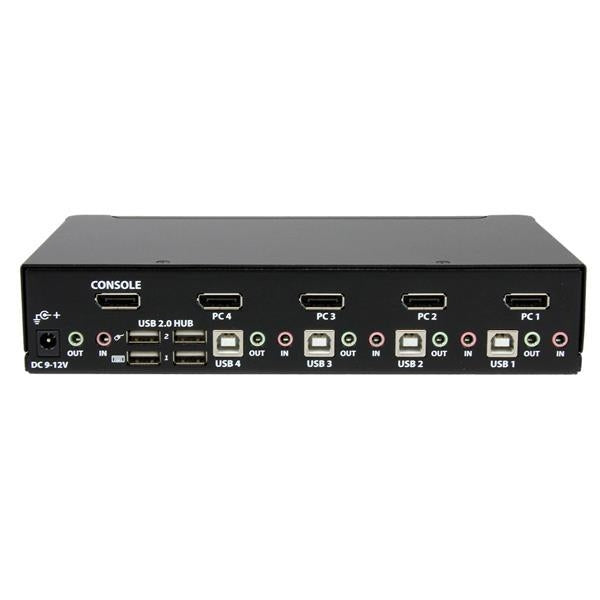

Ports & interfaces
Audio connections Yes Number of microphone inputs 4
USB 2.0 hub ports quantity 2 Console ports DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
Headphone outputs 4 Video port type DisplayPort
Mouse port type USB Keyboard port type USB
DC-in jack Yes Number of computers controlled 4
Video
Maximum resolution 3840 x 2400 pixels Maximum digital resolution 2560 x 1600 pixels
Design
Hot keys Yes Material Steel
Colour of product Black Push button Yes
LED indicators Yes
Display
Built-in display No
Performance
Number of users 1 user(s) Hot-Plug support Yes
DDC2B support Yes Daisy chain No
Audio channels 7.1 Plug and Play Yes
Power
AC input voltage 110-240
Power
Compatible power plug types AU,EU,UK,US Plug type Type M
Output current 1.5 A Output voltage 12 V
External power adapter Yes Input current 0.8
Technical details
USB hub Yes
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Certificates
Certification CE, FCC, UL, VESA, CEA RoHS compliance Yes
Weight & dimensions
Width 220.7 mm Package weight 1.7 kg
Package height 206 mm Height 44 mm
Package depth 400 mm Depth 130.6 mm
Package width 88 mm Weight 1.1 kg

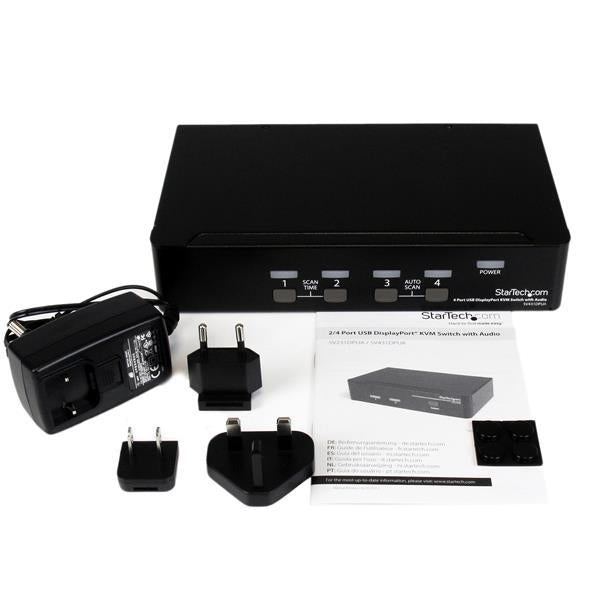

Packaging content
Manual Yes AC adapter included Yes
Rubber feet Yes
Other features
Audio support Yes IP control No
