Item model number: PEX1PCI1

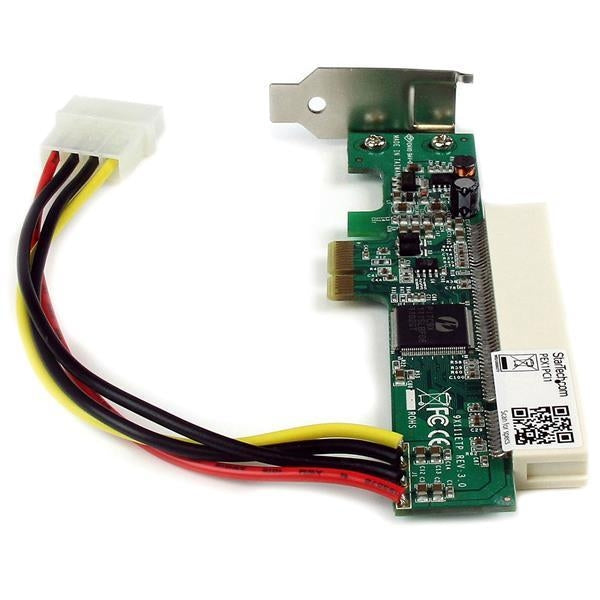

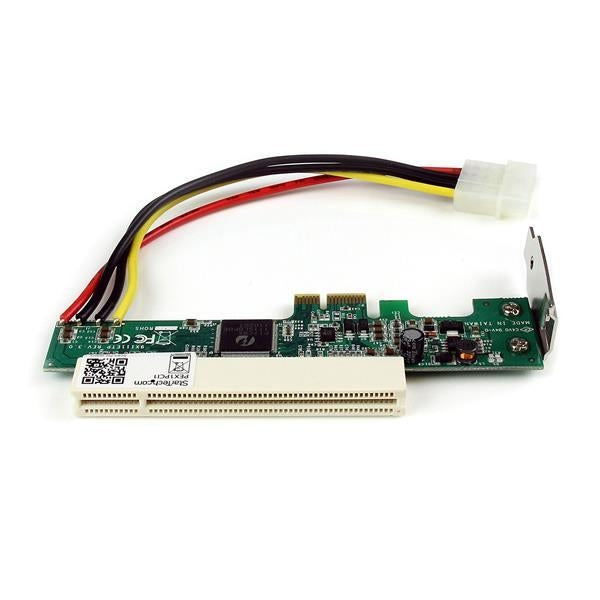

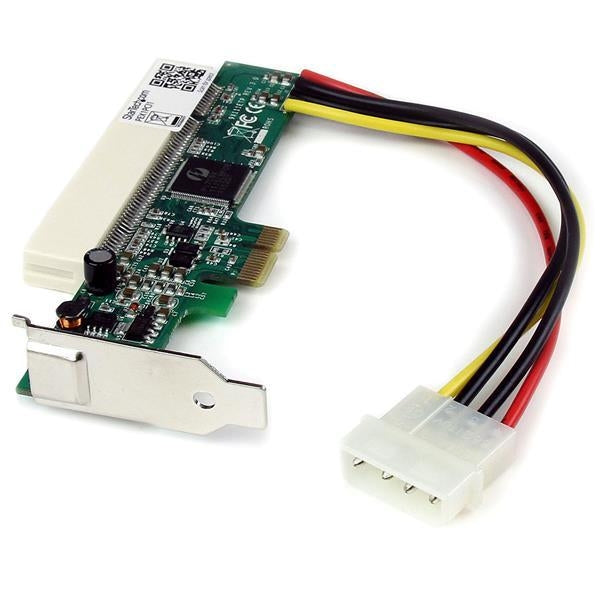

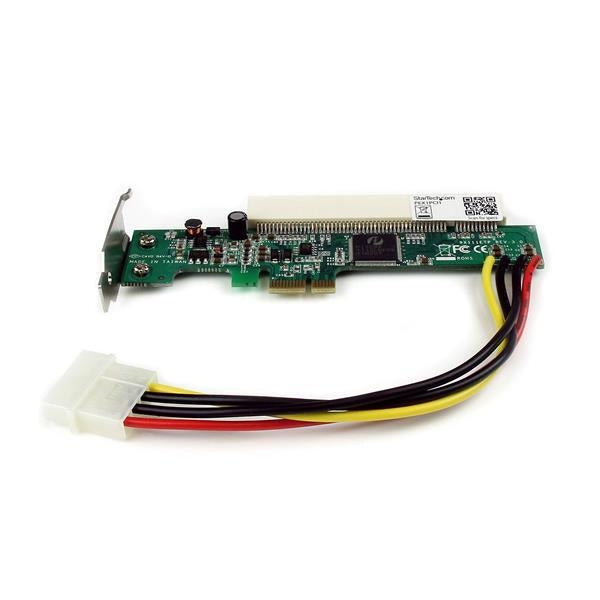

  • Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card
  • PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth
  • LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
  • Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0
  • No driver or software installation




Ports & interfaces
Output interface PCI 32-bit Host interface PCIe
Performance
Package length 8.27 mm Chipset PERICOM PI7C9X110BNBE
Design
Colour of product Red Certification CE, FC, ROHS
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Weight & dimensions
Width 70 mm Height 20 mm
Depth 135 mm
Weight & dimensions
Package weight 140 g Package height 40 mm
Package depth 210 mm Package width 140 mm
Weight 52 g
Other features
Power requirements 3.3V Platform PC
Connectivity technology Wired Mac compatibility No
Compatible operating systems Windows 2000/XP/Vista Ports quantity 1
Form factor LP/ST I/O ports 1x PCI 32-bit
