Item model number: PCIUSB3S4
  • 4 external SuperSpeed USB 3.0 ports
  • Provides up to 900mA of power over USB 3.0
  • Built-in optional SATA power connector for bus-powered USB devices
  • Backward compatible with USB 2.0/1.x devices
  • Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
  • Compliant with PCI Specification 3.0

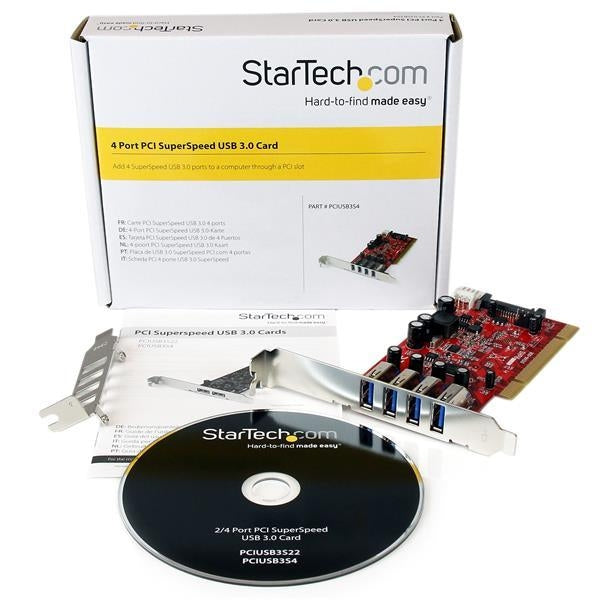

  • Includes a low profile/half-height installation bracket




Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity 4 Output interface USB 3.0
Internal Yes Host interface PCI
Performance
Chipset NEC uPD720202
Design
RoHS compliance Yes Colour of product Red
System requirements
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Storage temperature (T-T) -25 - 70 °C Operating temperature (T-T) 5 - 50 °C
Operational conditions
Operating relative humidity (H-H) 15 - 90%
Weight & dimensions
Width 133 mm Package weight 200 g
Package height 108 mm Height 20 mm
Package depth 222 mm Depth 65 mm
Package width 252 mm Weight 80 g
Other features
Data transfer rate 5 Gbit/s Connectivity technology Wired
Compatible operating systems Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit)
