Item model number: PEX1S553LP
  • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps

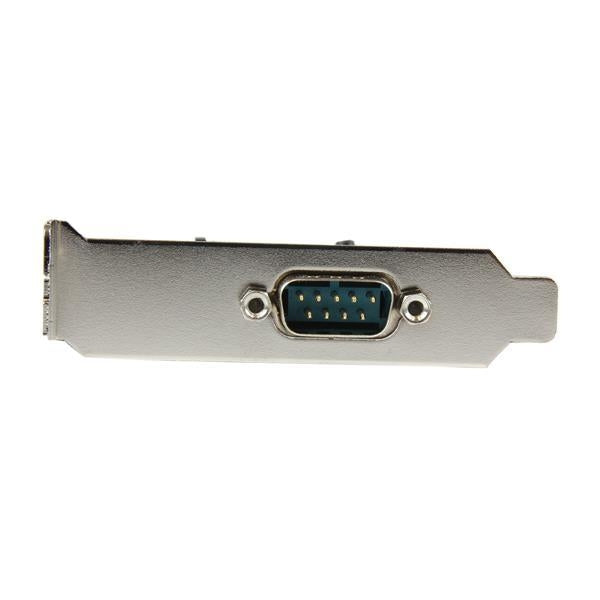

  • Ships with half-height/low profile mounting bracket, includes standard bracket
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Single chip design optimizes speed and reliability
  • Compliant with PCI Express base specifications revision 1.1a
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band software flow control using programmable Xon/Xoff in both directions
  • 128-byte deep FIFO per transmitter and receiver




Ports & interfaces
Peripheral (Molex) power connectors (4-pin) 1 Serial interface type RS-232
PCI version 1.1 Serial ports quantity 1
Output interface Serial Internal Yes
Host interface PCIe
Performance
Baud rate 460.8 Kbit/s FIFO (First In, First Out) 128 B
Chipset ASIX - MCS9922CV-AA
Design
RoHS compliance Yes Colour of product Green
Certification CE, FCC
System requirements
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported Yes Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Other operating systems supported DOS,Windows XP Embedded
Operational conditions
Operating relative humidity (H-H) 5 - 85% Operating temperature (T-T) -10 - 80 °C
Storage temperature (T-T) -20 - 100 °C
Weight & dimensions
Width 80 mm Package weight 200 g
Package height 138 mm Height 20 mm
Package depth 213 mm Depth 105 mm
Package width 38 mm Weight 51.5 g

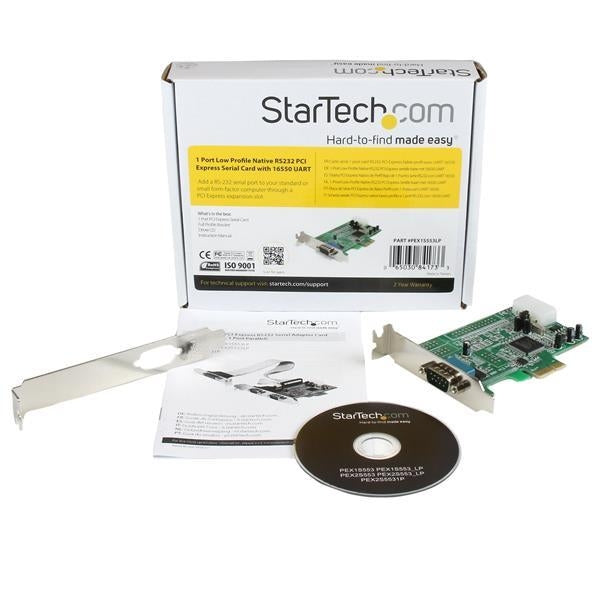

Packaging content
Manual Yes Drivers included Yes
Other features
Data transfer rate 0.46 Mbit/s Connectivity technology Wired
Mac compatibility Yes Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0, Linux, Mac OS 10.4.x
Ports quantity 1
