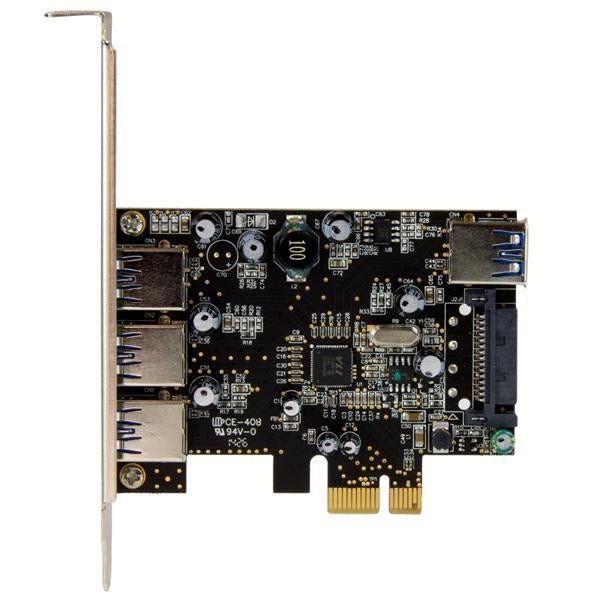

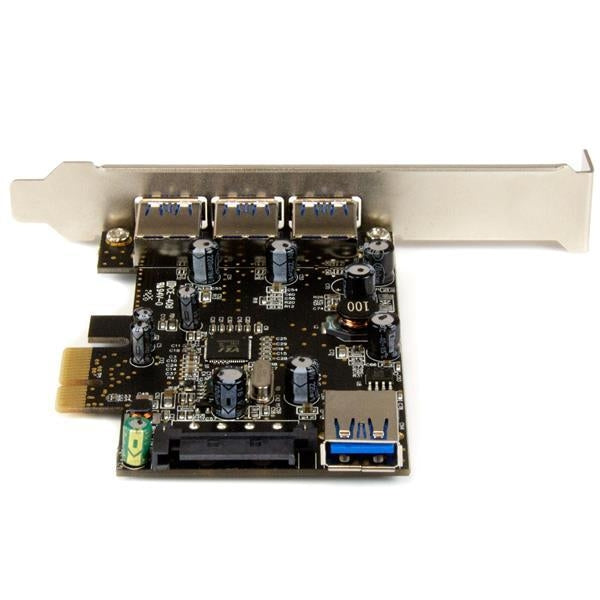

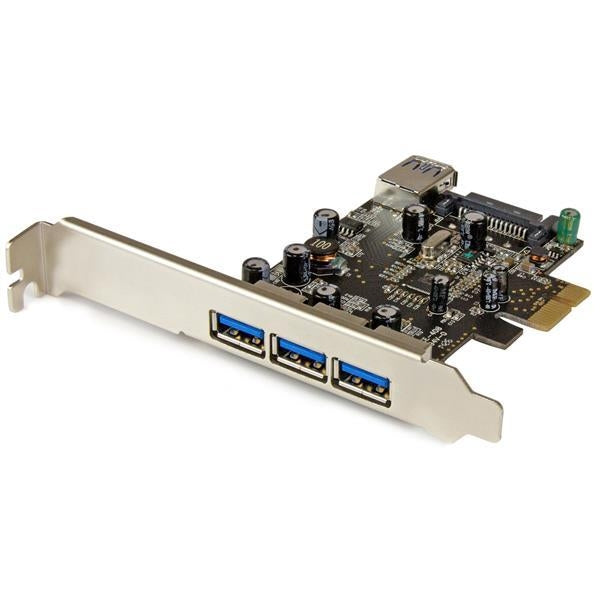

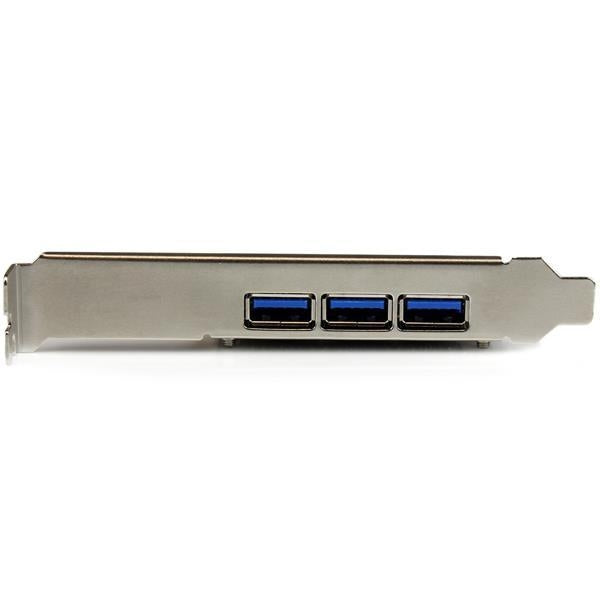

StarTech I/O Cards 4Port PCI Express USB3.0 Card Retail (PEXUSB3S42)

$49.98 CAD
Shipping calculated at checkout.
Item model number: PEXUSB3S42
  • Expands your computer connectivity with four extra USB 3.0 ports (3 external, 1 internal)
  • Easy to install with native OS support in Windows 8.1, 8, 7, and Linux kernel 2.6.31 or later
  • Fits standard or small form-factor computers, low-profile bracket included
  • Data transfer rates up to 5 Gbps plus UASP support
  • Backward compatible with USB 2.0 and 1.x devices
  • Built-in optional SATA power connector provides up to 900mA per USB port
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications




Specification
Ports & interfaces
PCI version 2.0 USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
Output interface USB 3.0 Internal Yes
PCI Card form factor Full-height (low-profile) Host interface PCIe
Performance
Data transfer rate (max) 5 Gbit/s Hot-swap Yes
Maximum cable length 3 m UASP support Yes
Chipset 2 x Renesas / NEC - µPD720202
Design
RoHS compliance Yes Colour of product Black, Stainless steel
Certification CE, FCC
System requirements
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
System requirements
Linux operating systems supported Yes Server operating systems supported Windows Server 2008 R2,Windows Server 2012
Operational conditions
Operating relative humidity (H-H) 20 - 80% Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 15 mm Package weight 200 g
Package height 30 mm Height 120 mm
Package depth 170 mm Depth 167 mm
Package width 142 mm Weight 90 g

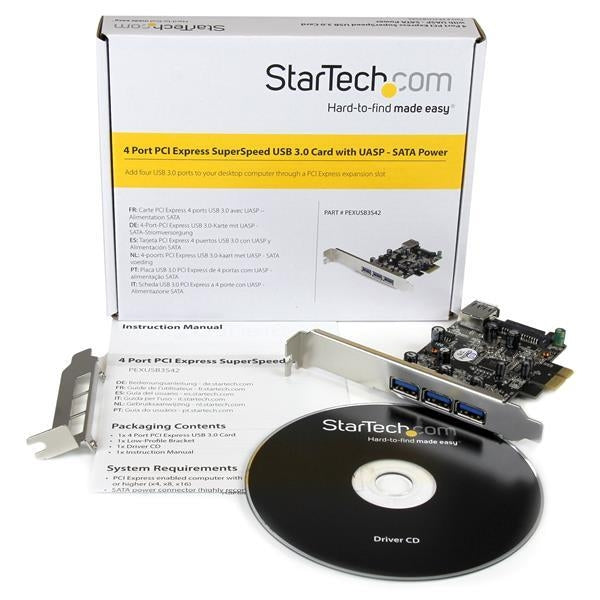

Packaging content
Manual Yes Mounting brackets included Yes
Drivers included Yes
