StarTech.com

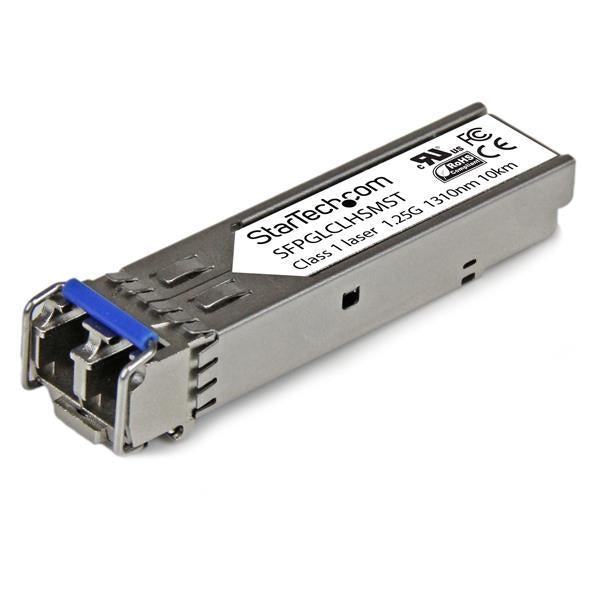

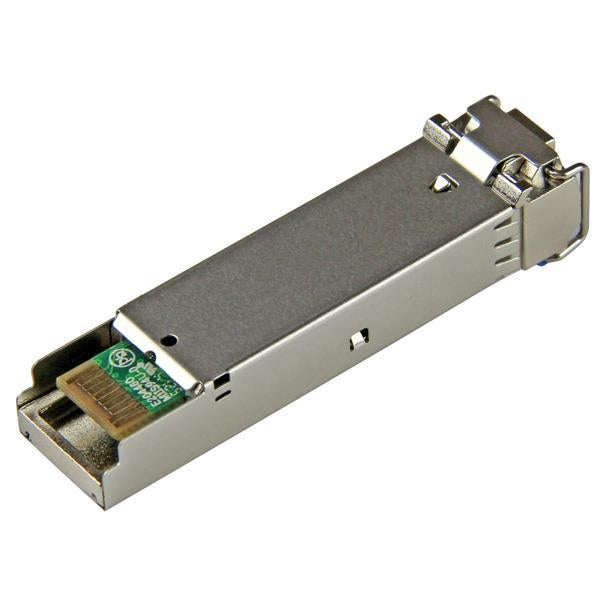

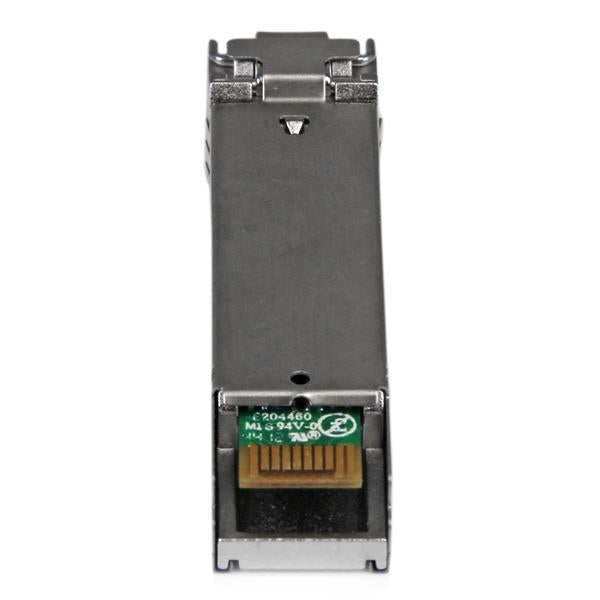

StarTech Gigabit Fiber SFP Transceiver Module - Cisco GLC-LH-SM Compatible - SM/MM LC - 10 km (Mini-GBIC) (SFPGLCLHSMST)
$61.98 CAD
/
Shipping calculated at checkout.
Item model number: SFPGLCLHSMST
- Delivers reliable Gigabit Ethernet connections for 1000Base-LX/LH compliant networks
- 100% Cisco compatible SFP, equivalent to Cisco GLC-LH-SM
- Supports single-mode (10km / 6.2 mi.) and multi-mode (550 m / 1804 ft.)
- Data rates up to 1.25 Gbps
- Complies with SFP Multi-Source Agreements standards (MSA)
- Compatible with Cisco equipment
- LC Fiber connector
- Fully Hot Pluggable
Specification
| Networking | |||
|---|---|---|---|
| Data transfer rate (max) | 1250 Mbit/s | Fiber optic connector | LC |
| SFP transceiver type | LH,LX | Networking standards | IEEE 802.3z |
| Interface type | SFP | ||
| Performance | |||
|---|---|---|---|
| Hot-Plug support | Yes | Wavelength | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | No | Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 10000 m | Colour of product | Stainless steel |
| Duplex system | Full, Half | Cable type | Fiber optic |
| Wavelength-division multiplexing (WDM) | No | ||
| Technical details | |||
|---|---|---|---|
| Full duplex | Yes | ||
| Operational conditions | |||
|---|---|---|---|
| Operating relative humidity (H-H) | 30 - 70% | Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C | ||
| Weight & dimensions | |||
|---|---|---|---|
| Width | 12 mm | Package weight | 95 g |
| Package height | 30 mm | Height | 10 mm |
| Package depth | 115 mm | Depth | 60 mm |
| Package width | 90 mm | Weight | 18 g |
| Certificates | |||
|---|---|---|---|
| Certification | CE, FCC, UL | RoHS compliance | Yes |
| Packaging content | |||
|---|---|---|---|
| Number of products included | 1 pc(s) | ||
