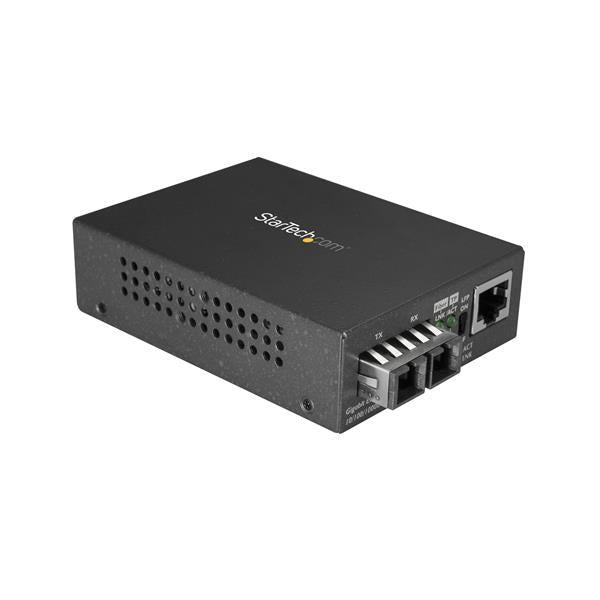

StarTech Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km (MCMGBSCSM10)

$130.98 CAD
Shipping calculated at checkout.
Item model number: MCMGBSCSM10
  • Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks
  • Provides a cost-effective Ethernet to fiber/copper to fiber link
  • Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)

Ethernet interface type Fast Ethernet, Gigabit Ethernet Data transfer rate (max) 1000 Mbit/s
Store-and-forward Yes Jumbo frames 9000
Jumbo frames support Yes Networking standards IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Auto MDI/MDI-X Yes Duplex system Full
Converter output interface 100Base-LX Converter input interface 10Base-T,100Base-TX,1000Base-T
Ethernet LAN data rates 10,100,1000 Mbit/s
Ports & interfaces
Fiber optic connector SC Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1 Connectivity technology Wired
Wavelength 1310 nm Mean time between failures (MTBF) 50000 h
Maximum transfer distance 10000 m Fiber mode structure Single-mode
Wavelength-division multiplexing (WDM) No
LED indicators Activity, Link, Power Internal No
Colour of product Black
Plug type Type N (BR) Output current 2.6 A
Output voltage 5 V External power adapter Yes
Input current 0.5 Input voltage 100 - 240
Packaging content
AC adapter included Yes Quick installation guide Yes
Operational conditions
Operating relative humidity (H-H) 5 - 90% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 70 °C
Certification CE, FCC RoHS compliance Yes
Weight & dimensions
Width 105 mm Package weight 560 g
Package height 66 mm Height 26 mm
Package depth 133 mm Depth 70 mm
Package width 280 mm Weight 196 g
