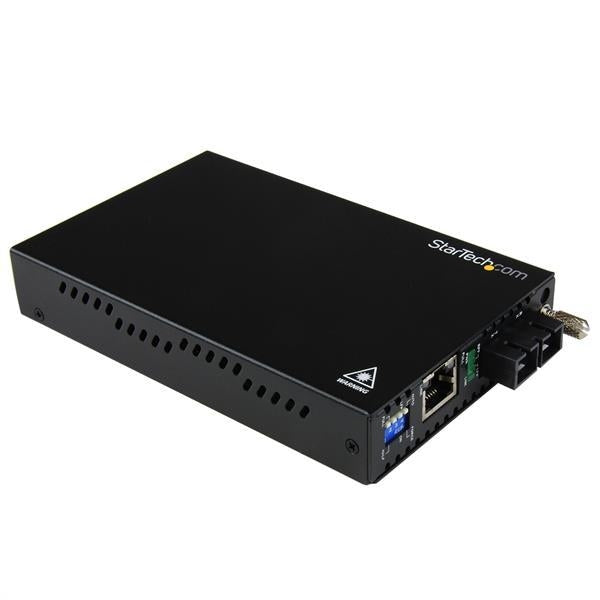

Item model number: ET91000SC2
  • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
  • Cost-effective way to extend/bridge networks using fiber cabling
  • Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
  • Supports a maximum fiber cable length of 550m
  • Supports full or half-duplex operation
  • Quick and simple installation, easy to use




Networking
Ethernet interface type Gigabit Ethernet Data transfer rate (max) 2000 Mbit/s
Auto MDI/MDI-X Yes Duplex system Full, Half
Ports & interfaces
Fiber optic connector SC Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Wavelength 850 nm Mean time between failures (MTBF) 65000 h
Maximum transfer distance 550 m Fiber mode structure Multi-mode
Wavelength-division multiplexing (WDM) No
Design
Housing material Steel Colour of product Black
Internal No
Power
Input current 0.36 Input voltage 115-230
Output voltage 12 V
Power
Plug type Type M Output current 1.6 A
External power adapter Yes Power consumption (typical) 4 W
Packaging content
Manual Yes AC adapter included Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -10 - 70 °C
Certificates
Certification CE, FCC RoHS compliance Yes
Weight & dimensions
Width 90 mm Package weight 900 g
Package height 90 mm Height 25 mm
Package depth 203 mm Depth 150 mm
Package width 135 mm Weight 562 g
