StarTech Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID (SM22BU31C3R)

Item model number: SM22BU31C3R

• Maximize the performance of your M.2 (NGFF) SATA drives with USB 3.1 Gen 2 (10Gbps) connectivity
• Supports RAID 0, RAID 1, JBOD and SPAN (BIG) for optimal performance, capacity and redundancy

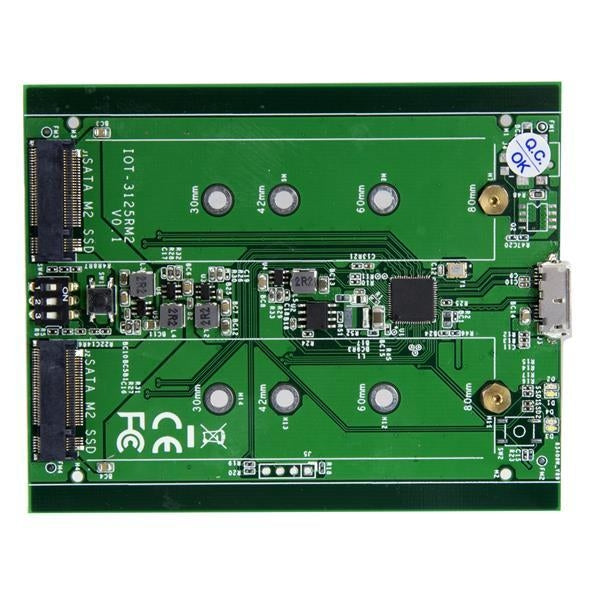

• Supports all common M.2 SATA SSDs, and enables you to mount multiple drive lengths: 30 mm (2230), 42 mm (2242), 60 mm (2260) and 80 mm (2280)
• Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
• Add fast, portable external storage to your USB-C or USB-A enabled laptop, tablet, smartphone or desktop computer
• Supports SSD TRIM to prolong drive lifespan and performance
• Solid aluminum enclosure with SATA I, II, III (up to 6Gbps) support
• Compatible with Thunderbolt 3 USB-C port
• Backward compatible with USB Gen 1 (USB 3.0), USB 2.0, USB 1.x

Specification

Storage
Supported storage drive interfaces	M.2, Serial ATA, Serial ATA II, Serial ATA III	Number of storage drives supported	2
RAID levels	0, 1, BIG, JBOD	Storage drive size	M.2
Maximum capacity	2	Supported storage drive lengths	80 mm

Ports & interfaces
USB ports quantity	1	USB connector gender	Female
USB version	3.1 (3.1 Gen 2)	USB connector type	Micro-USB B
USB connectivity	Yes	Integrated USB cable	No

Design
Product type	SSD enclosure	RoHS compliance	Yes
Material	Aluminium	Colour of product	Black
LED indicators	Yes	Certification	CE, FCC

Performance
UASP support	Yes	Port multiplier	Yes
Data transfer rate	10 Gbit/s	Chipset	ASMedia - ASM1352R
Mean time between failures (MTBF)	35000 h

Power
Power source type	USB

Operational conditions
Operating relative humidity (H-H)	0 - 90%	Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions
Width	80 mm	Package weight	195 g
Package height	30 mm	Height	15 mm
Package depth	160 mm	Depth	100 mm
Package width	130 mm	Weight	96 g

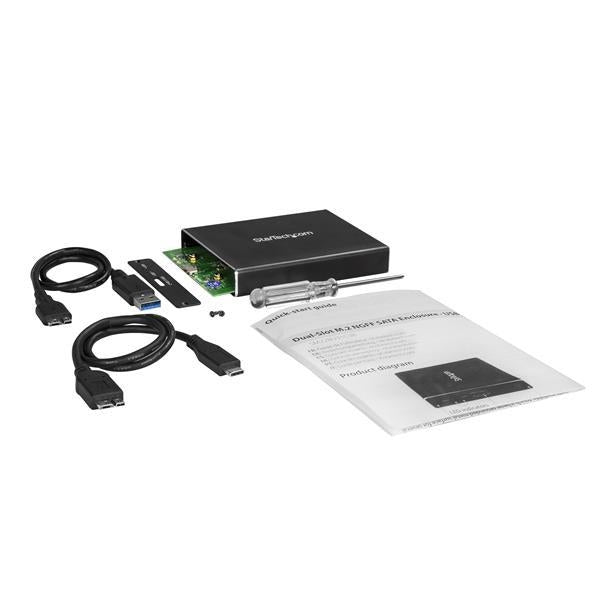

Packaging content
Cables included	USB	Screws included	Yes
Screwdriver included	Yes	Quick installation guide	Yes
