StarTech.com

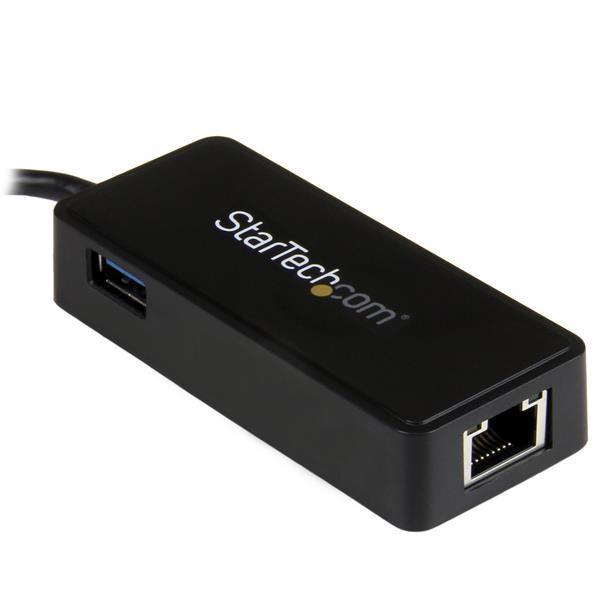

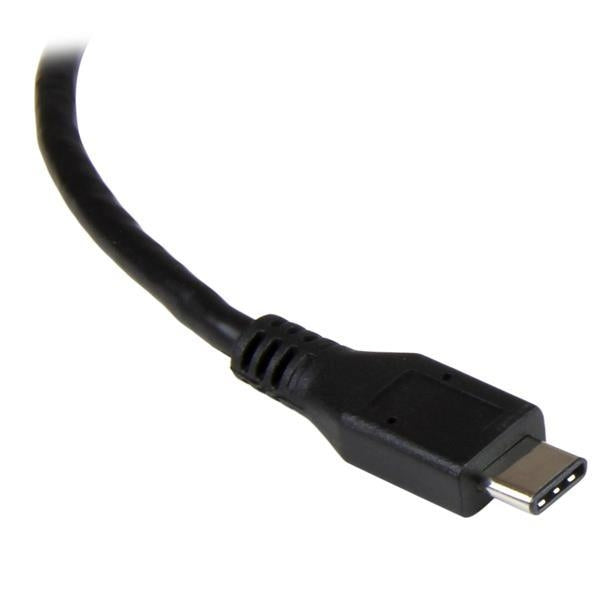

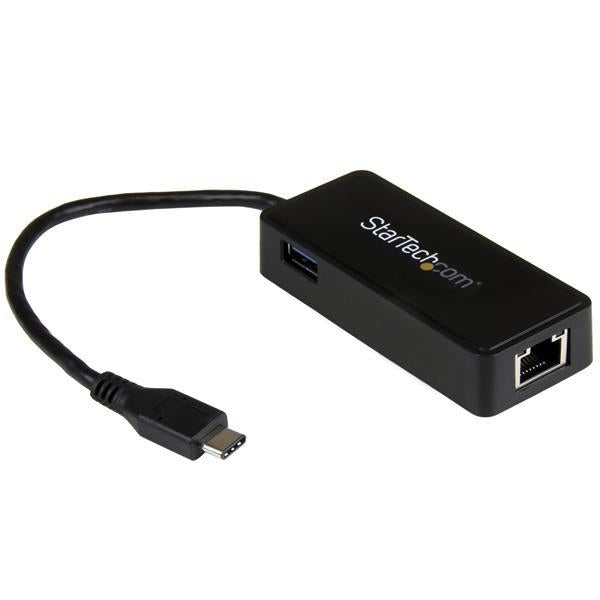

StarTech.com USB-C to Gigabit Network Adapter with Extra USB 3.0 Port (US1GC301AU)
$68.98 CAD
/
Item model number: US1GC301AU
- Add a Gigabit Ethernet network connection to your computer through a USB Type-C port
- Works with the newest MacBook, Chromebook Pixel™and other laptop and desktop computers with a USB-C port
- Thunderbolt 3 port compatible
- Add a USB Type-A port to your computer for connecting an additional peripheral device
- Native driver support in Chrome OS™ and Windows® 8.1 for easy set-up
- Supports Mac OS 10.10 with driver installation
- Powered directly from the USB port
- Compact, lightweight design for maximum portability
- Supports 10/100/1000 Mbps auto-detection
- IEEE 802.3, 802.3u and 802.3ab compatible
- IEEE 802.1Q VLAN Tagging support
- Built-in Checksum and Large Send Offload
- Up to 4K Jumbo Frame support
- Wake-On-LAN support
- IEEE 802.3az Energy Efficient Ethernet support
Specification
Ports & interfaces | |||
---|---|---|---|
Ethernet LAN (RJ-45) ports | 1 | USB 3.0 (3.1 Gen 1) Type-A hub ports quantity | 1 |
USB version | 3.1 (3.1 Gen 2) | Internal | No |
Interface | Ethernet | Connectivity technology | Wired |
Host interface | USB |
Bandwidth | |||
---|---|---|---|
Full duplex | Yes | Data transfer rate (max) | 5000 Mbit/s |
Networking | |||
---|---|---|---|
VLAN tagging | Yes | Cabling technology | 10/100/1000BaseT(X) |
Ethernet LAN | Yes | Jumbo frames | 4000 |
Jumbo frames support | Yes | Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u |
Chipset | Asix AX88179 + VIA VL812 | Ethernet LAN data rates | 10,100,1000 Mbit/s |
Design | |||
---|---|---|---|
Housing material | Plastic | Colour of product | Black |
LED indicators | Activity, Link |
Performance | |||
---|---|---|---|
Wake-on-LAN ready | Yes |
Performance | |||
---|---|---|---|
Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks | USB pass-through | Yes |
Linux operating systems supported | Yes | Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 |
Auto MDIX IEEE | Yes | Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Weight & dimensions | |||
---|---|---|---|
Width | 35 mm | Package weight | 94 g |
Package height | 30 mm | Height | 17 mm |
Package depth | 142 mm | Depth | 275 mm |
Package width | 170 mm | Weight | 38 g |
Certificates | |||
---|---|---|---|
Certification | CE, FCC | RoHS compliance | Yes |
Operational conditions | |||
---|---|---|---|
Operating relative humidity (H-H) | 5 - 80% | Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -10 - 60 °C |
