Item model number: DKT30CHPDW
  • Expand the connectivity of your MacBook Pro, MacBook, Chromebook or other USB-C enabled laptop

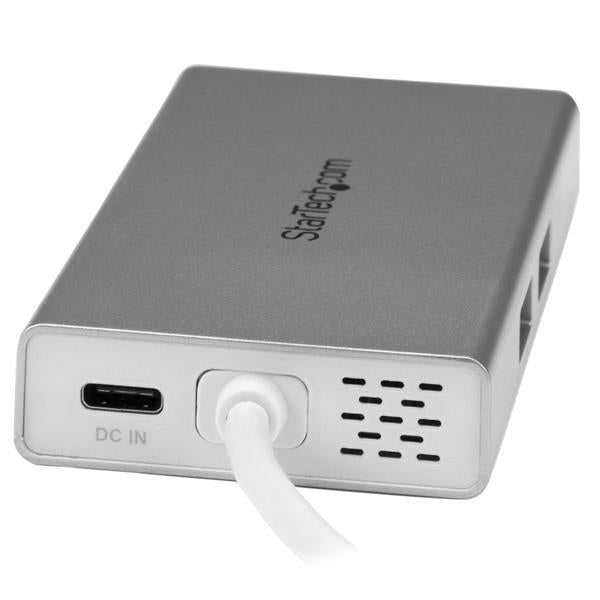

  • Power both the multiport adapter and your laptop simultaneously, using your laptop’s USB-C based power adapter (supports USB Power Delivery 2.0)

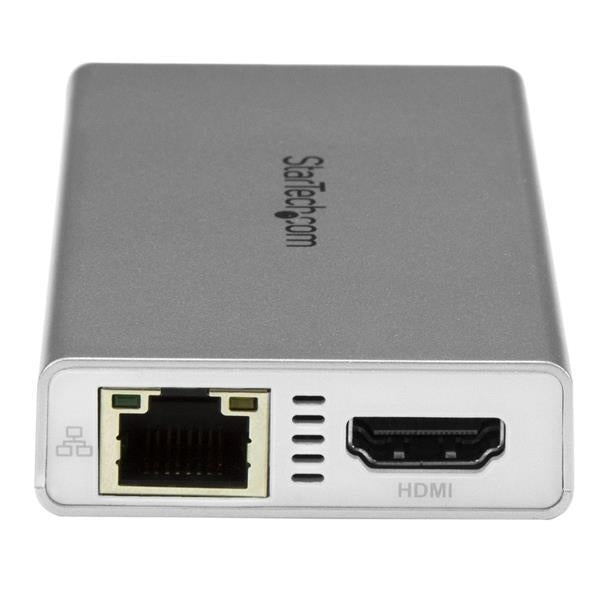

  • Provides 4K Ultra HD (3840 x 2160p) HDMI video output with 30Hz refresh rate, two USB 3.0 ports, and a Gigabit Ethernet port
  • Compact, rugged housing for portability and reliability, with attractive white and silver finish

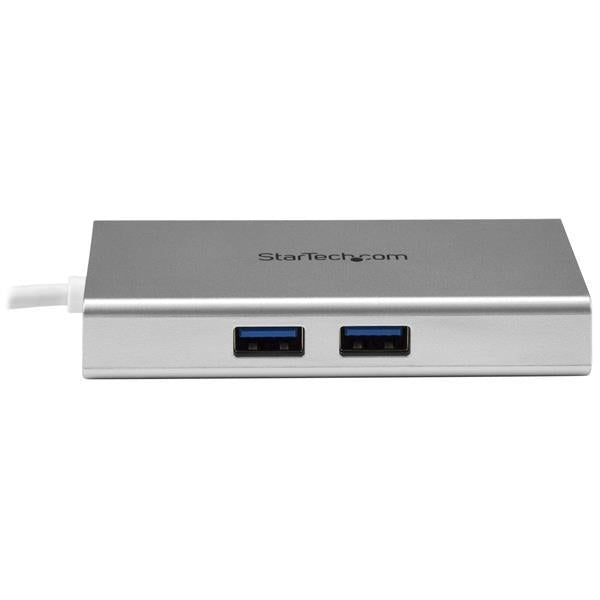

  • Two additional USB Type-A ports let you connect your existing USB devices (backward compatible with USB 2.0 and 1.x devices)

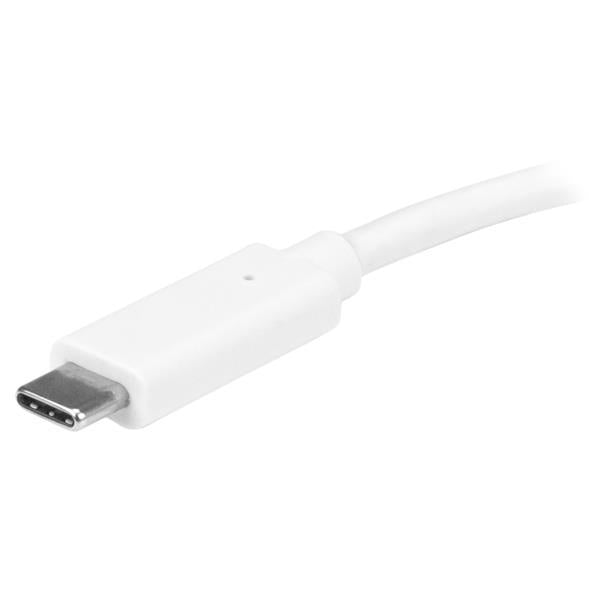

  • Extra length 25 cm (9.84") attached USB-C cable provides greater flexibility
  • Thunderbolt 3 port compatible
  • Supports DP Alt Mode
  • Gigabit Ethernet RJ45 port supports Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet
  • Easy setup with native support in most Windows® and Mac operating systems (also works with Google Chrome OS™)




Ports & interfaces
Microphone in No Ethernet LAN (RJ-45) ports 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 1
USB connector type USB Type-A, USB Type-C DC-in jack Yes
Connectivity technology Cable USB 3.0 (3.1 Gen 1) Type-C ports quantity 1
Host interface USB 3.0 (3.1 Gen 1) Type-C
Networking
Ethernet LAN Yes Wake-on-LAN ready Yes
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u Ethernet LAN data rates 10,100,1000 Mbit/s
Storage
Card reader integrated No
Performance
Full duplex Yes Data transfer rate 5 Gbit/s
Auto MDI/MDI-X Yes Maximum digital resolution 4096 x 2160 pixels
UASP support Yes
Power
Power source type USB
Design
Colour of product Silver, White
Design
Certification CE, FCC Material Plastic
RoHS compliance Yes
Software
Mac operating systems supported Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.9 Mavericks Mac compatibility Yes
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Operational conditions
Operating relative humidity (H-H) 0 - 85% Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 65 °C
Weight & dimensions
Width 51 mm Package weight 193 g
Package height 38 mm Height 16 mm
Package depth 210 mm Depth 96 mm
Package width 145 mm Weight 64 g
Packaging content

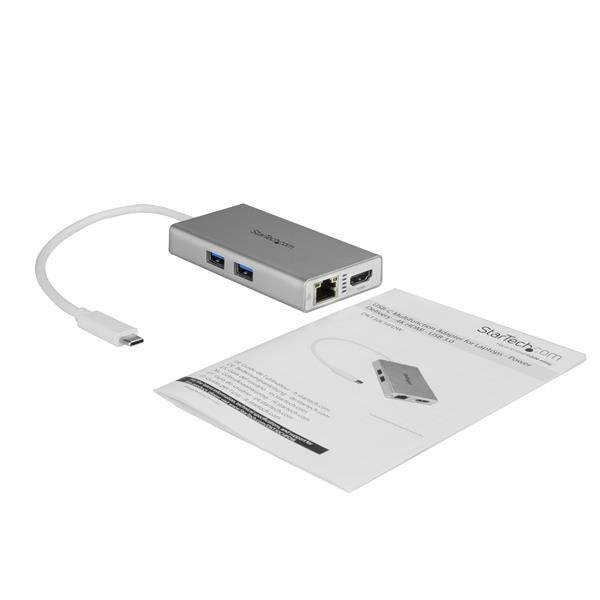

Quick start guide Yes
Other features
Chipset VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179 Cable length 0.348 m
