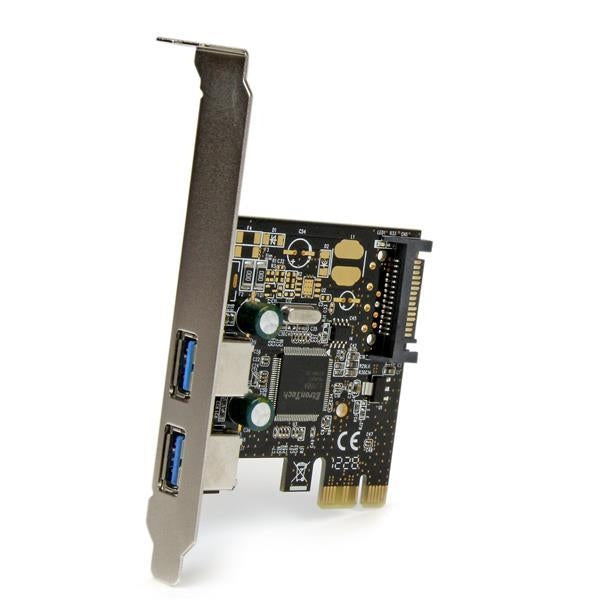

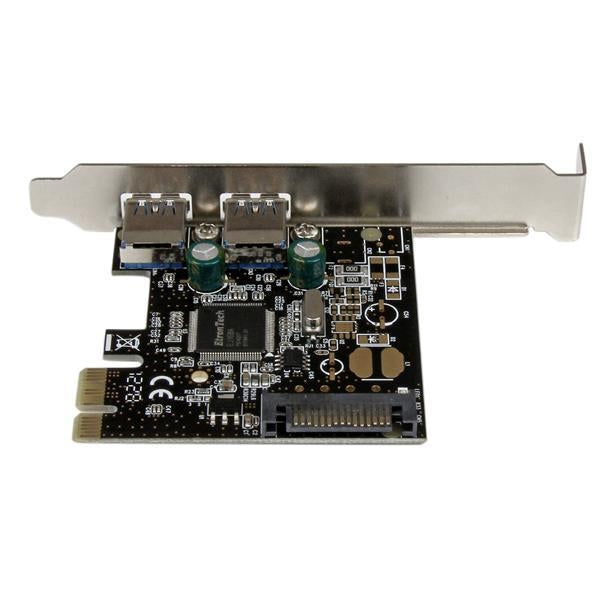

Item model number: PEXUSB3S23
  • Provides two external USB 3.0 connections
  • Supports data rates up to 5 Gbps
  • SATA power connector (required) provides up to 900mA per USB port
  • Compliant with PCI Express 2.0 specifications
  • Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Includes a Low Profile/half-height installation bracket




Ports & interfaces
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2 Output interface USB 3.0
Internal Yes Host interface PCIe
Performance
Data transfer rate (max) 5 Gbit/s
Design
RoHS compliance Yes
System requirements
Server operating systems supported Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) 0 - 80 °C
Weight & dimensions
Width 21 mm Package weight 130 g
Package height 30 mm Height 120 mm
Package depth 142 mm Depth 80 mm
Package width 170 mm Weight 60 g
Packaging content
User guide Yes
