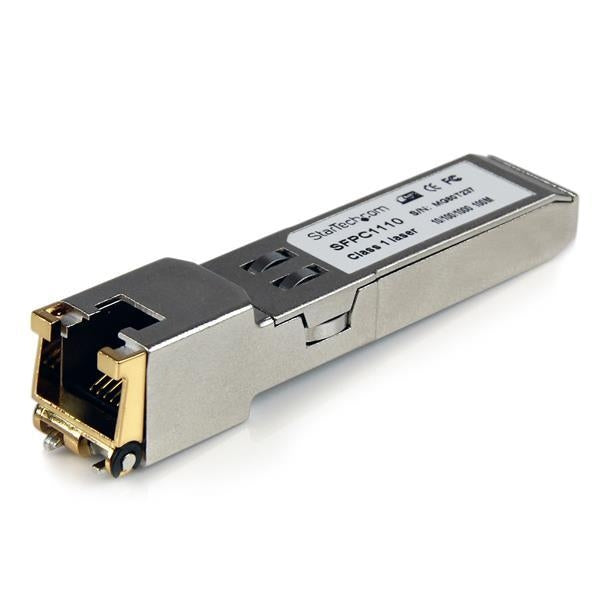

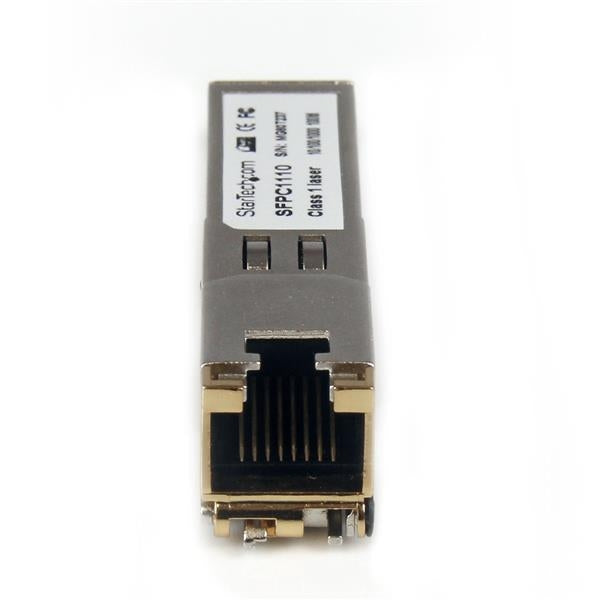

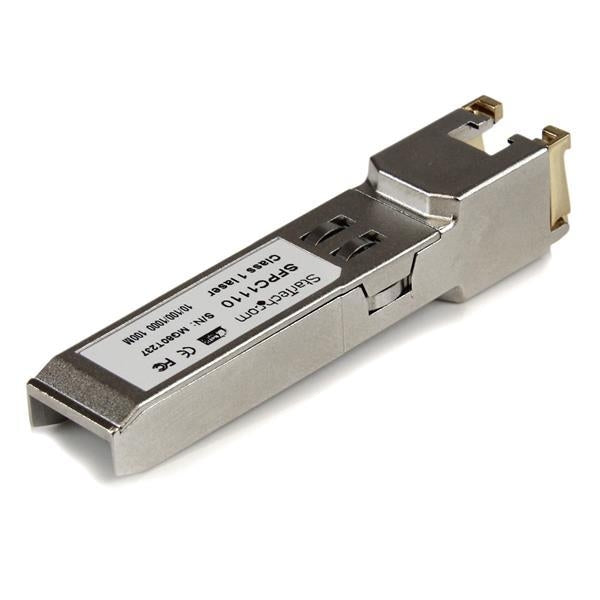

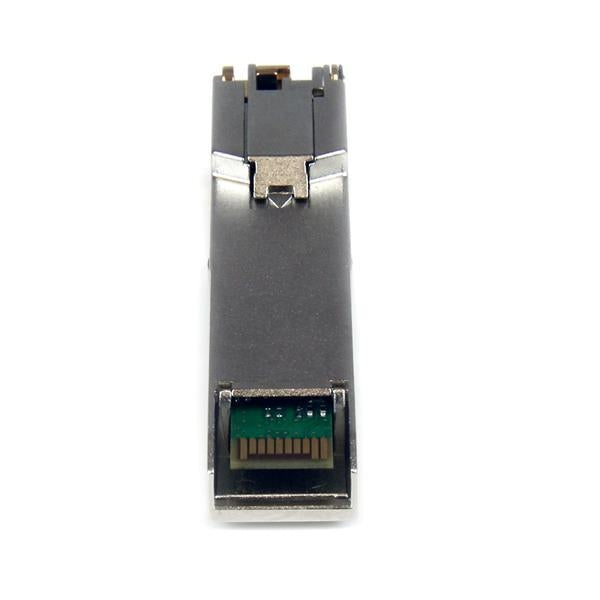

Item model number: SFPC1110
  • Up to 1.25 Gbps bi-directional communication
  • 1000 Mbps Auto-Negotiation
  • Complies with SFP Multi-Source Agreements standards (MSA)
  • RJ45 Ethernet connector
  • Fully Hot Pluggable
  • Auto crossover (MDI / MDI-X) detection
  • Compatible with Cisco equipment




Networking
Cabling technology 1000BASE-T Data transfer rate (max) 1250 Mbit/s
Fiber optic connector SFP Ethernet LAN (RJ-45) ports 1
Networking standards IEEE 802.3ab Interface type SFP
Performance
Hot-Plug support Yes Digital Diagnostics Monitoring (DDM) Yes
Auto MDI/MDI-X Yes Maximum transfer distance 100 m
Colour of product Silver Auto-negotiation Yes
Cable type Copper
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Operational conditions
Operating relative humidity (H-H) 30 - 70% Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 13 mm Package weight 100 g
Package height 30 mm Height 13 mm
Package depth 118 mm Depth 70 mm
Package width 90 mm Weight 21 g
Certificates
Certification CE, FCC, UL RoHS compliance Yes
Packaging content
Number of products included 1 pc(s)
